Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the extension housing assembly vent tube.
  2. Connect the vent hose (2) to the retaining bracket on the transfer case assembly.
  3. Install the vent hose clamp (1) to the extension housing assembly.
  4. Lower the vehicle.

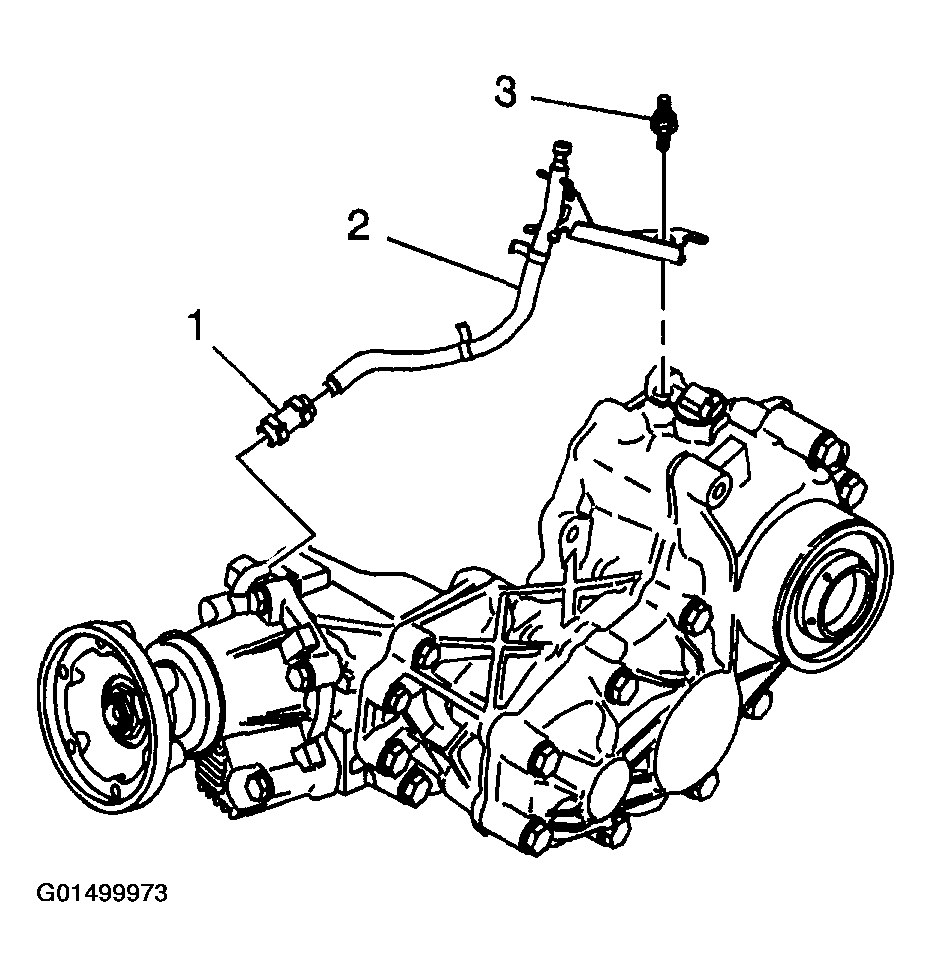

    Fig 1: Connecting Vent Hose Retaining Bracket
    G01499973Courtesy of GENERAL MOTORS CORP.
