Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the fill plug (2) and gasket.
  3. Place a container under the drain plug (1) in order to catch the oil.
  4. Remove the drain plug and gasket. Allow the oil to drain.

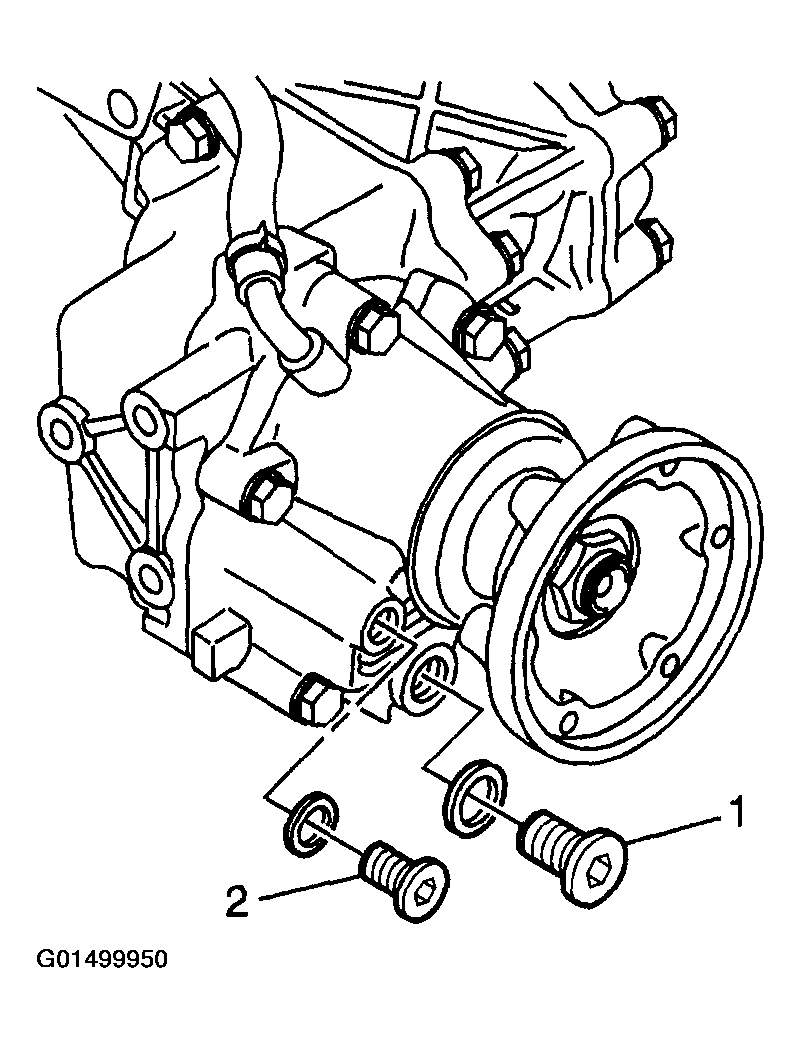

    Fig 1: Removing Fill Plug And Gasket
    G01499950Courtesy of GENERAL MOTORS CORP.
