Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the transaxle brace.
Install the transaxle brace bolts.
Tighten

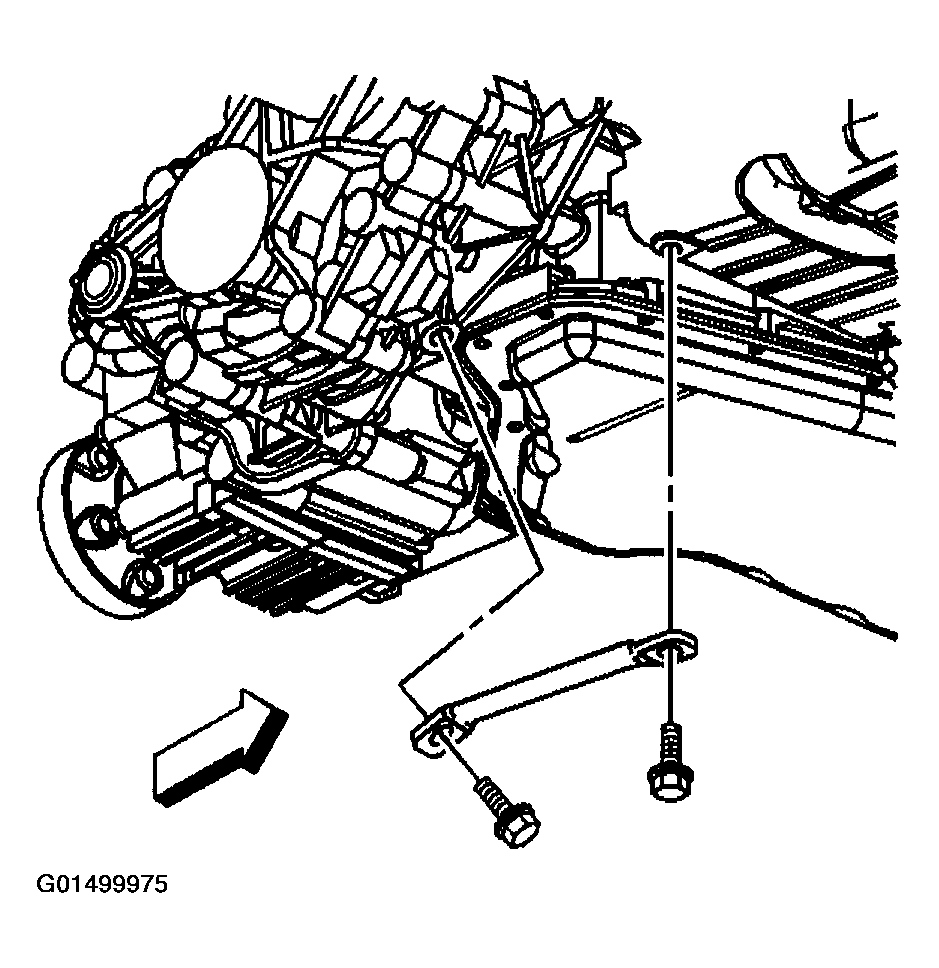

Fig 1: Installing Transaxle Brace Bolts And Brace
Courtesy of GENERAL MOTORS CORP.

Tighten the bolts to 47 N.m (35 lb ft).
Lower the vehicle.

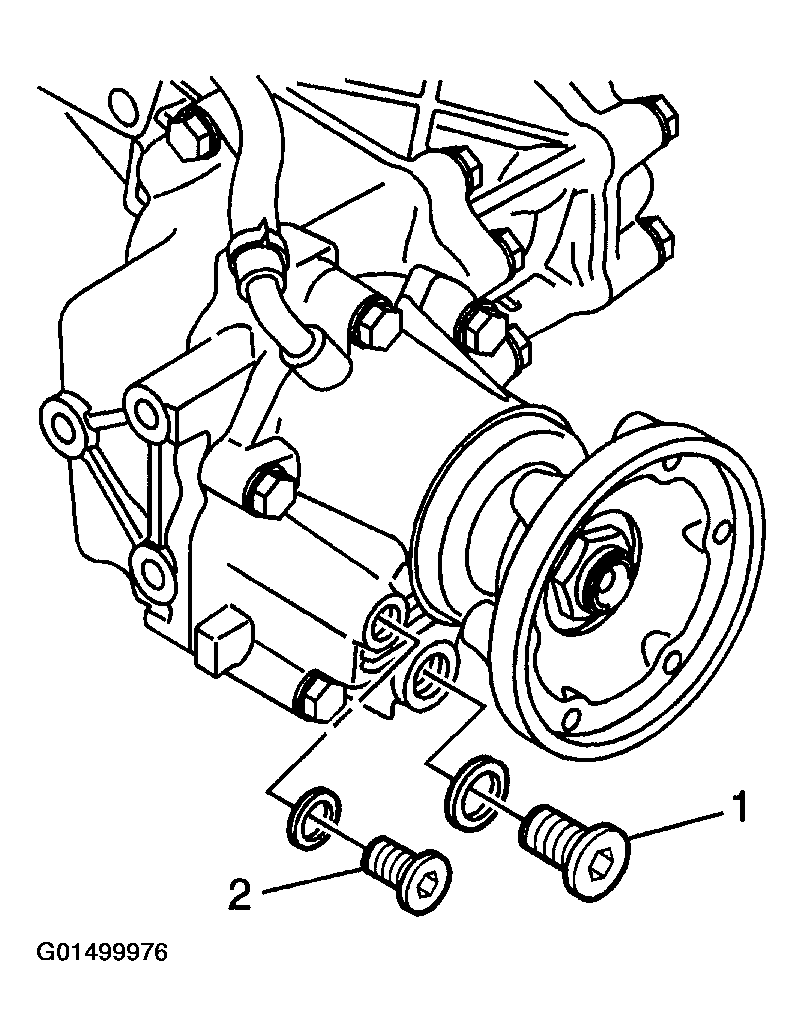

Fig 2: Removing Drain Plug And Oil Seal
Courtesy of GENERAL MOTORS CORP.
