Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the hub and bearing assembly (1) to the vehicle. Refer to REAR WHEEL BEARING/HUB REPLACEMENT (FWD -- DRUM) in Rear Suspension.

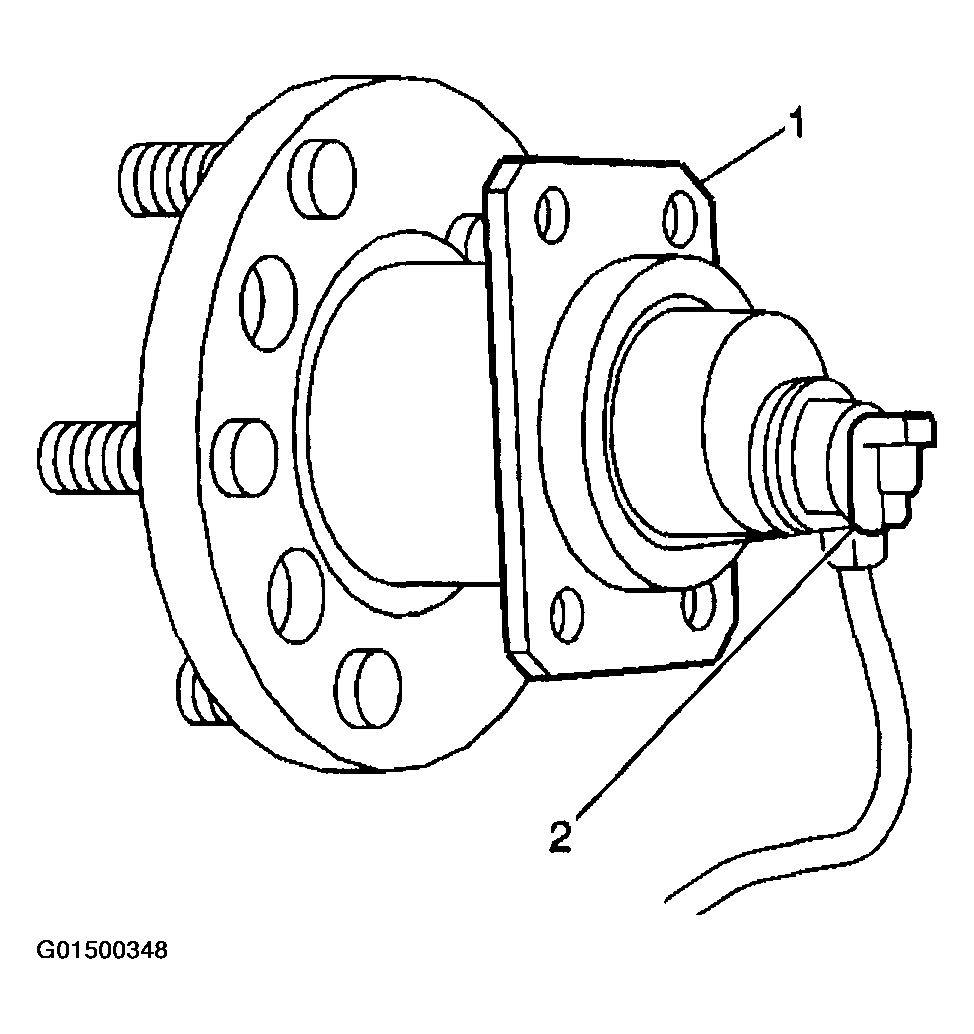

Fig 1: Installing Hub & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
Install the rear wheel speed sensor electrical connector.
Install the wheel and tire assembly.
Lower the vehicle.
Turn the ignition switch to the RUN position with the engine off.
Perform the DIAGNOSTIC SYSTEM CHECK - ABS .

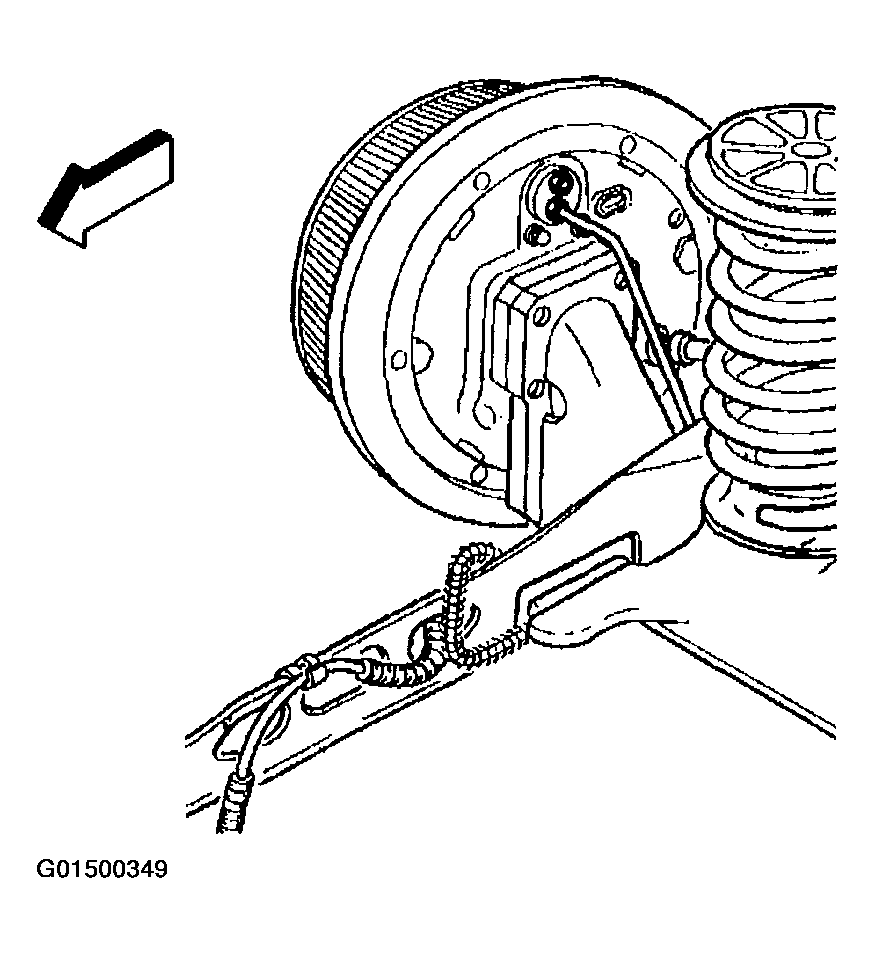

Fig 2: Installing Rear Wheel Speed Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.
