Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel bearing/hub.
    CAUTION: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.
  2. Install the NEW wheel bearing/hub bolts.

    Tighten

    Tighten the NEW wheel bearing/hub bolts to 85 N.m (63 lb ft).

  3. Connect the drive axle to the wheel bearing/hub.
  4. Install the wheel speed sensor electrical connector to the connector bracket.

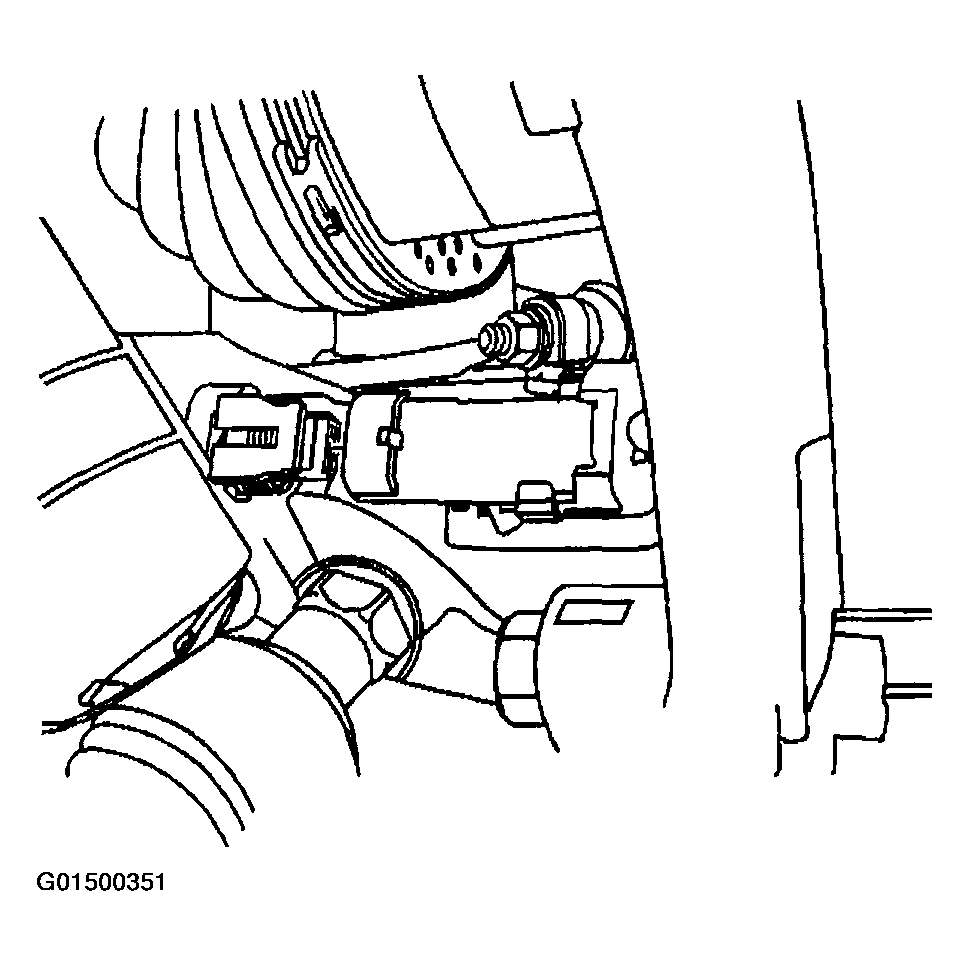

    Fig 1: Installing Rear Wheel Speed Sensor
    G01500351Courtesy of GENERAL MOTORS CORP.
  5. Connect the wheel speed sensor electrical connector.
  6. Install the brake rotor.
  7. Install the brake caliper bracket.
  8. Install the brake caliper.
  9. Install the tire and wheel.
  10. Lower the vehicle.
