Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

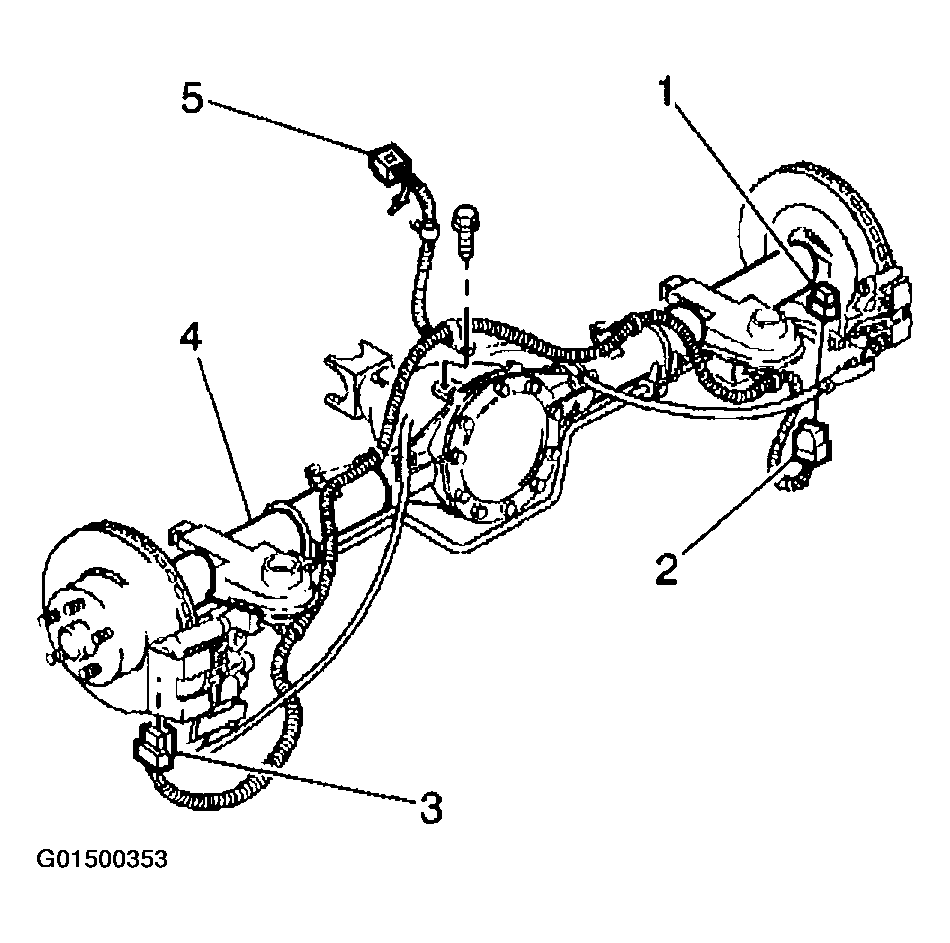

- Install the upper jumper harness connector from the rear body pass-thru connector.
- Install the jumper harness grommet to the retainer.
- Install the wheel speed sensor connectors (2,3).
Courtesy of GENERAL MOTORS CORP.
