Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle on a suitable hoist.
  2. Disconnect the rear wheel speed jumper harness connector at the pass-through connector.

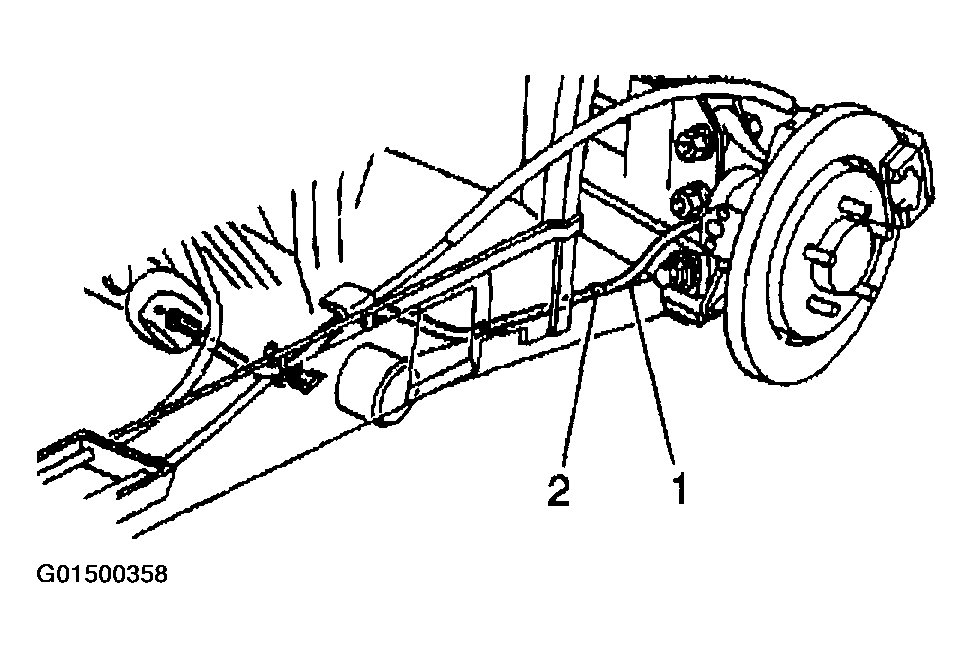

  3. Remove the rear wheel speed sensor jumper harness (1) from the retaining clips (2).
    Fig 1: Removing Rear Wheel Speed Sensor Jumper Harness
    G01500358Courtesy of GENERAL MOTORS CORP.

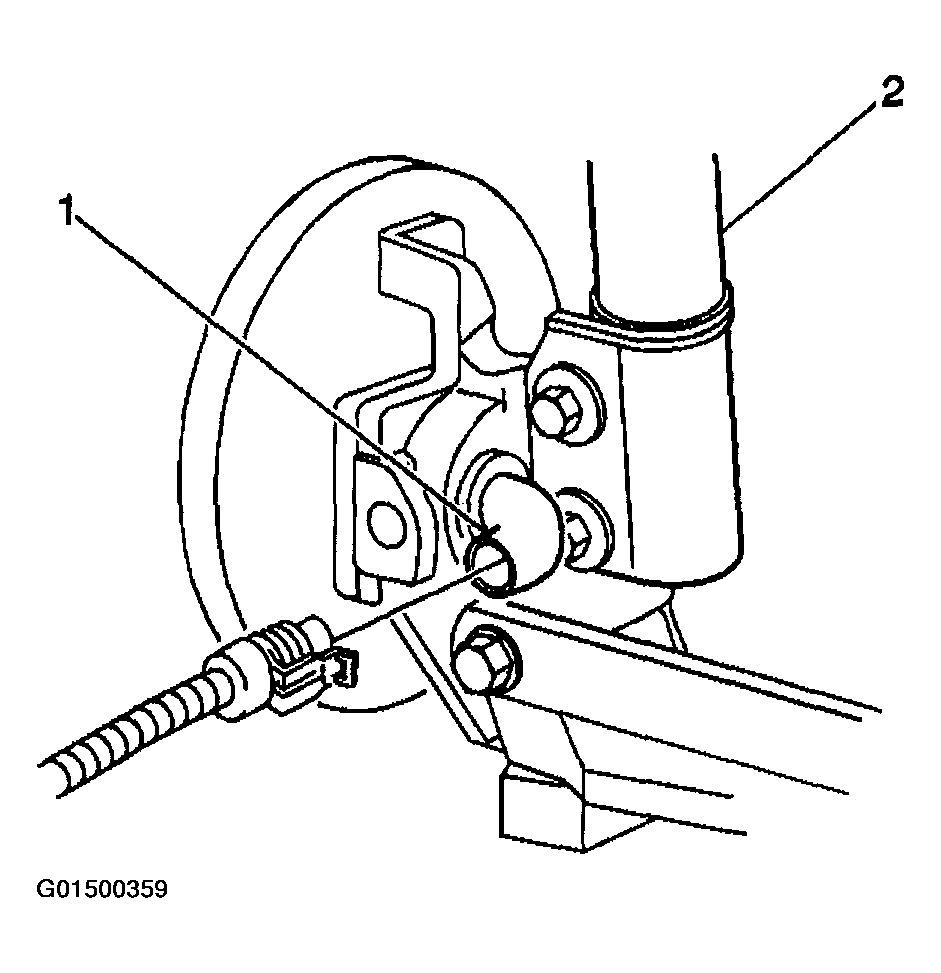

  4. Disconnect the rear wheel speed sensor jumper harness connector (1) from the wheel speed sensor, located next to the rear strut (2).
  5. Remove the rear wheel speed sensor jumper harness.
Fig 2: Disconnecting Rear Wheel Speed Sensor Jumper Harness Connector
G01500359Courtesy of GENERAL MOTORS CORP.
