Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the rear wheel speed sensor jumper harness connector (1) to the wheel speed sensor, located next to the rear strut (2).

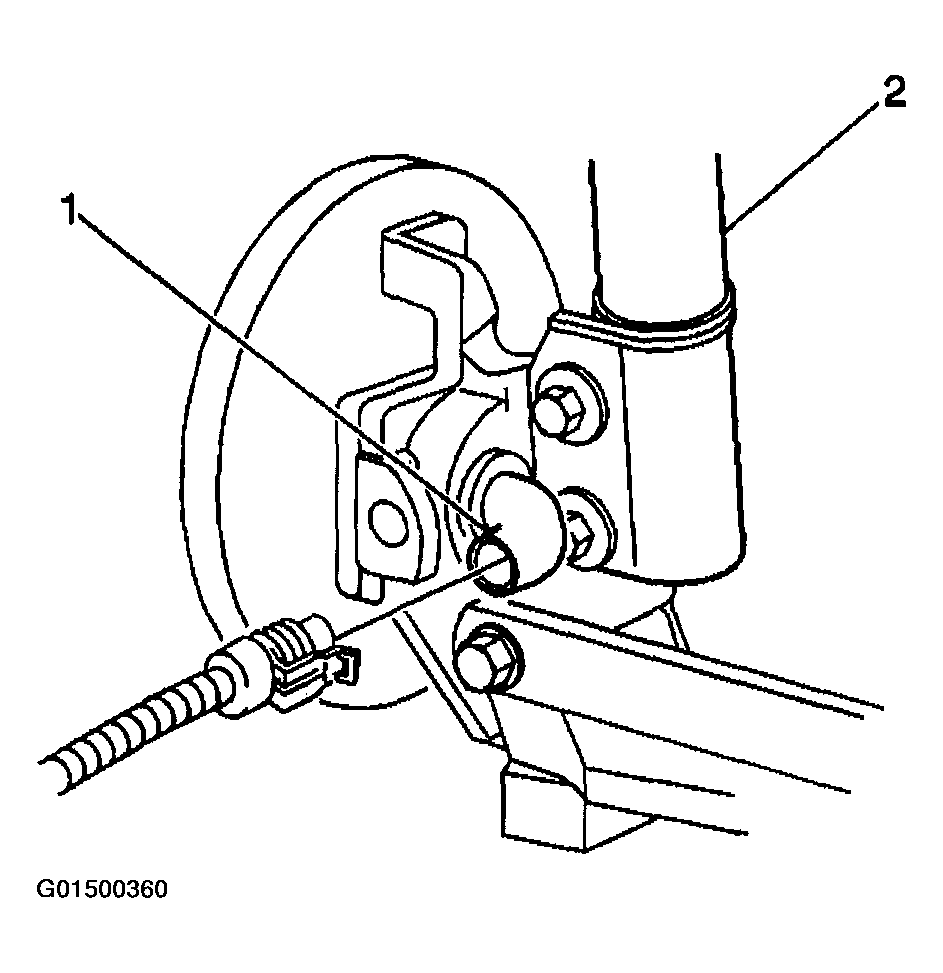

    Fig 1: Connecting Rear Wheel Speed Sensor Jumper Harness Connector
    G01500360Courtesy of GENERAL MOTORS CORP.
  2. Install the rear wheel speed jumper harness (1) into the retaining clips (2).
  3. Connect the rear wheel speed sensor jumper harness connector to the pass-through connector.
  4. Lower the vehicle.
  5. Turn the ignition switch to the RUN position, with the engine off.
  6. Perform the diagnostic system check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS  .

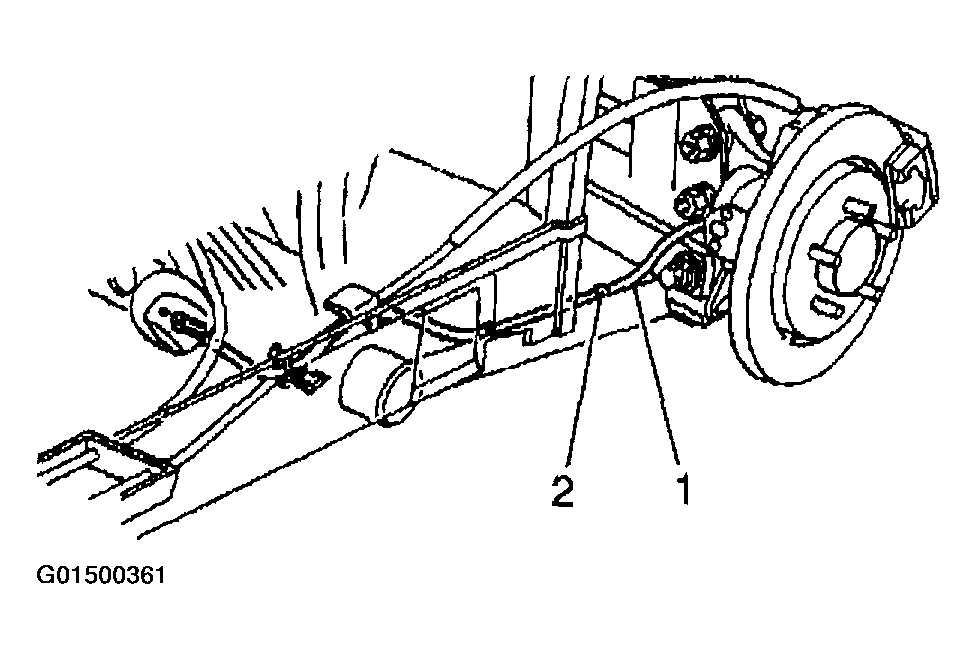

Fig 2: Installing Rear Wheel Speed Jumper Harness
G01500361Courtesy of GENERAL MOTORS CORP.
