Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the front wheel speed sensor jumper harness to ABS harness connector (8).
  2. Raise and support the vehicle on a suitable hoist.
  3. Remove the harness (4) from the splash shield retaining clip (5).
  4. Remove the harness (4) from the control arm retaining clips (3).

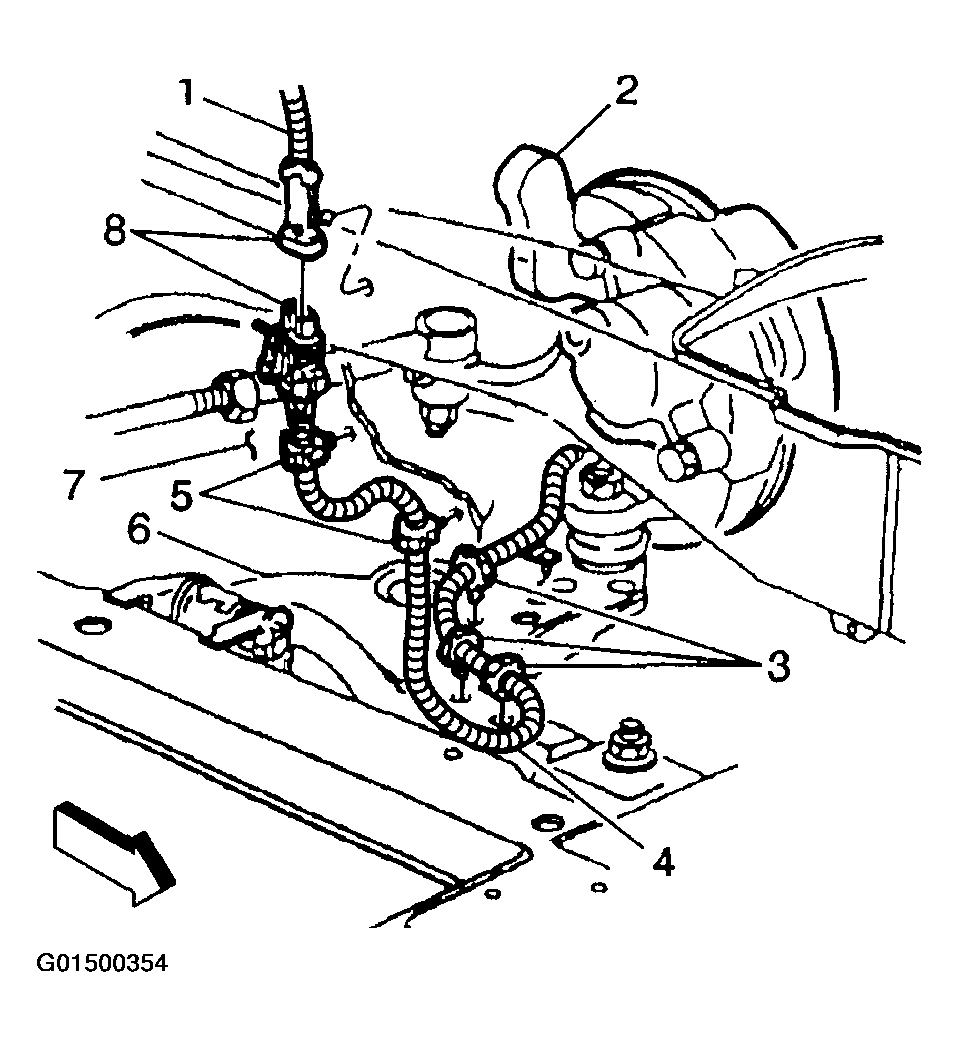

    Fig 1: Removing Front Wheel Speed Sensor Jumper Harness
    G01500354Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the front wheel speed jumper harness connector (2) from the front wheel sensor.
  6. Remove the front wheel speed sensor jumper harness (1).

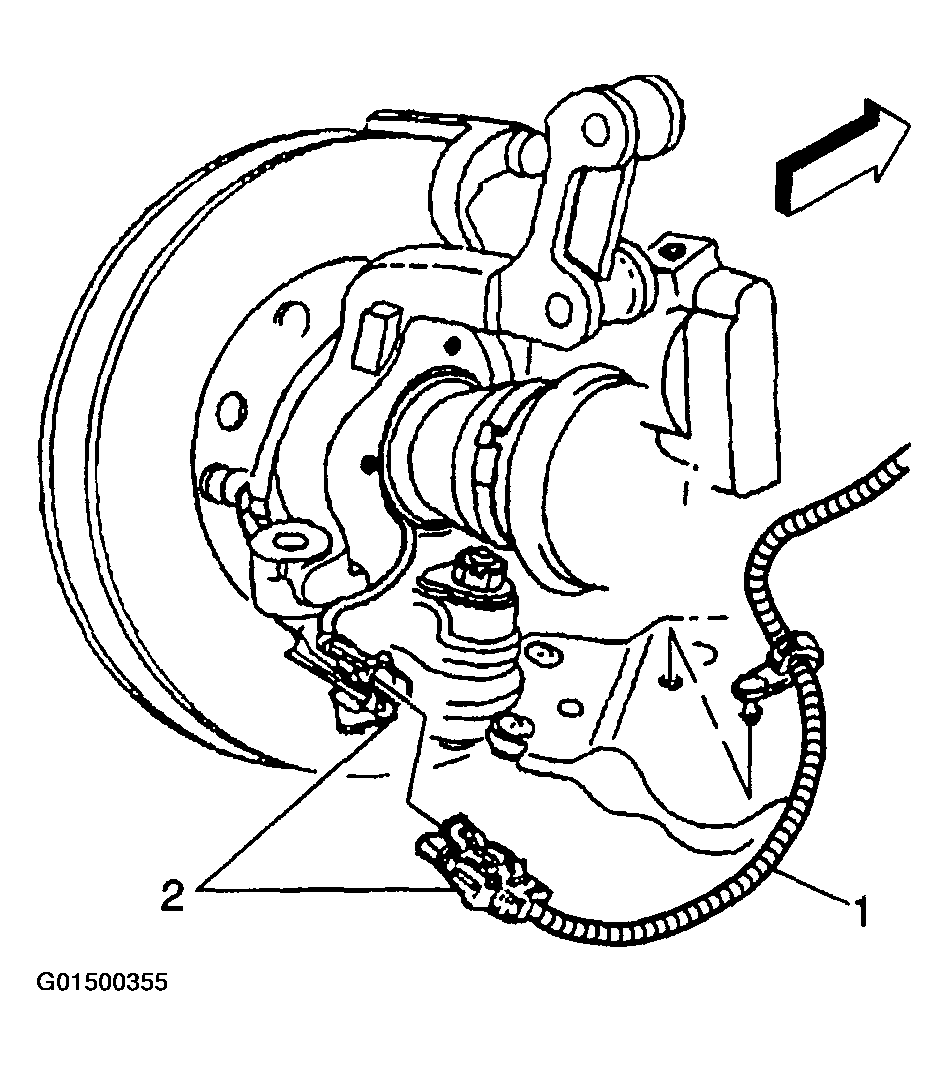

Fig 2: Removing Front Wheel Speed Sensor Jumper Harness From Sensor
G01500355Courtesy of GENERAL MOTORS CORP.
