Pressure Switch Manifold: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the new pressure switch manifold assembly (2) in position and install one bolt (1) in a recessed location to hold it into position.
  2. Start the remaining 4 bolts (1) in recessed locations and tighten the bolts by hand. Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Connect the internal wiring harness connector to the pressure switch assembly. Install the reverse signal tube (1). Install 2 bolts (2). Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  4. Install the oil pan and suction filter. See INTERNAL FILTER REPLACEMENT  under LUBRICATION.
Fig 1: Removing & Installing Reverse Signal Tube
G00092197Courtesy of GENERAL MOTORS CORP.

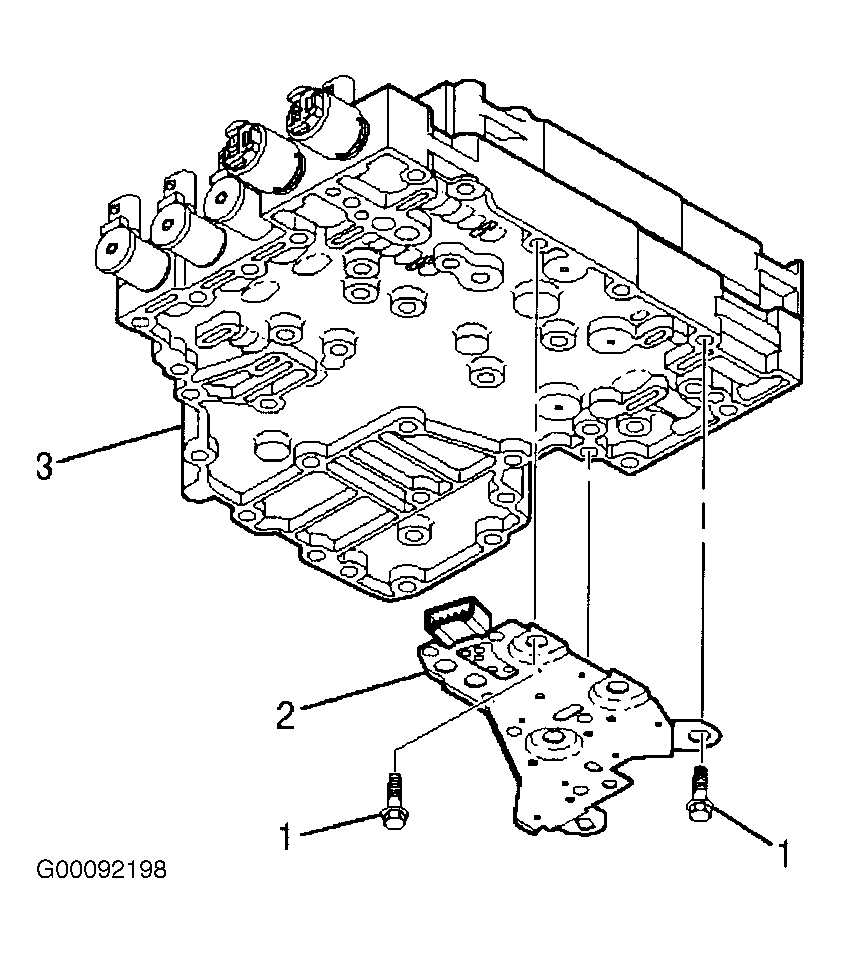

Fig 2: Removing & Installing Pressure Switch Manifold Assembly
G00092198Courtesy of GENERAL MOTORS CORP.
