Filler Tube & Seal (8.1L): Installation
WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new fill tube plug seal (2) into the main housing. Align the tab on the fill tube plug (1) with the tang on the main housing. Install the fill tube plug (1). See Fig 2 .
- Press the plug into the seal (2) until the tab on the fill tube plug locks into place in the notch on the main housing. Install the new fill tube seal to the transmission. See Fig 1 .

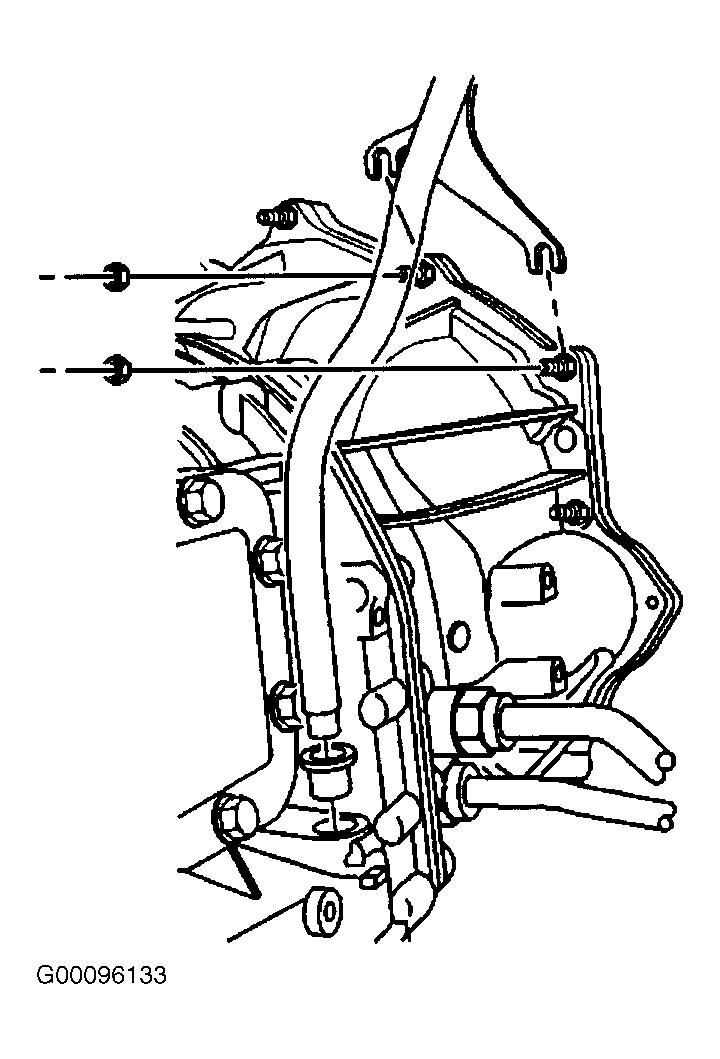

- Install the fill tube to the transmission. Ensure the fill tube bracket is positioned properly on the studs. See Fig 1 .
- Install the fill tube bracket nuts to the studs. See Fig 1 . Tighten the fill tube bracket nuts to specification. See TORQUE SPECIFICATIONS . Lower the vehicle. Fill the transmission with appropriate fluid to proper level. See LUBRICATION .
