Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place vehicle on alignment machine with rear wheels supported by Weaver plates.
  2. Loosen rear lower control arm mounting nuts (3, 4).
  3. Adjust camber with cam bolt (1).
  4. Confirm correct camber value.
  5. Check toe alignment and adjust if required.

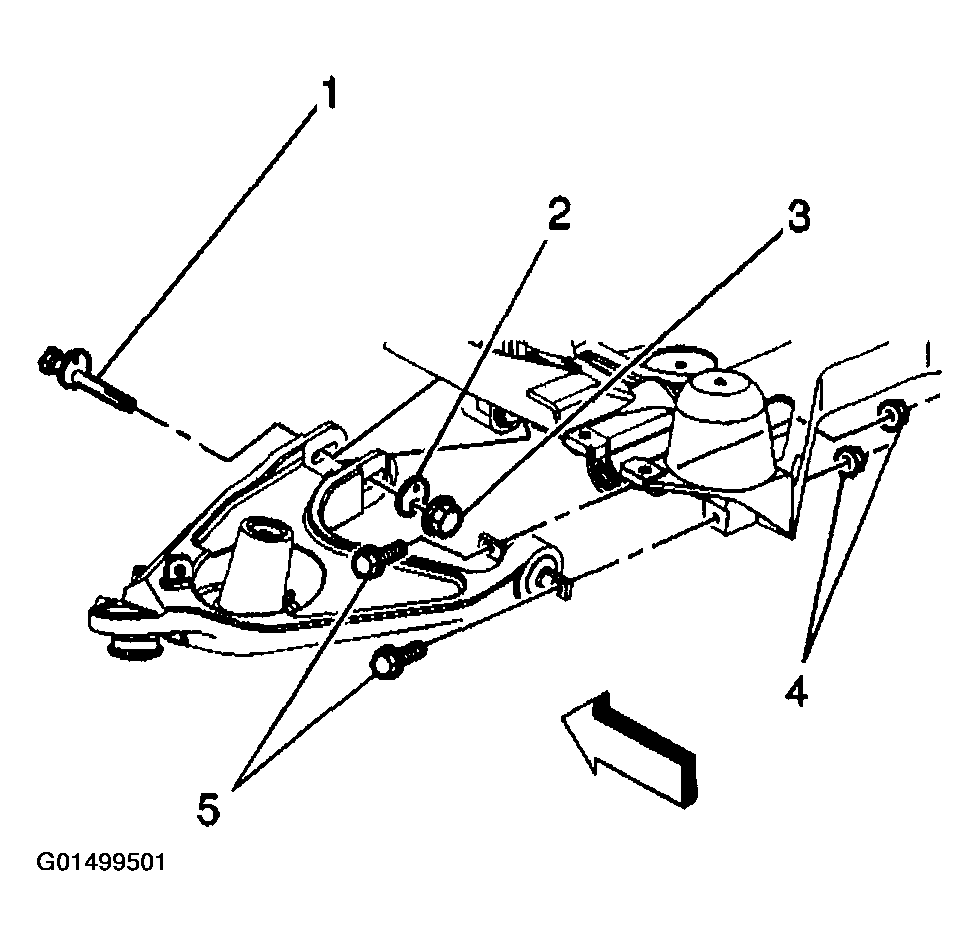

    Fig 1: Loosening Rear Lower Control Arm Mounting Nuts
    G01499501Courtesy of GENERAL MOTORS CORP.
