Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tie rod ball stud nut.

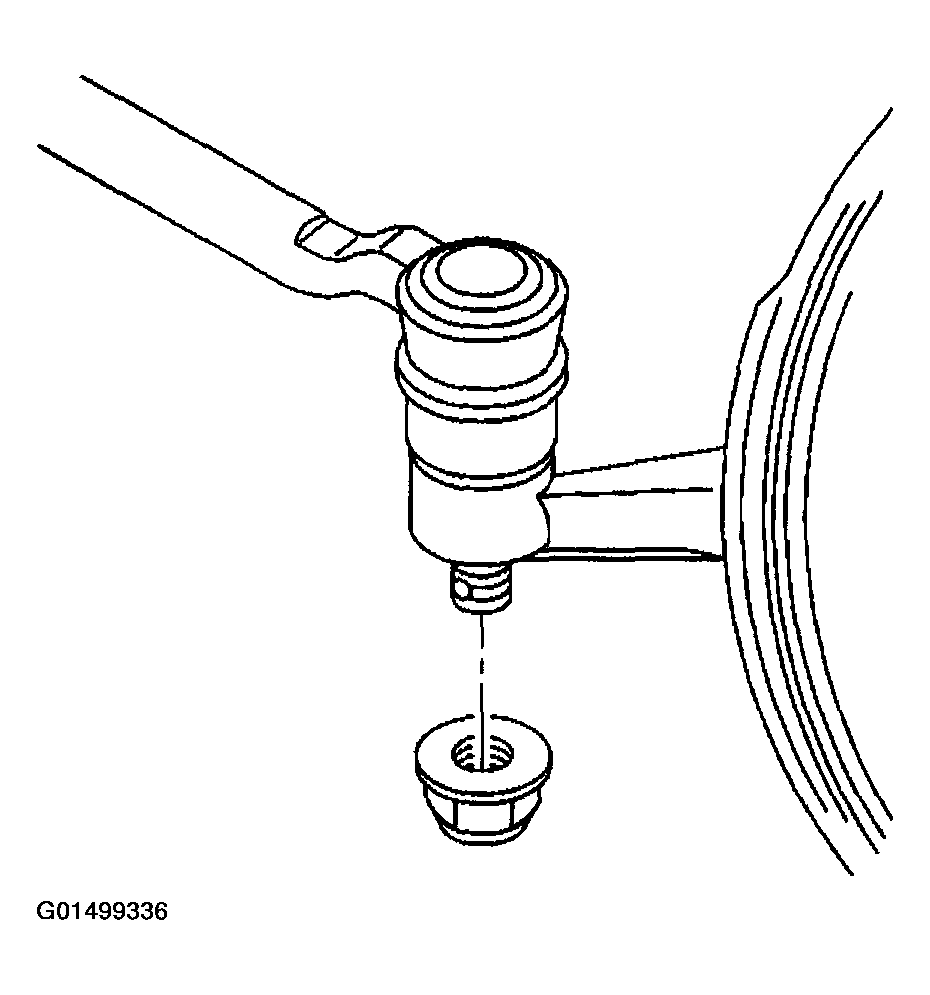

Fig 1: Removing Tie Rod Ball Stud Nut
Courtesy of GENERAL MOTORS CORP.

NOTE: Do not attempt to free the ball stud by using a pickle fork or wedge type tool, because seal or bushing damage could result. Use the proper tool to separate all ball joints.
Use the J 24319-B in order to separate the outer tie rod (1) from the steering knuckle (2).

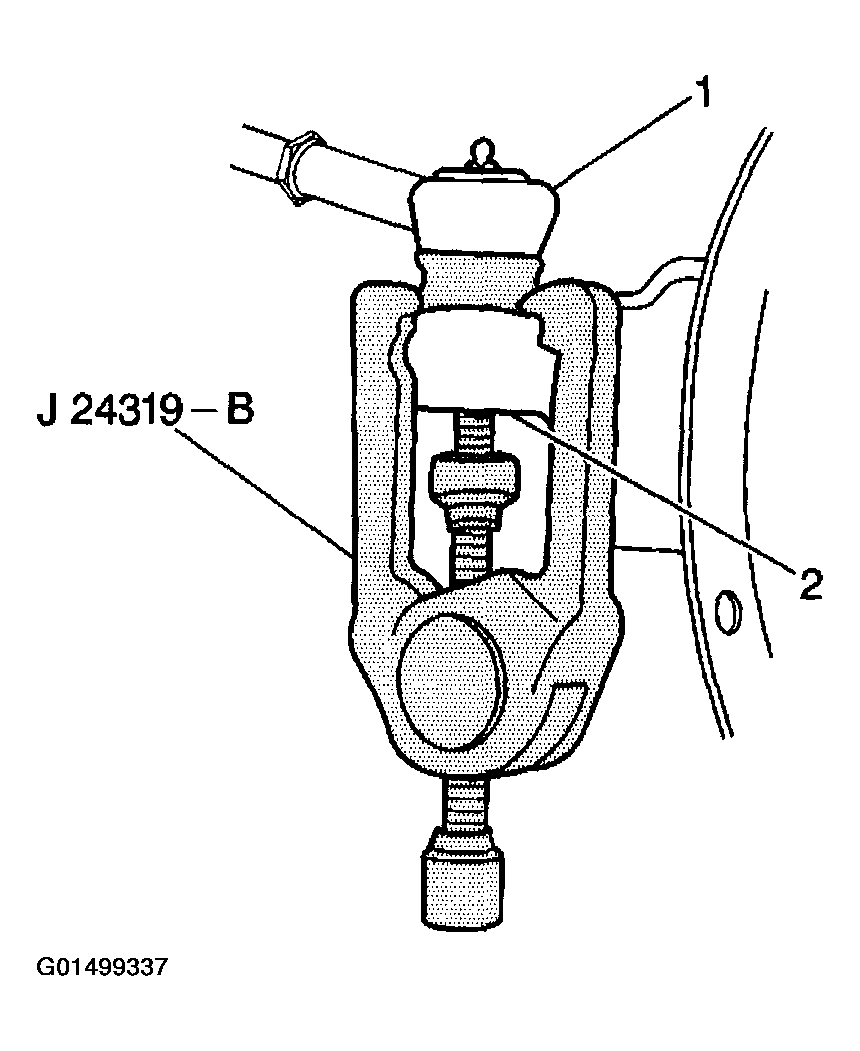

Fig 2: Separating Outer Tie Rod From Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
Loosen the tie rod jam nut (2).

Fig 3: Loosening Tie Rod Jam Nut
Courtesy of GENERAL MOTORS CORP.
Remove the outer tie rod (3) from the inner tie rod (1).

Fig 4: Removing Outer Tie Rod From Inner Tie Rod
Courtesy of GENERAL MOTORS CORP.
