Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump from the engine for clearance. Refer to POWER STEERING PUMP REPLACEMENT  .
  2. Use the J 25034-C  in order to remove the pump pulley.

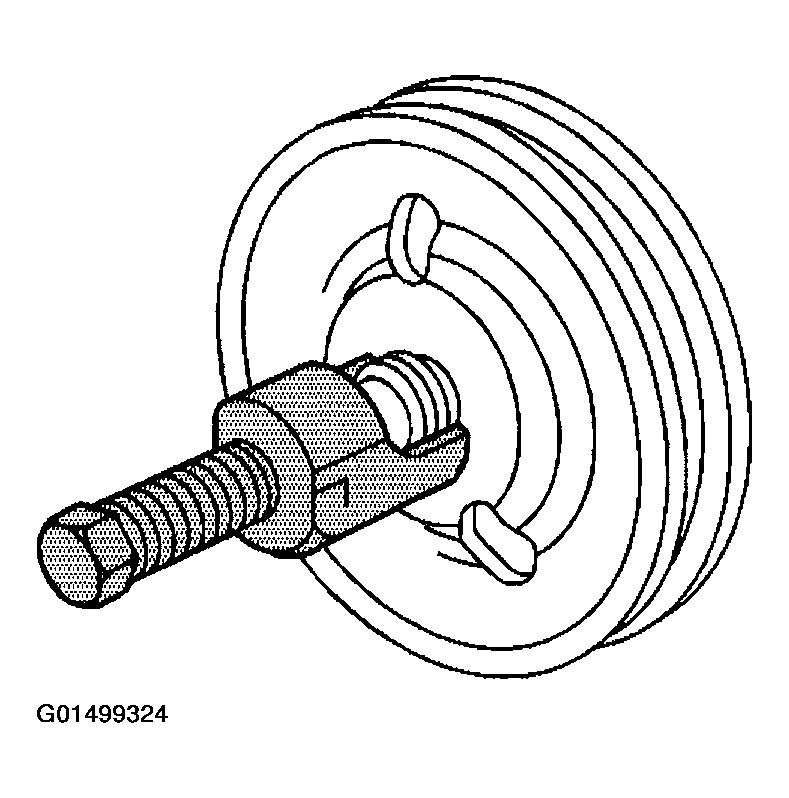

    Fig 1: Removing Power Steering Pump Pulley
    G01499324Courtesy of GENERAL MOTORS CORP.
