Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooler pipe.
  2. Install the cooler pipe retaining screws and brackets.

    Tighten

    Tighten the screws to 10 N.m (89 Ib. in).

  3. Install the low pressure hose to the cooler pipe.
  4. Install the cooler pipe low pressure line to the power steering gear.

    Torque

    Torque to 27 N.m (20 lb ft).

  5. Install the engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
  6. Lower the vehicle.

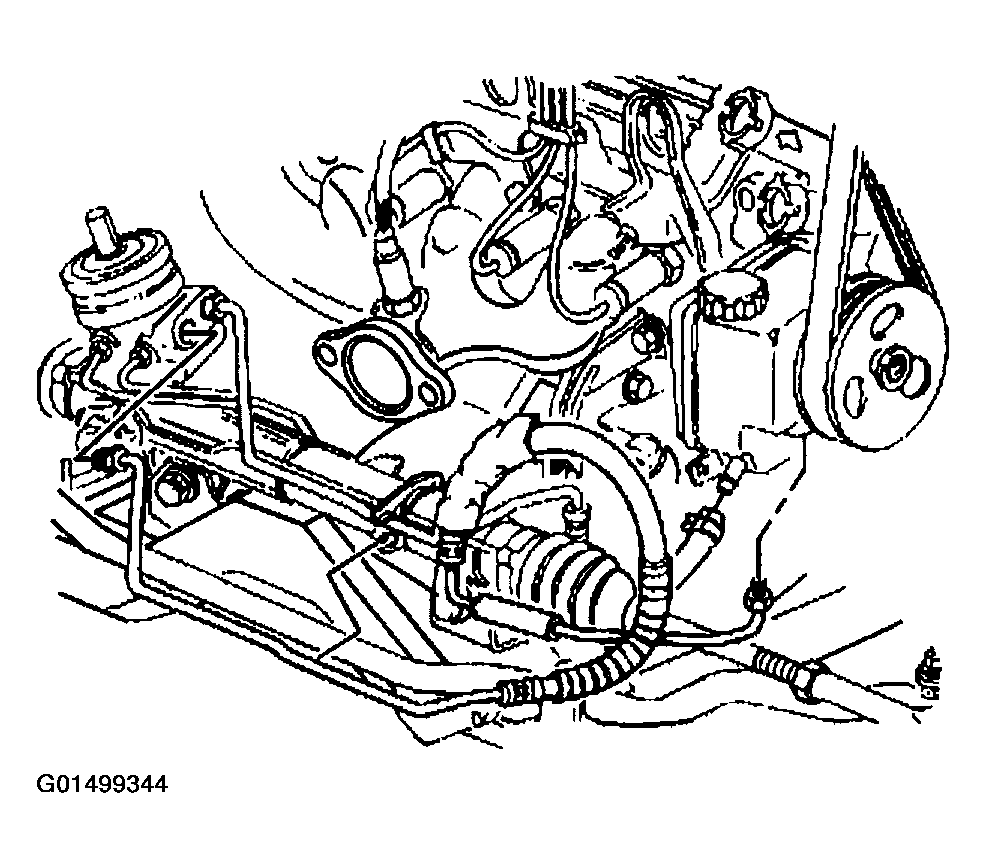

    Fig 1: Installing Cooler Pipe
    G01499344Courtesy of GENERAL MOTORS CORP.
