Power Steering Gear Disassembled View (Rack & Pinion)

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

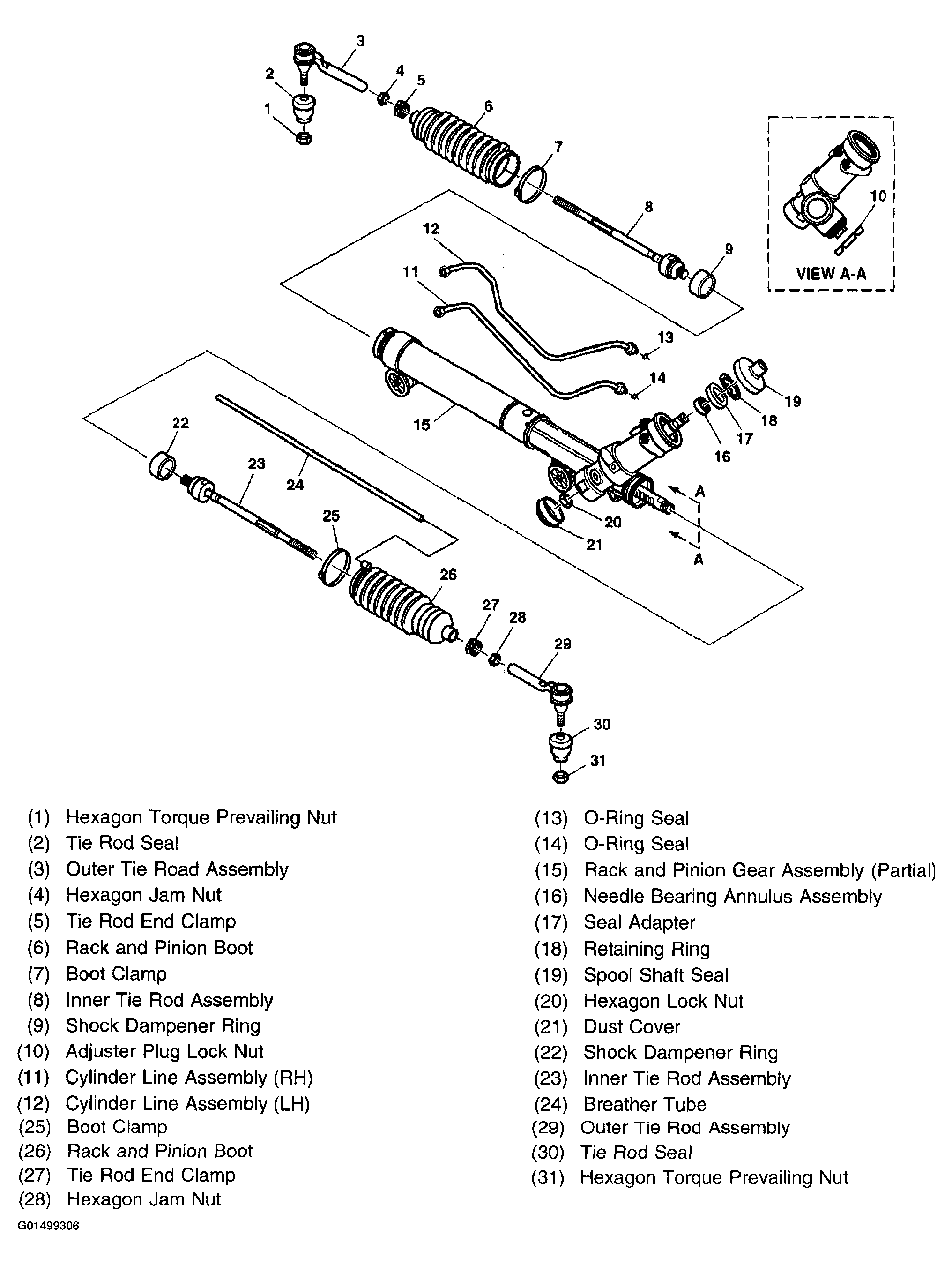

Fig 1: Exploded View Of Rack & Pinion Power Steering Gear
G01499306Courtesy of GENERAL MOTORS CORP.
