Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: When reusing valve lifters, install the lifters to their original locations.

Lubricate the valve lifters and engine block valve lifter bores with clean engine oil.
Insert the valve lifters into the lifter guides.
Align the flat area on the top of the lifter with the flat area in the lifter guide bore. Push the lifter completely into the guide bore.

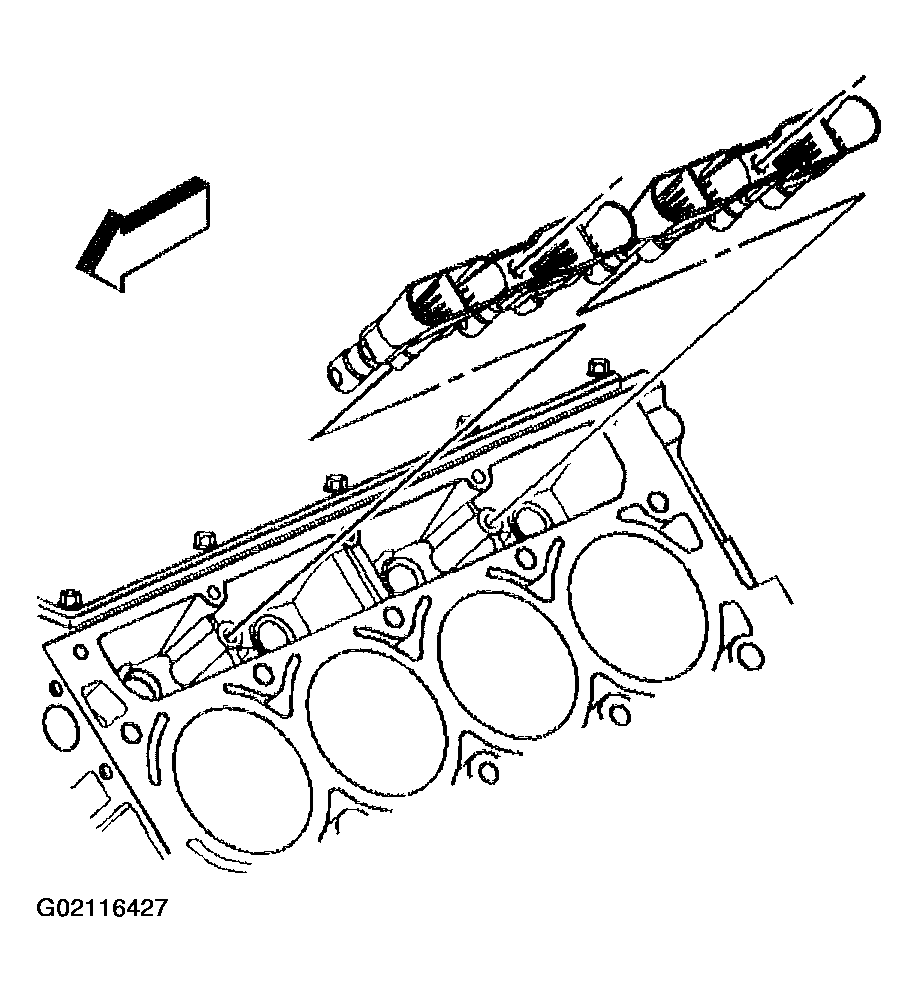

Fig 1: Installing Valve Lifters To Guide
Courtesy of GENERAL MOTORS CORP.
Install the valve lifters and guide to the engine block.

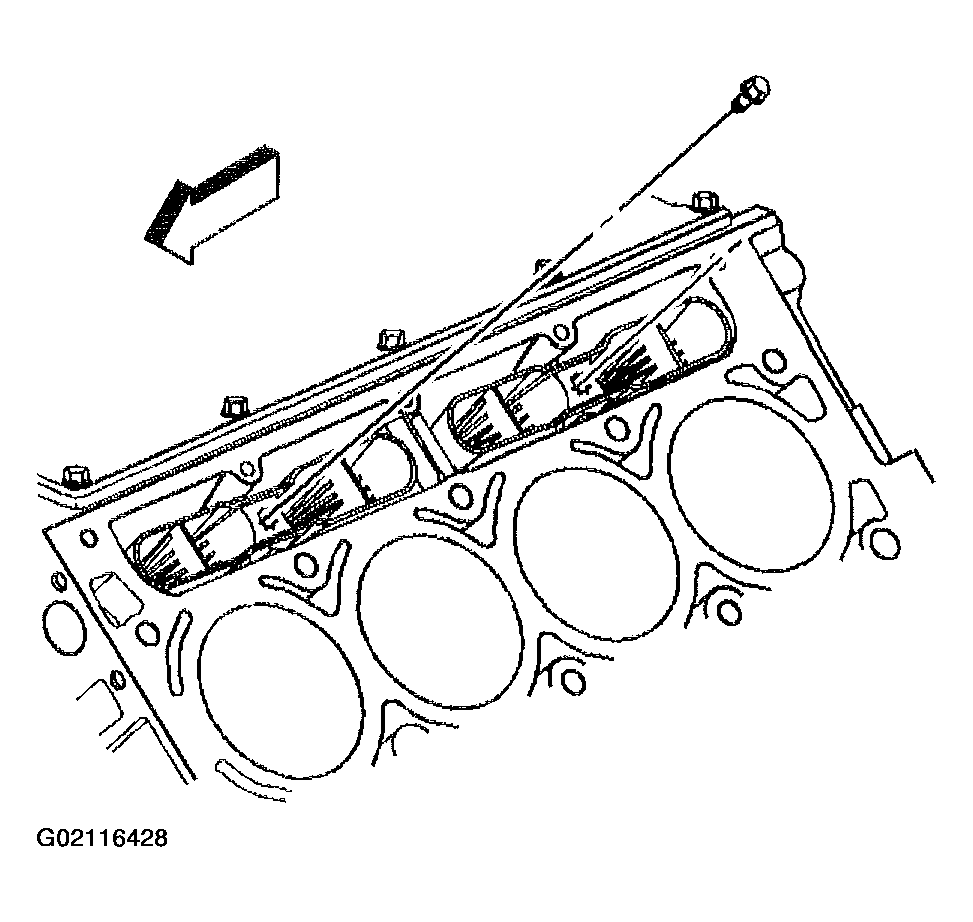

Fig 2: Installing Valve Lifters & Guide
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the valve lifter guide bolts.
Tighten

Tighten the bolt to 12 N.m (106 lb in).

Fig 3: Installing Procedure Valve Lifter (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Install the cylinder head and gasket. Refer to CYLINDER HEAD REPLACEMENT - LEFT or CYLINDER HEAD REPLACEMENT - RIGHT .
