Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.

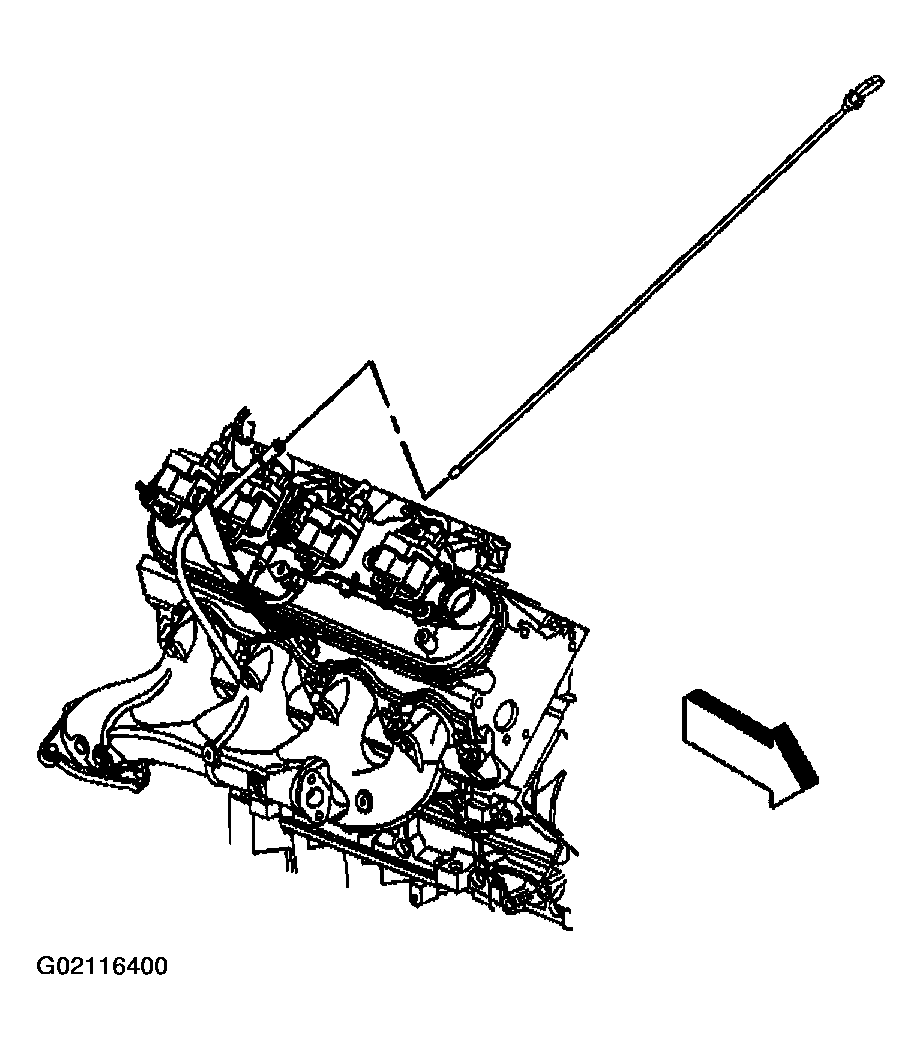

    Fig 1: Removing Oil Level Indicator
    G02116400Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube.

    Important:  The O-ring seal may be reused if not cut or damaged.

  4. Inspect the O-ring seal for cuts or damage.
  5. Remove the O-ring seal from the tube, if required.

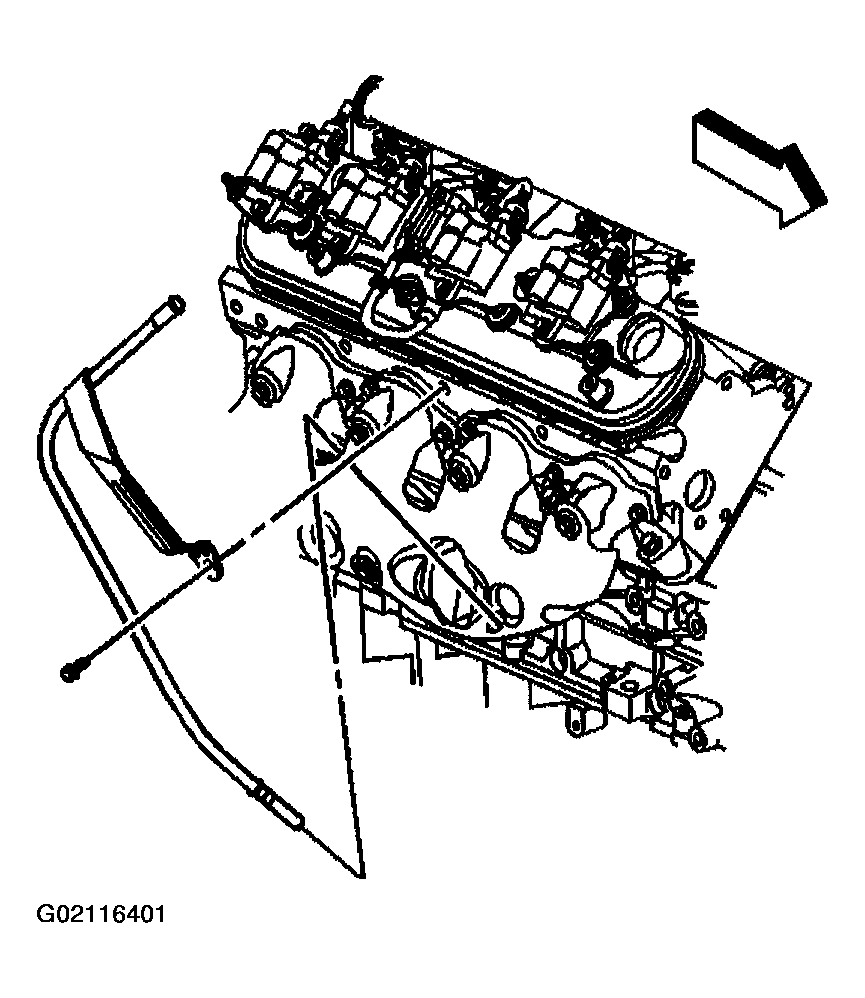

    Fig 2: Removing Procedure Oil Level Indicator Tube & Bolt
    G02116401Courtesy of GENERAL MOTORS CORP.
