Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the intake manifold sight shield bolt.
  2. Remove the sight shield from the sight shield retainer.
  3. Loosen the left fuel rail cover bolts.
  4. Remove the left fuel rail cover.
  5. Remove the surge tank/heater hoses from the clip on the right fuel rail cover.
  6. Loosen the right fuel rail cover bolts.
  7. Remove the right fuel rail cover.

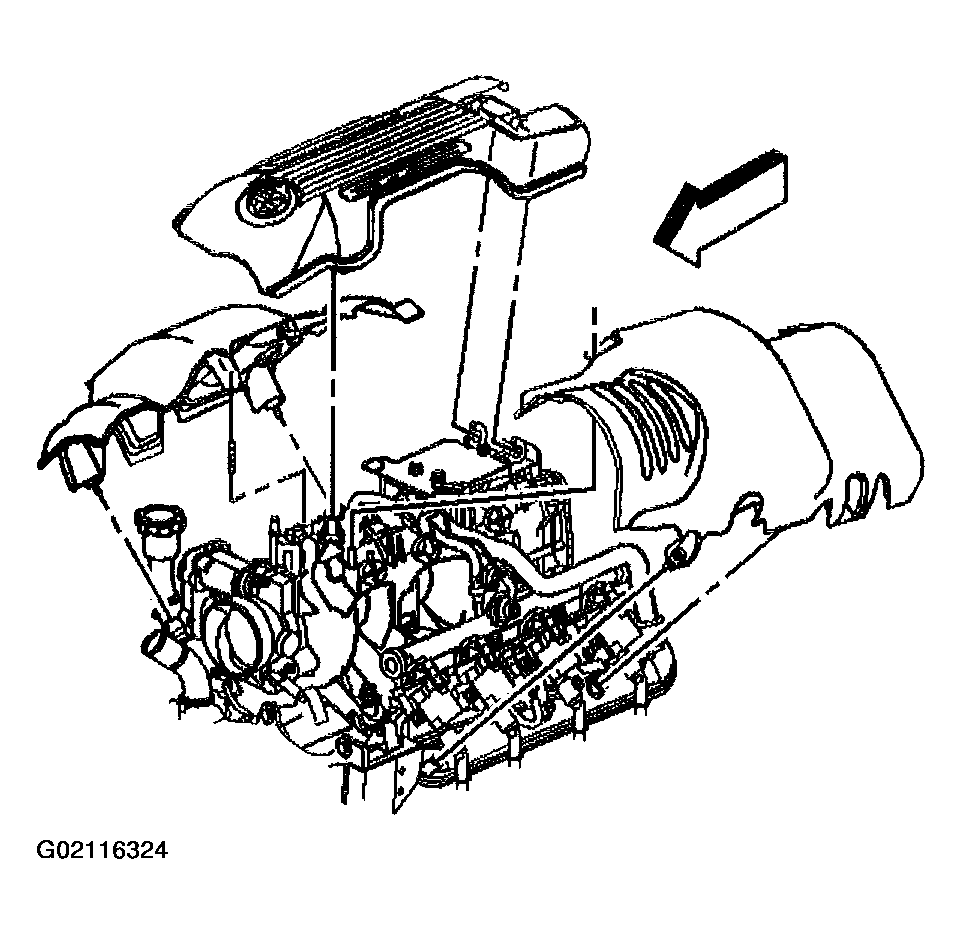

    Fig 1: Removing Left & Right Fuel Rail Cover
    G02116324Courtesy of GENERAL MOTORS CORP.
  8. Remove the sight shield retainer bolts and retainer, if required.

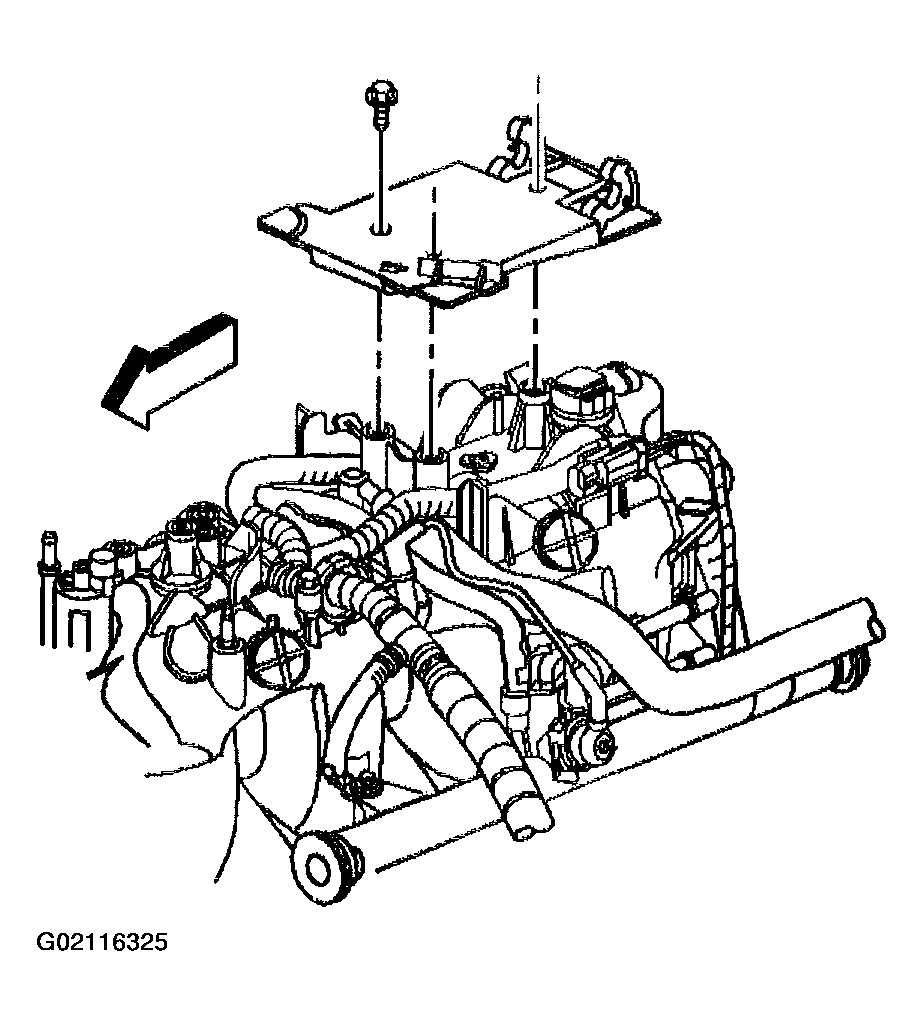

    Fig 2: Removing Sight Shield Retainer Bolts & Retainer
    G02116325Courtesy of GENERAL MOTORS CORP.
