Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Due to the small clearance between the oil pan and the oil pump screen, jacking against the oil pan may cause the pan to be bent against the pump screen. This will result in a damaged oil pickup unit.
  1. Remove the engine mount-to-engine mount bracket bolts. (Right side shown, left side similar).

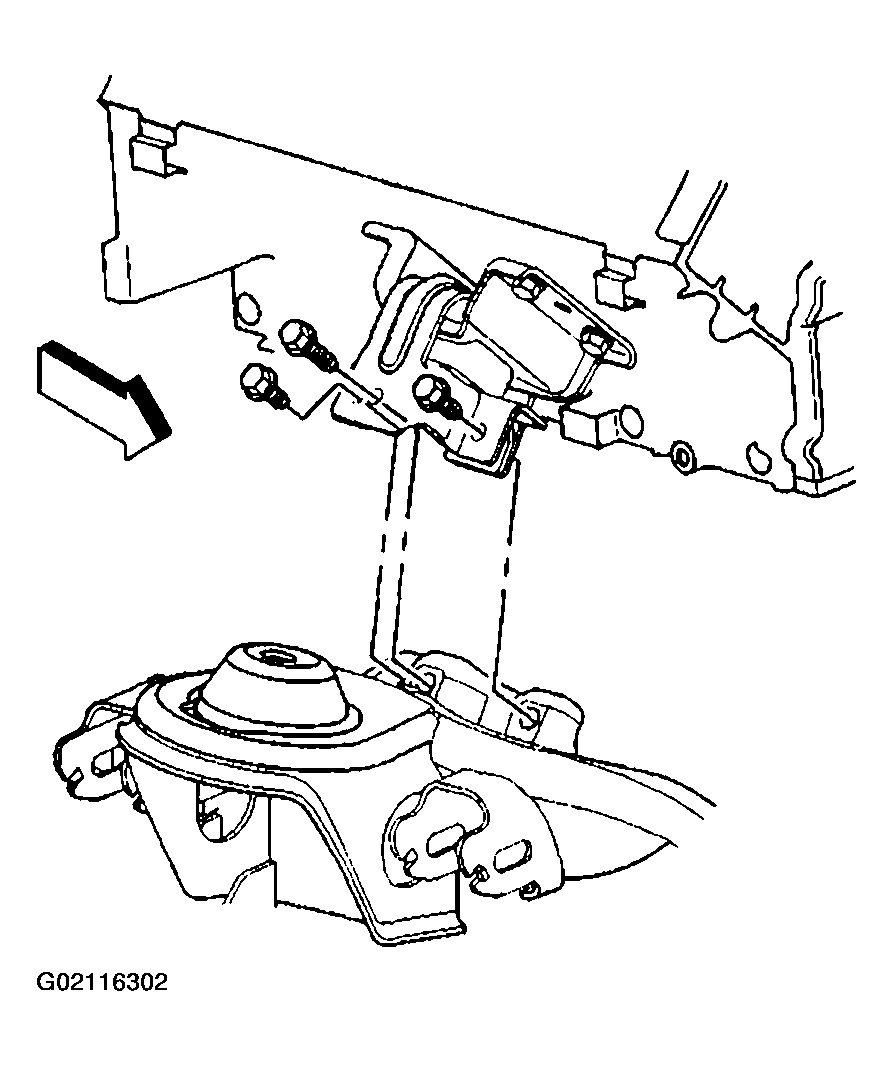

    Fig 1: Removing Engine Mount-To-Engine Mount Bracket Bolts
    G02116302Courtesy of GENERAL MOTORS CORP.
  2. If vehicle is a 2 wheel drive (2WD), raise the vehicle to a height to work through the front wheelhouse opening.
  3. If vehicle is a 4 wheel drive (4WD), raise the vehicle in order to remove the front tires and wheels.
  4. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  5. Remove the wheelhouse inner panel push pin retainers (2).
  6. Remove the wheelhouse inner panel (1).

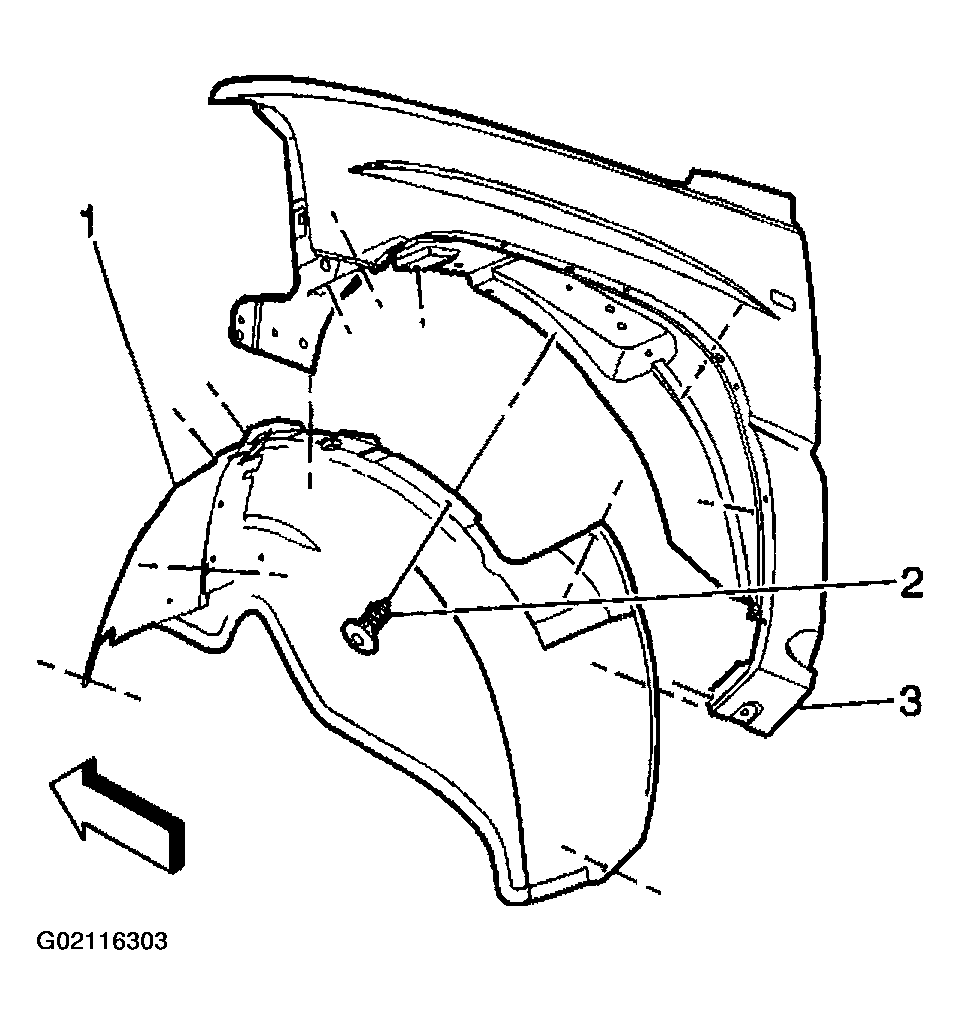

    Fig 2: Removing Wheelhouse Inner Panel & Push Pin Retainers
    G02116303Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine shield bolts.
  8. Remove the engine shield.

    Important:  DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.

  9. Raise and suitably support the engine using adjustable (screw type) jack stands.

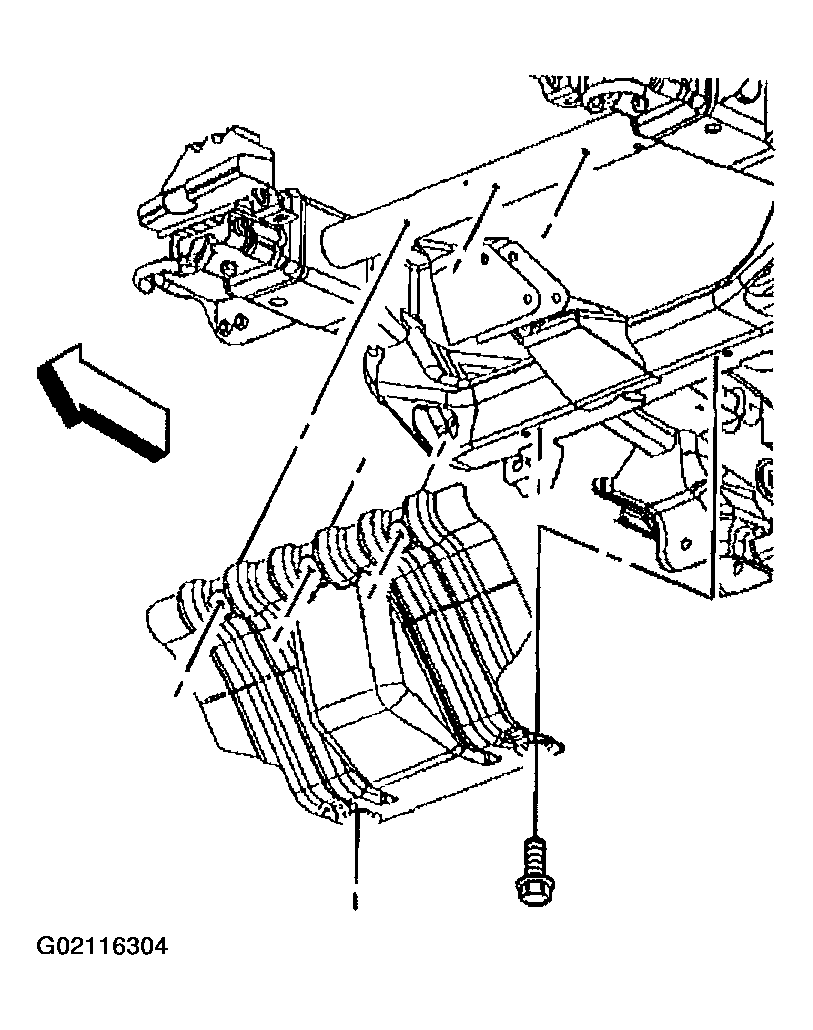

    Fig 3: Removing Engine Shield & Bolts
    G02116304Courtesy of GENERAL MOTORS CORP.
  10. Remove the engine mount bolts.
  11. For vehicles with 4WD, remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- FRONT in Propeller Shaft.
  12. Remove the left engine mount.

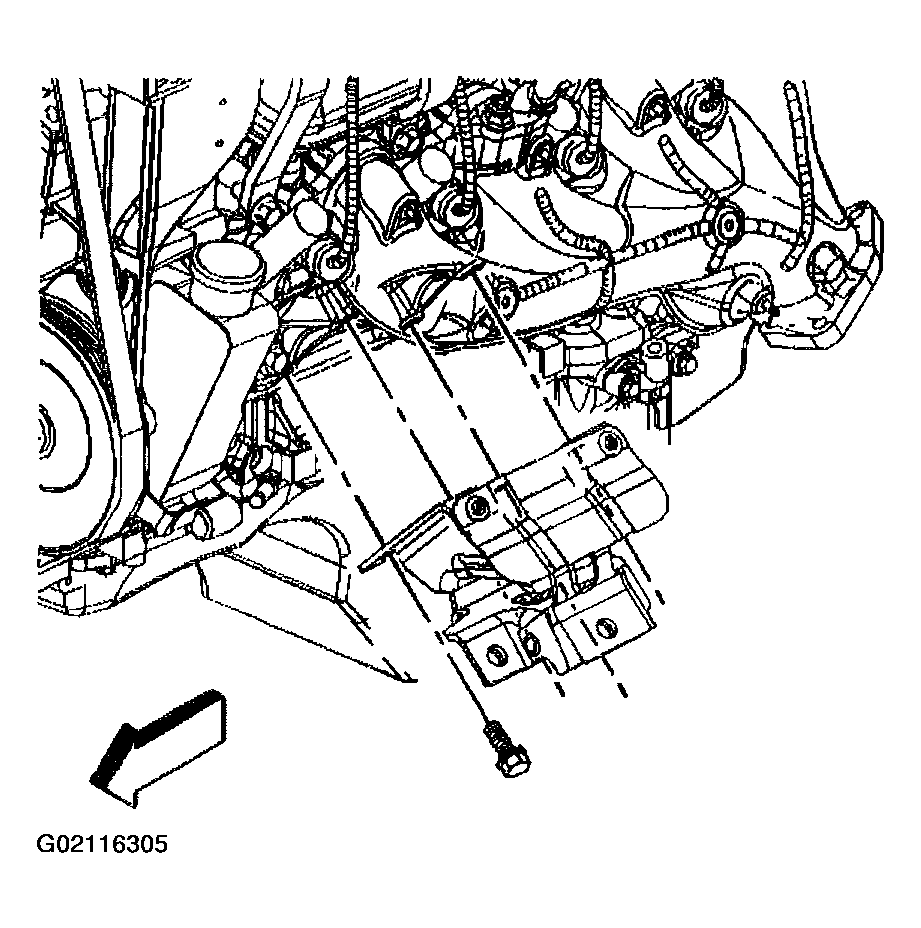

    Fig 4: Removing Engine Mount Bolts
    G02116305Courtesy of GENERAL MOTORS CORP.
