Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the left engine mount to the engine.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount bolts.

    Tighten

    Tighten the engine mount bolts to 50 N.m (37 lb ft).

  3. Lower the engine.
  4. Remove the adjustable jack stands.
  5. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- FRONT in Propeller Shaft.

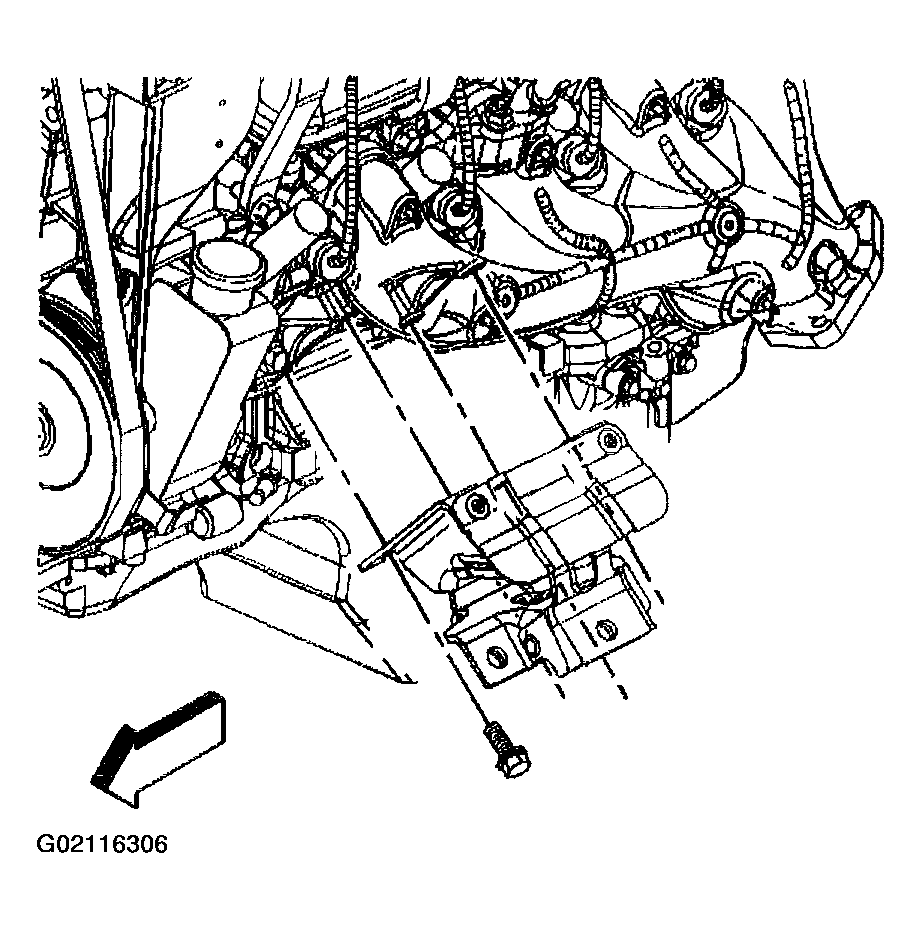

    Fig 1: Installing Engine Mount Bolts
    G02116306Courtesy of GENERAL MOTORS CORP.
  6. Position the engine shield to the vehicle.
  7. Install the engine shield bolts.

    Tighten

    Tighten the engine shield bolts to 20 N.m (15 lb ft).

  8. Lower the vehicle.

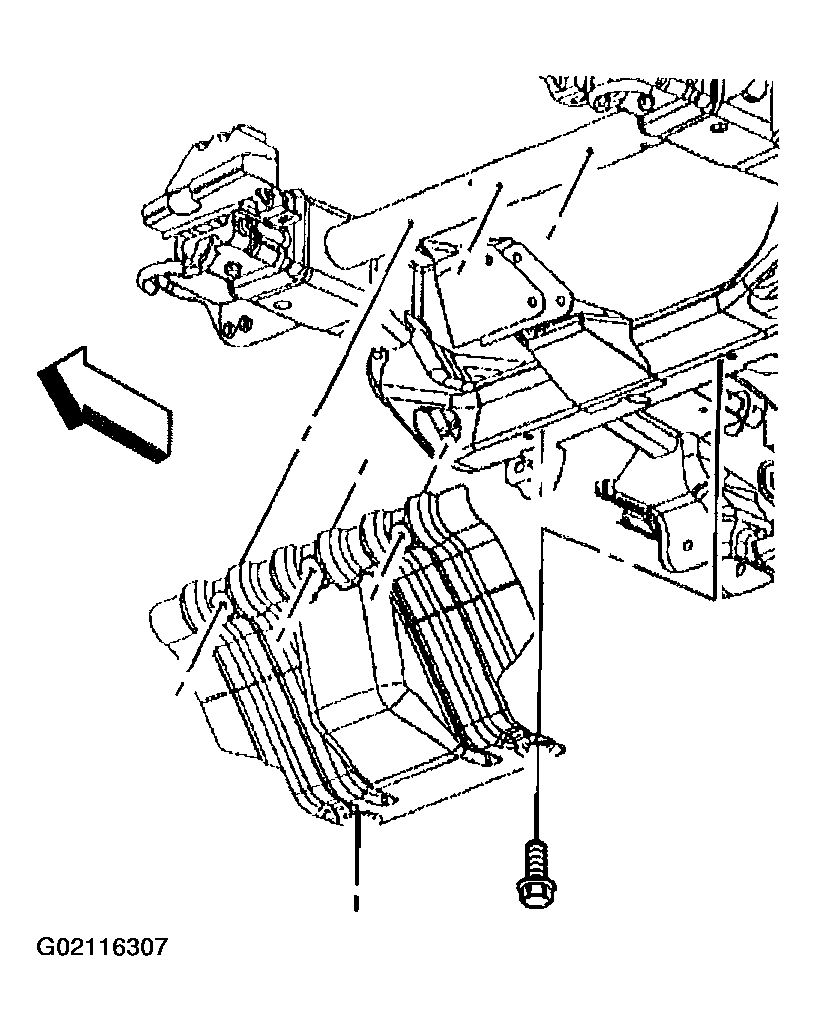

    Fig 2: Installing Engine Shield Bolts
    G02116307Courtesy of GENERAL MOTORS CORP.
  9. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  10. Install the wheelhouse inner panel push pin retainers (2).
  11. Install the wheelhouse inner panel (1).

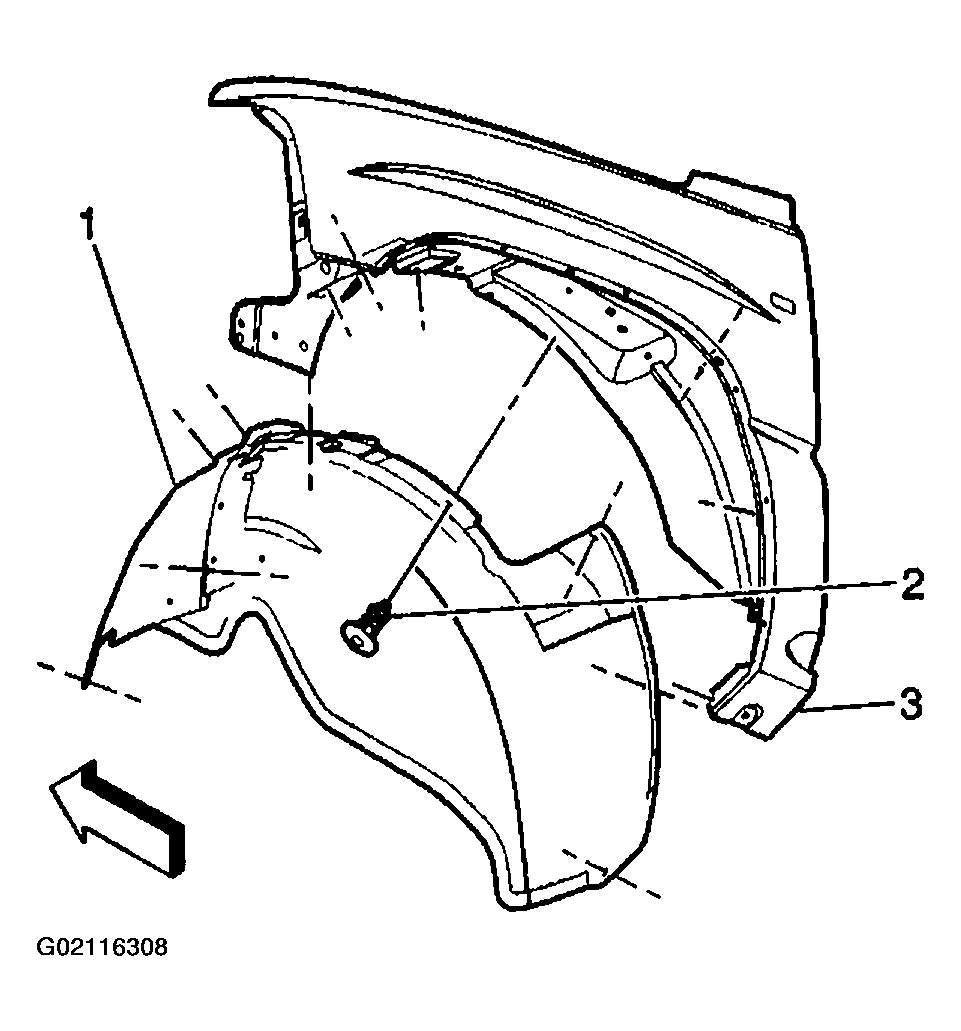

    Fig 3: Installing Wheelhouse Inner Panel & Push Pin Retainers
    G02116308Courtesy of GENERAL MOTORS CORP.
  12. Install the engine mount-to-engine mount bracket bolts. (Right side shown, left side similar).

    Tighten

    Tighten the engine mount-to-engine mount bracket bolts to 65 N.m (48 lb ft).

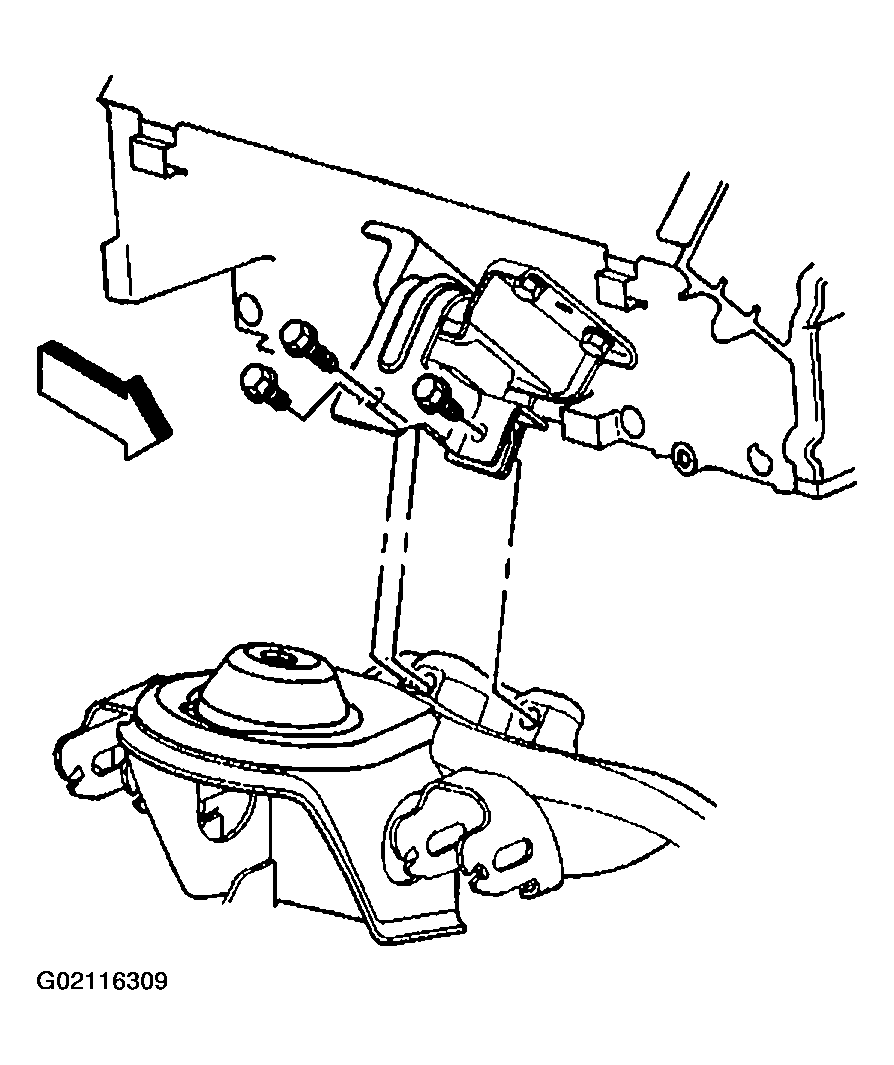

    Fig 4: Installing Engine Mount-To-Engine Mount Bracket Bolts
    G02116309Courtesy of GENERAL MOTORS CORP.
