Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount bracket bolts.

    Tighten

    Tighten the engine mount bracket bolts to 75 N.m (55 lb ft).

  3. Install the engine mount. Refer to ENGINE MOUNT REPLACEMENT - LEFT  .

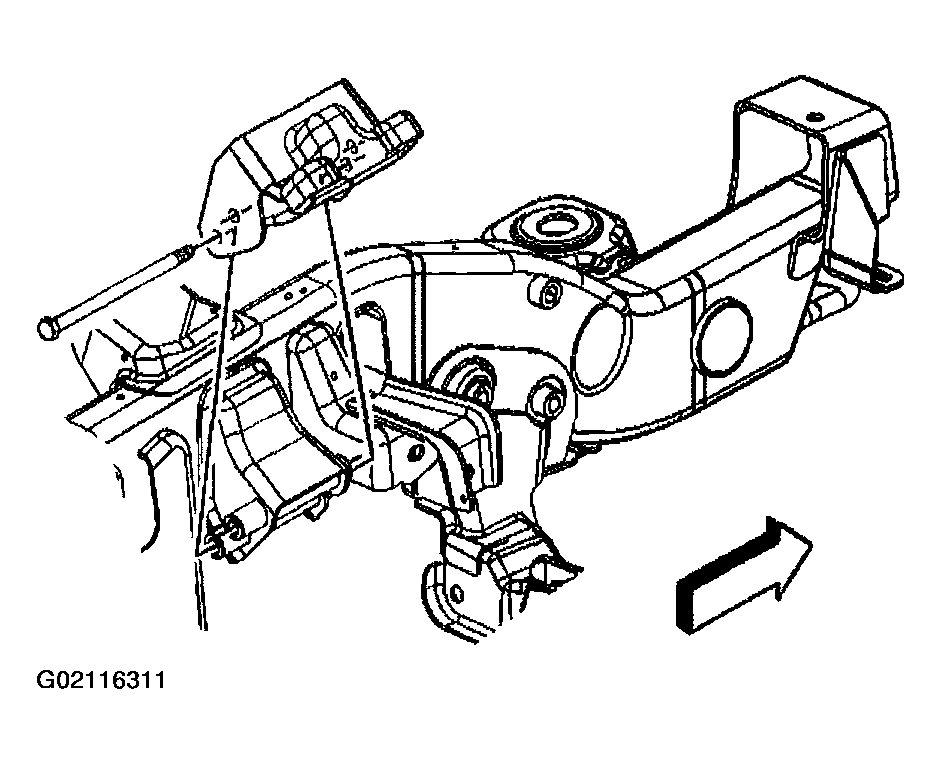

    Fig 1: Installing Procedure Engine Mount Bracket - Left
    G02116311Courtesy of GENERAL MOTORS CORP.
