Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the A/C belt tensioner bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft)

  3. Install the A/C drive belt. Refer to DRIVE BELT REPLACEMENT - AIR CONDITIONING  .

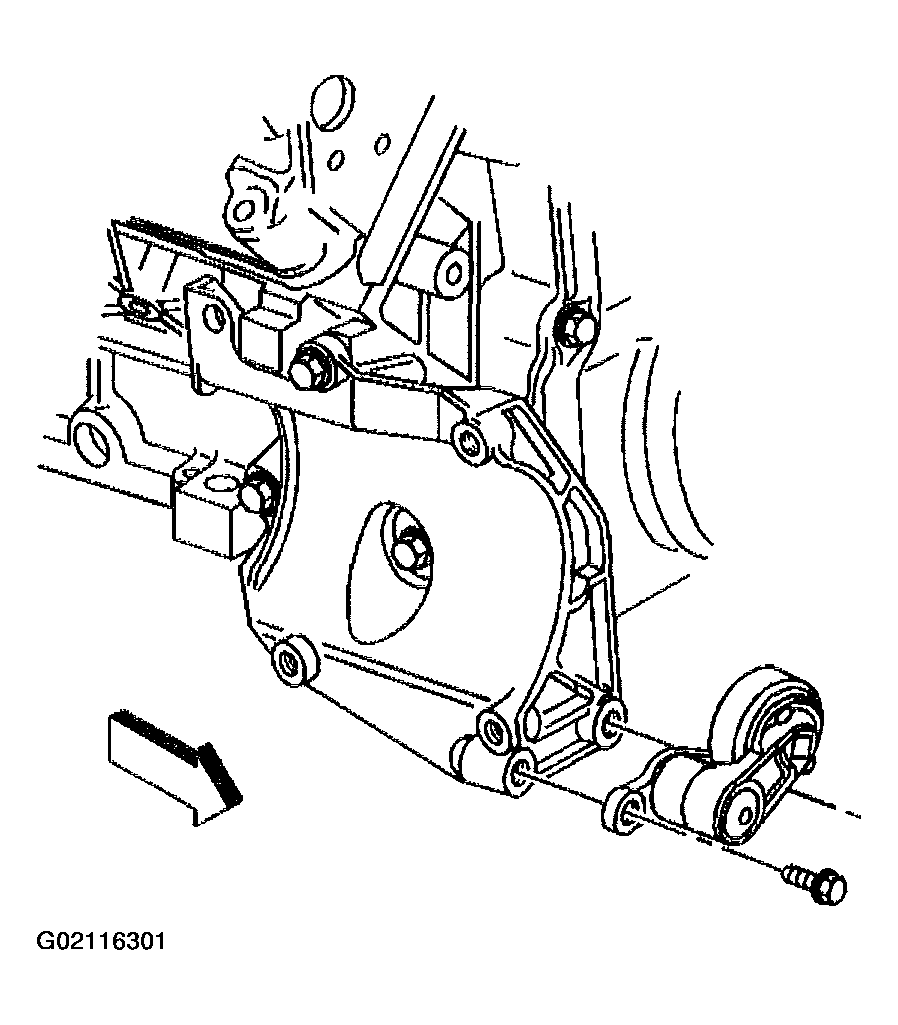

    Fig 1: Installing Procedure Drive Belt Tensioner - Air Conditioning
    G02116301Courtesy of GENERAL MOTORS CORP.
