Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY  .
  2. Remove the drive belt tensioner bolts.
  3. Remove the drive belt tensioner.

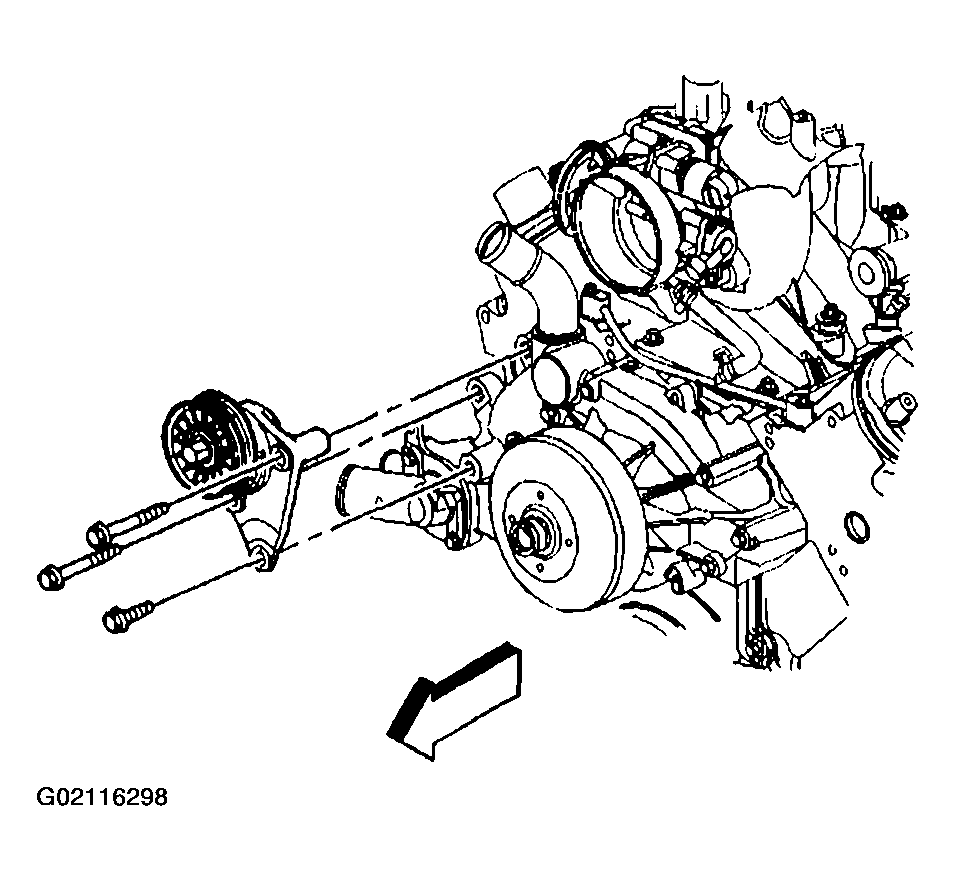

    Fig 1: Removing Procedure Drive Belt Tensioner - Accessory
    G02116298Courtesy of GENERAL MOTORS CORP.
