Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY  .
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the engine shield bolts.
  4. Remove the engine shield.

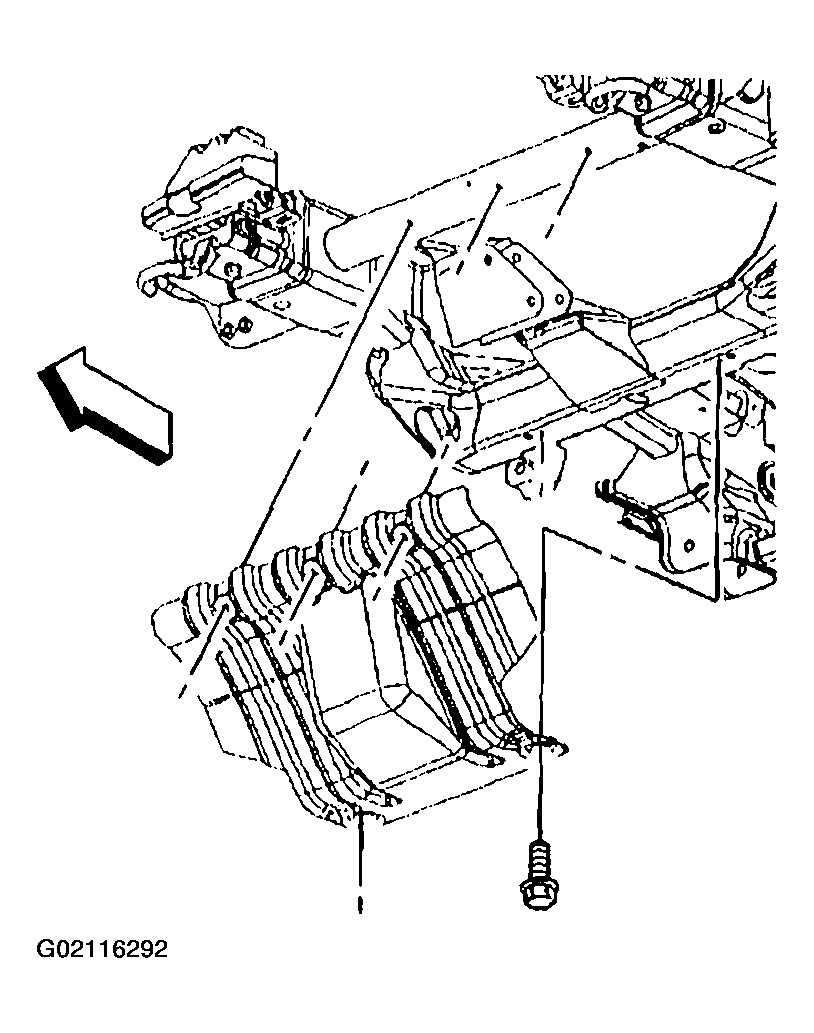

    Fig 1: Removing Engine Shield & Bolts
    G02116292Courtesy of GENERAL MOTORS CORP.
  5. Install a ratchet into the air conditioning (A/C) belt tensioner adapter opening.
  6. Rotate the A/C belt tensioner clockwise in order to relieve tension on the belt.
  7. Remove the A/C belt from the pulleys.
  8. Slowly release the tension on the A/C belt tensioner.
  9. Remove the ratchet from the A/C belt tensioner.
  10. Clean and inspect the belt surfaces of all the pulleys.

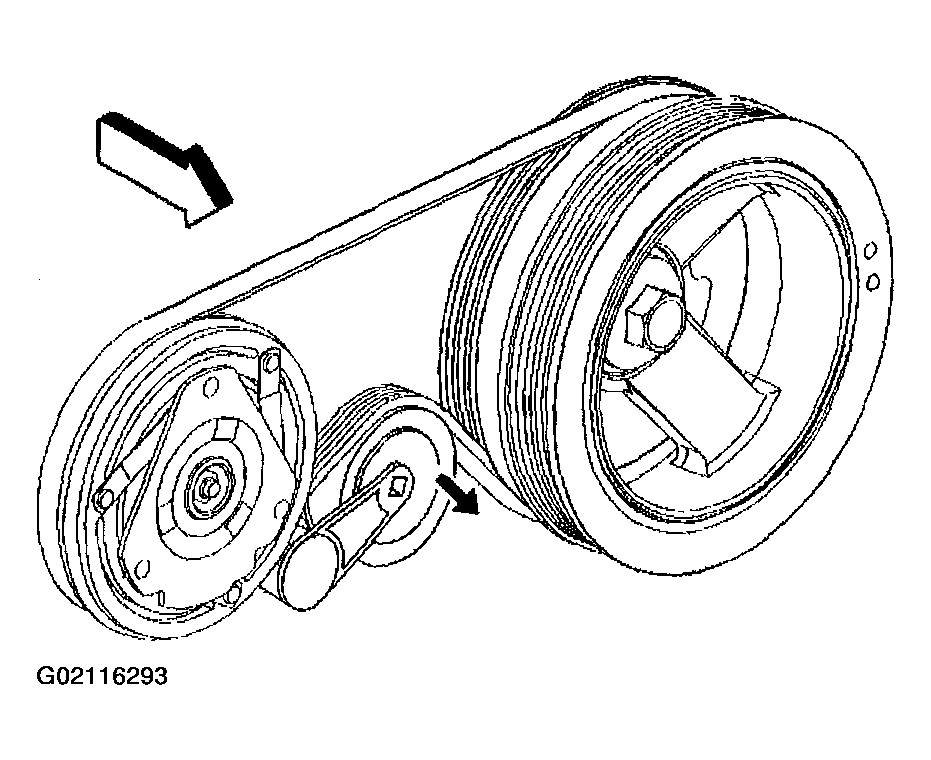

    Fig 2: Removing Ratchet From A/C Belt Tensioner
    G02116293Courtesy of GENERAL MOTORS CORP.
