Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the air cleaner outlet duct clamps at the following locations:
    • The throttle body
    • The mass airflow/intake air temperature (MAF/IAT) sensor
  2. Disconnect the radiator inlet hose clip from the outlet duct.
  3. Remove the air cleaner outlet duct.

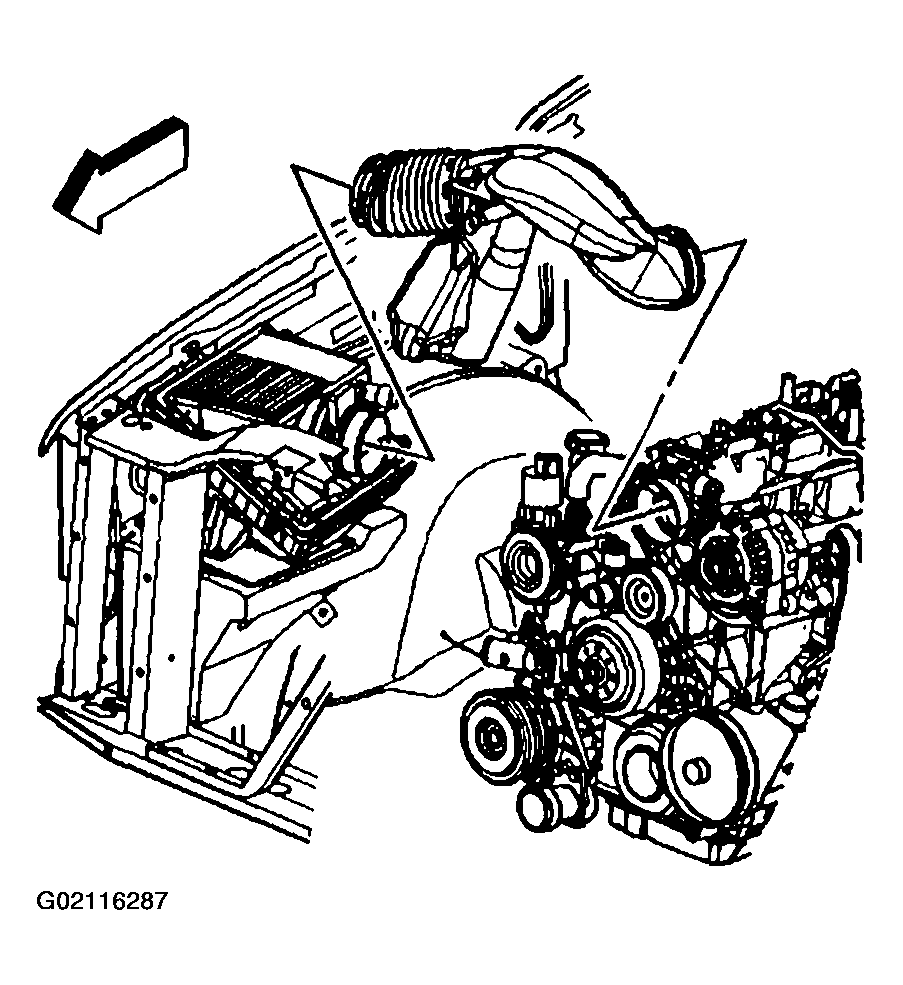

    Fig 1: Removing Air Cleaner Outlet Duct
    G02116287Courtesy of GENERAL MOTORS CORP.
  4. Install a breaker bar with hex-head socket to the drive belt tensioner bolt.
  5. Rotate the drive belt tensioner clockwise in order to relieve tension on the belt (1).
  6. Remove the belt (1) from the pulleys and the drive belt tensioner.
  7. Slowly release the tension on the drive belt tensioner.
  8. Remove the breaker bar and socket and from the drive belt tensioner bolt.
  9. Clean and inspect the belt surfaces of all the pulleys.

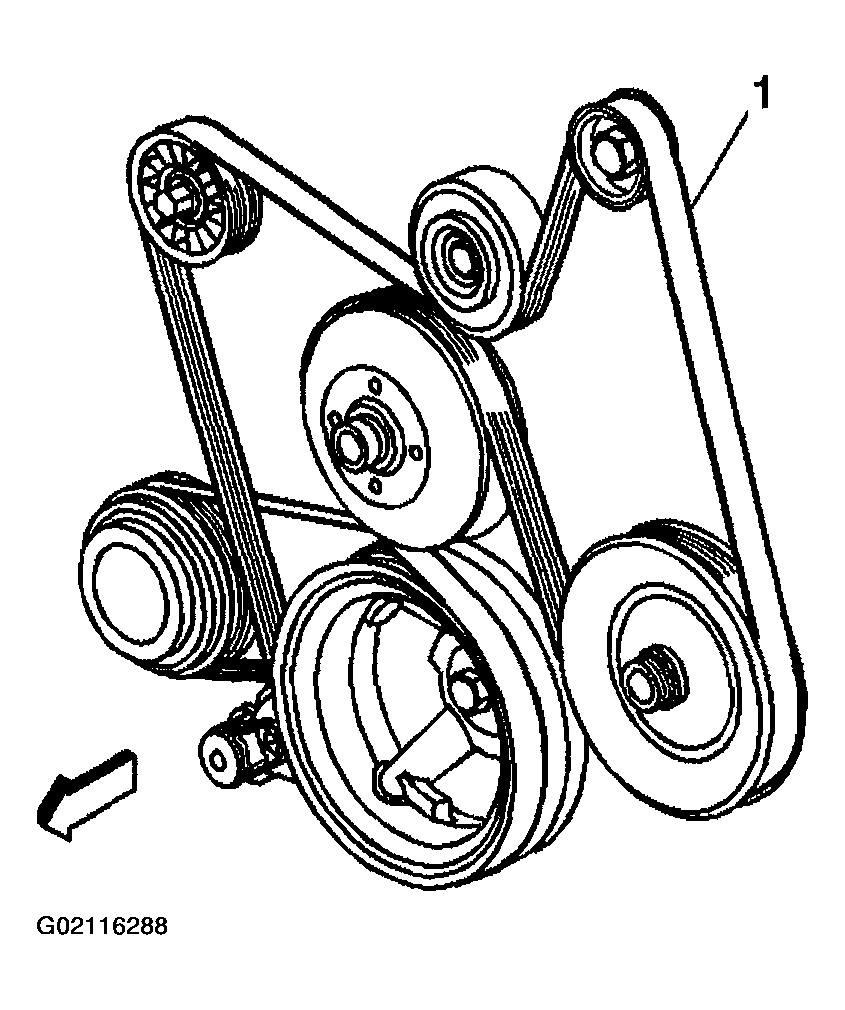

    Fig 2: Drive Belt Routing
    G02116288Courtesy of GENERAL MOTORS CORP.
