Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley and bolt to the generator bracket.

    Snug the bolt finger tight.

  2. Install the drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY  .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the drive belt idler pulley bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

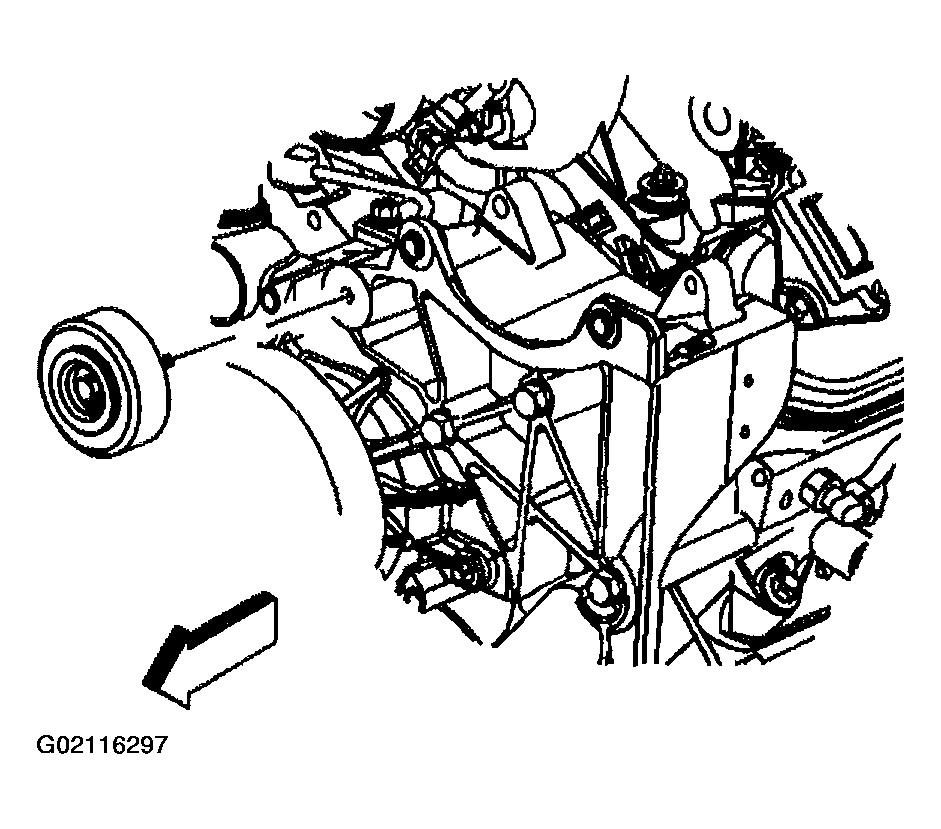

    Fig 1: Installing Procedure Drive Belt Idler Pulley
    G02116297Courtesy of GENERAL MOTORS CORP.
