Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:

Do not lubricate the oil seal sealing surface.
Do not reuse the crankshaft oil seal.

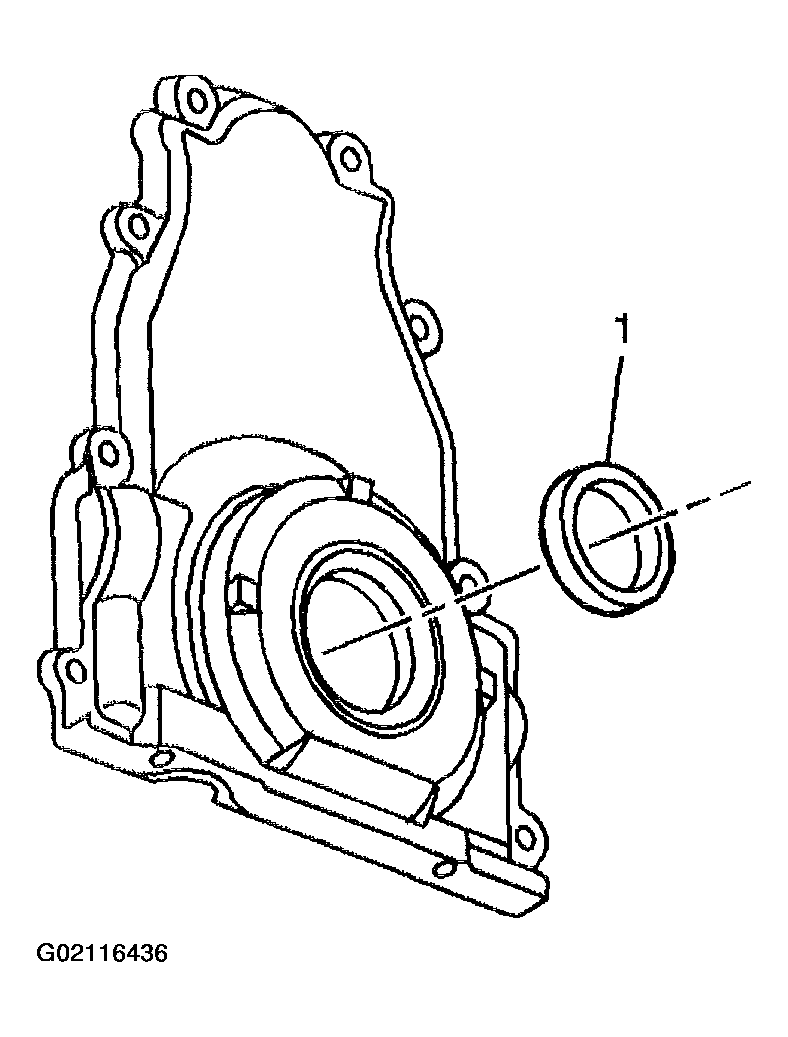

Lubricate the outer edge of the oil seal (1) with clean engine oil.
Lubricate the front cover oil seal bore with clean engine oil.

Fig 1: Installing Crankshaft Front Oil Seal
Courtesy of GENERAL MOTORS CORP.

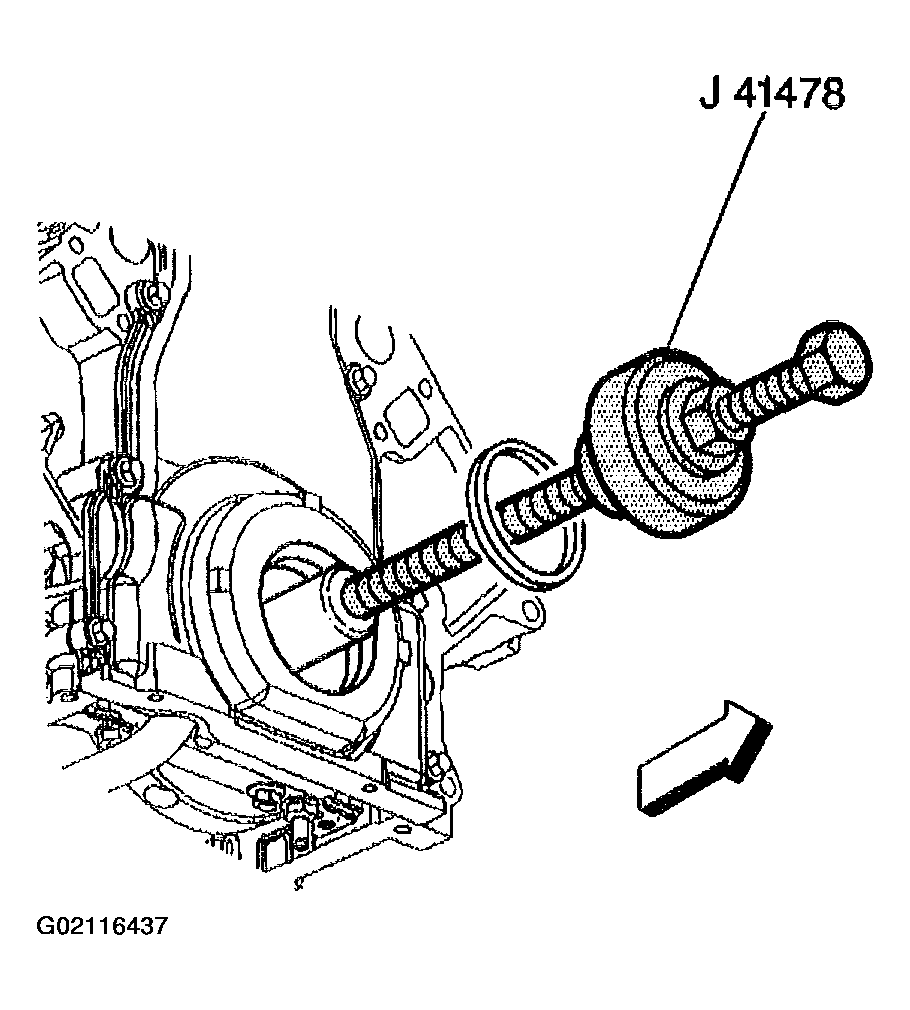

Install the crankshaft front oil seal onto the J 41478 guide.
Install the J 41478 threaded rod (with nut, washer, guide, and oil seal) into the end of the crankshaft.
Use the J 41478 in order to install the oil seal into the cover bore.
1. 5.1. Use a wrench and hold the hex on the installer bolt.
2. 5.2. Use a second wrench and rotate the installer nut clockwise until the seal bottoms in the cover bore.
3. 5.3. Remove the J 41478 .
4. Inspect the oil seal for proper installation.
  The oil seal should be installed evenly and completely into the front cover bore.
Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT .

Fig 2: Installing Crankshaft Front Oil Seal Onto J 41478
Courtesy of GENERAL MOTORS CORP.
