Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hose/tube as necessary.
  2. Install the vent hose to the throttle body and the valve rocker arm cover.

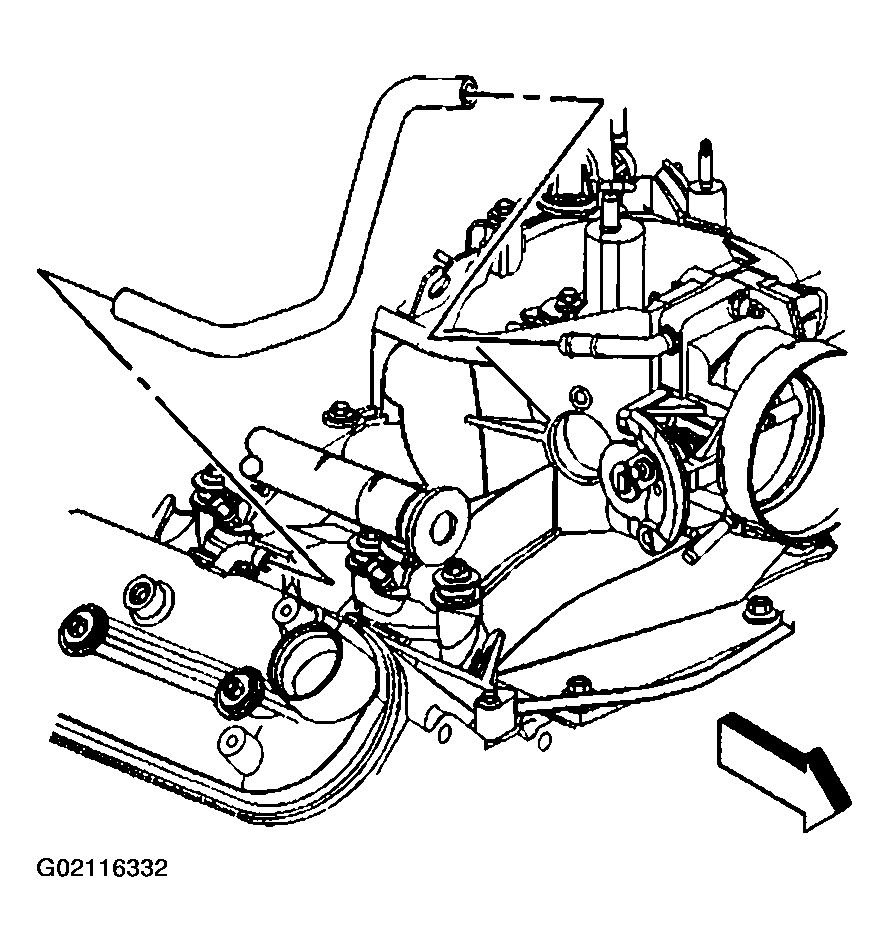

    Fig 1: Installing Vent Hose To Throttle Body & Valve Rocker Arm Cover
    G02116332Courtesy of GENERAL MOTORS CORP.
  3. Install the PCV valve (2) to the tube (1).
  4. Install the PCV tube (1) to the intake manifold and valve rocker arm cover.
  5. Install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, AND 6.0L (RPO LQ4))  or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (RPO LQ9))  .

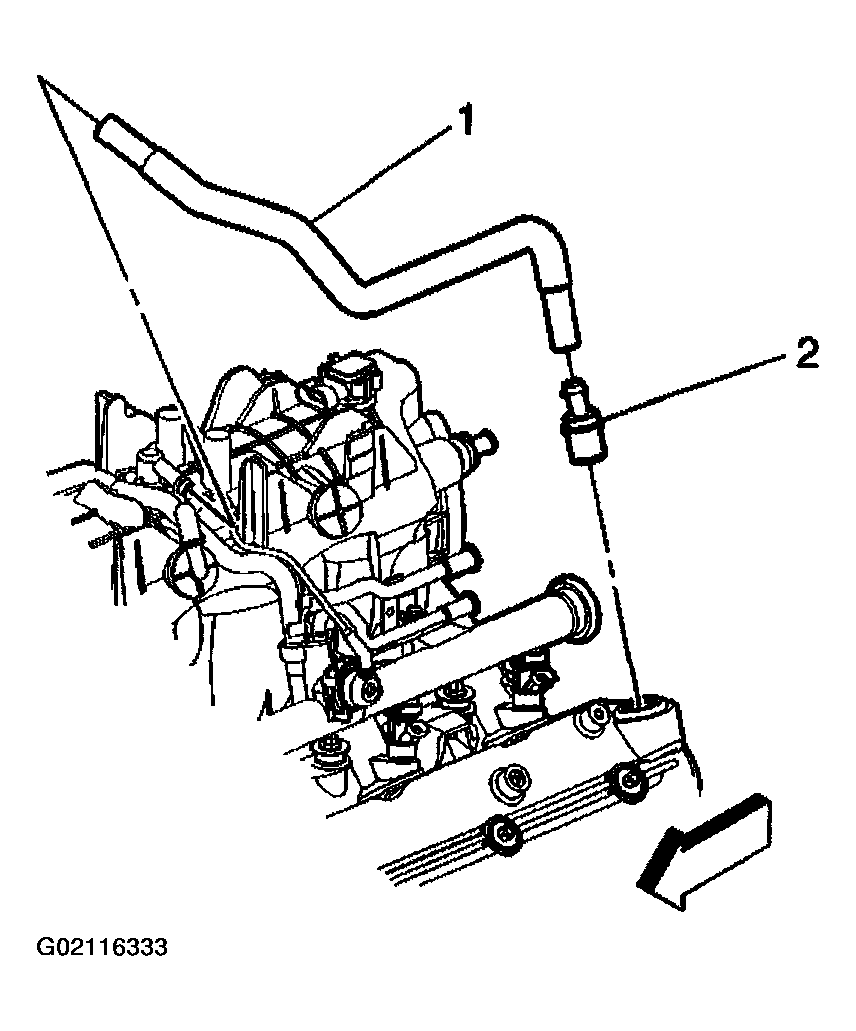

    Fig 2: Installing PCV Valve To PCV Tube
    G02116333Courtesy of GENERAL MOTORS CORP.
