Water Pump Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump bolts.
  2. Remove the water pump and gaskets.
  3. Discard the water pump gaskets.

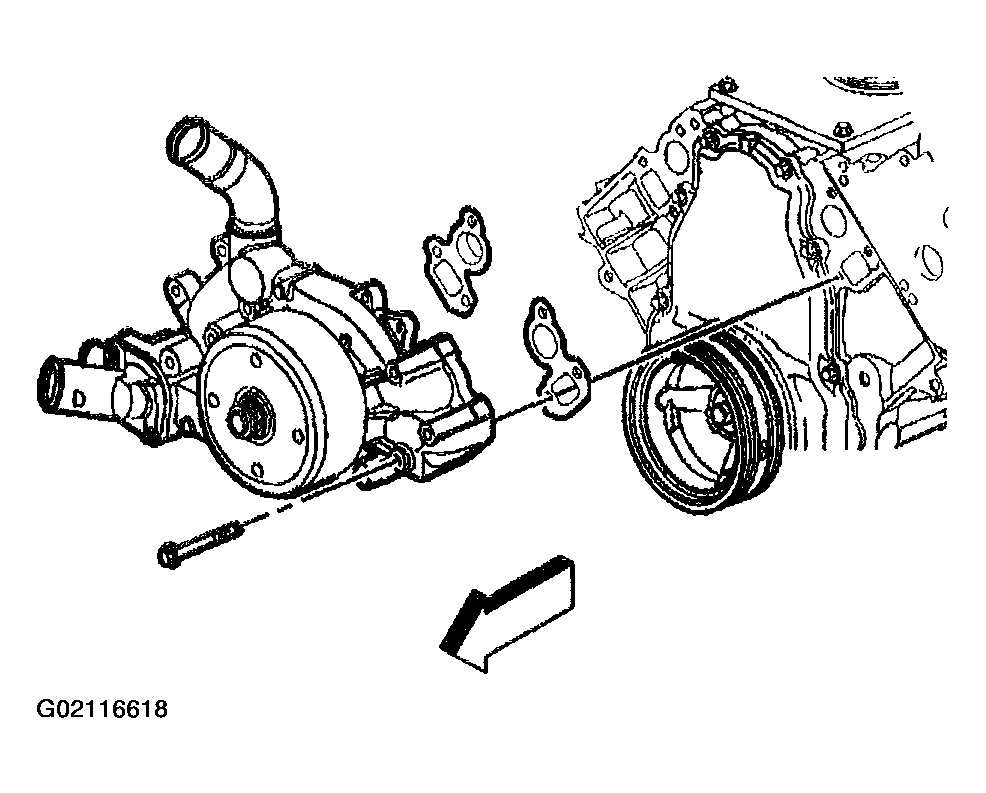

    Fig 1: Removing Water Pump, Gaskets & Bolts
    G02116618Courtesy of GENERAL MOTORS CORP.
