Valve Lifter Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3049-A Valve Lifter Remover

Remove the valve lifter guide bolts (1).
Remove the valve lifters and guide.

Fig 1: Removing Valve Lifter Guide & Bolts
Courtesy of GENERAL MOTORS CORP.

Important: Some valve lifters may be stuck in their bores because of gum or varnish deposits.
Use the J 3049-A or equivalent in order to remove the valve lifters, if required.

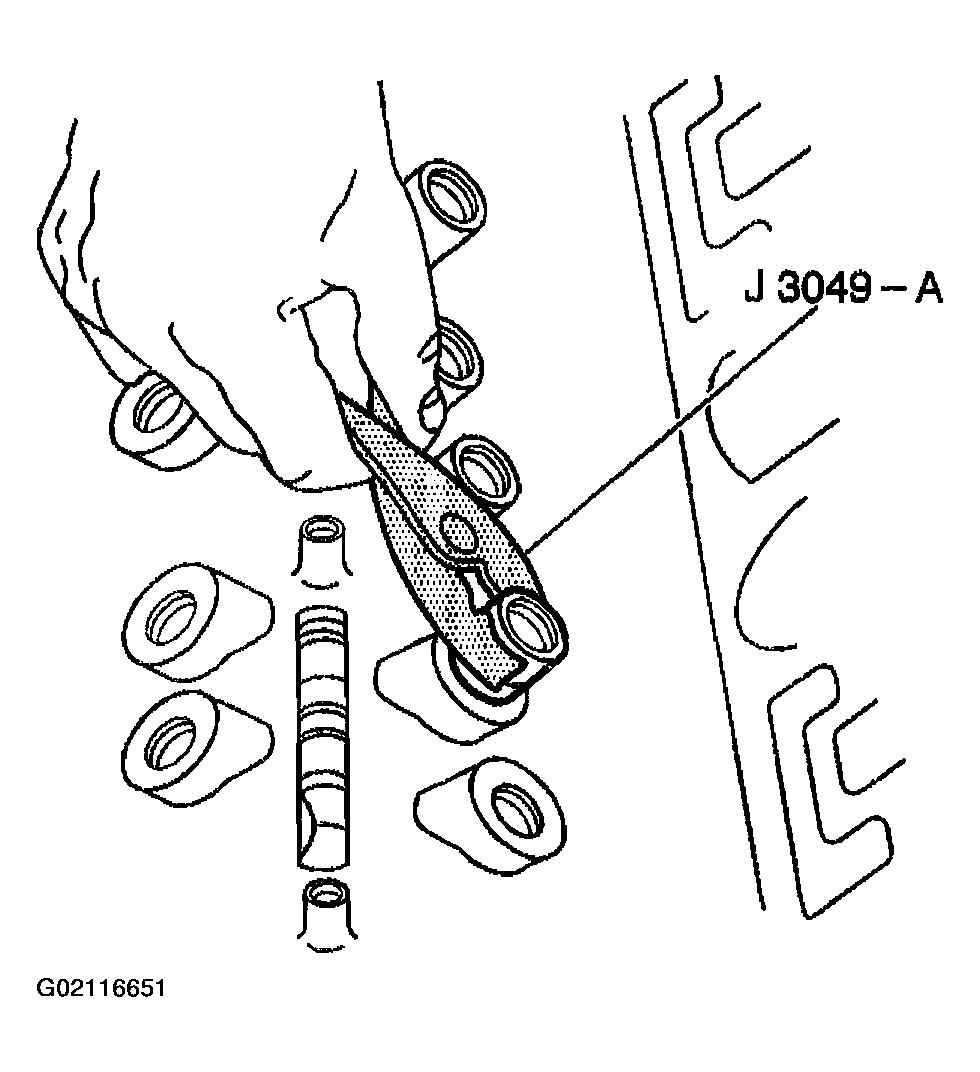

Fig 2: Removing Valve Lifter Using J 3049-A
Courtesy of GENERAL MOTORS CORP.
Remove the valve lifters from the guide.
Organize or mark the components so that they can be installed in the same location from which they were removed. Refer to SEPARATING PARTS .

Fig 3: Removing Valve Lifters From Guide
Courtesy of GENERAL MOTORS CORP.
