Measuring Piston Ring End Gap
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: Do not attempt to file the end of the piston ring for fit in the cylinder bore.
Important: Measure the piston ring in the cylinder in which the piston ring will be used.
- Place the piston ring into the cylinder bore.
- Push the piston ring into the bore 6.5 mm (0.25 in) below the piston ring travel area.

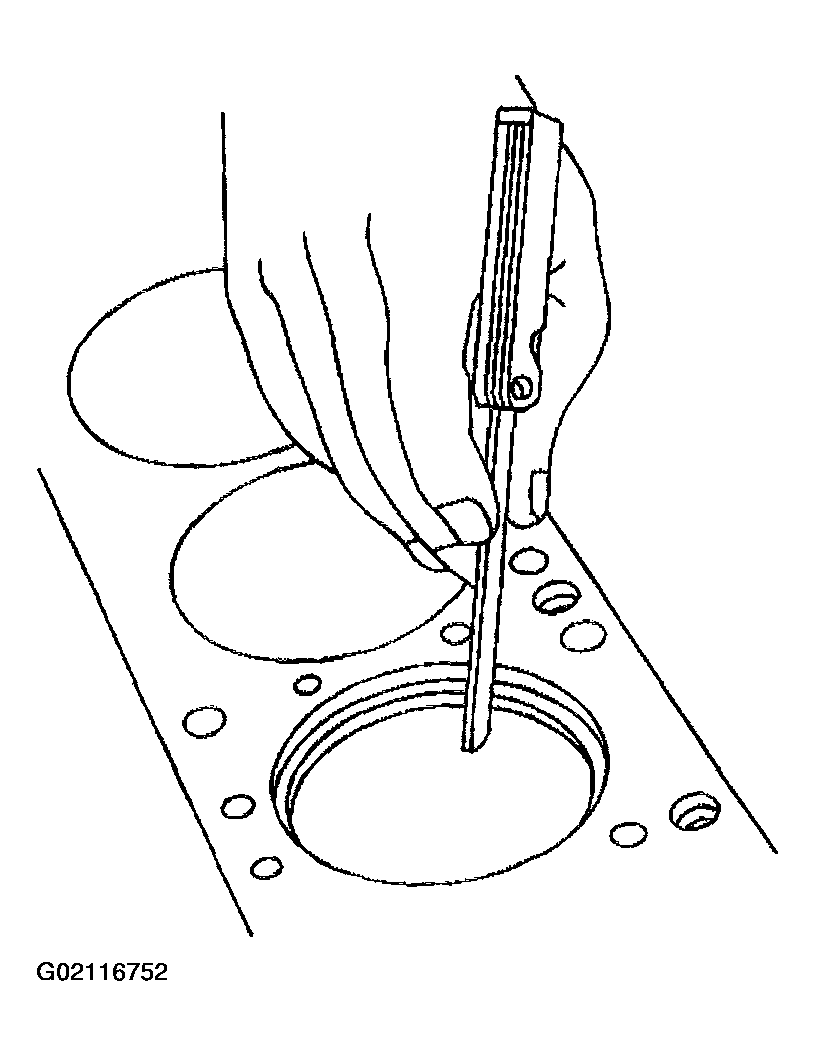

- Insert a feeler gage and measure the piston ring end gap. Refer to Engine Mechanical (4.8L, 5.3L, And 6.0L) Specifications (LR4 VIN V) or Engine Mechanical (4.8L, 5.3L, And 6.0L) Specifications (LM7 VIN T) or Engine Mechanical (4.8L, 5.3L, And 6.0L) Specifications (L59 VIN Z) or Engine Mechanical (4.8L, 5.3L, And 6.0L) Specifications (LQ4 VIN U) or Engine Mechanical (4.8L, 5.3L, And 6.0L) Specifications (LQ9 VIN N) .
