Oil Pump, Pump Screen and Deflector Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump screen bolt (4) and nuts (2).
  2. Remove the oil pump screen (1) with O-ring seal (3).
  3. Remove the O-ring seal from the pump screen.
  4. Discard the O-ring seal.

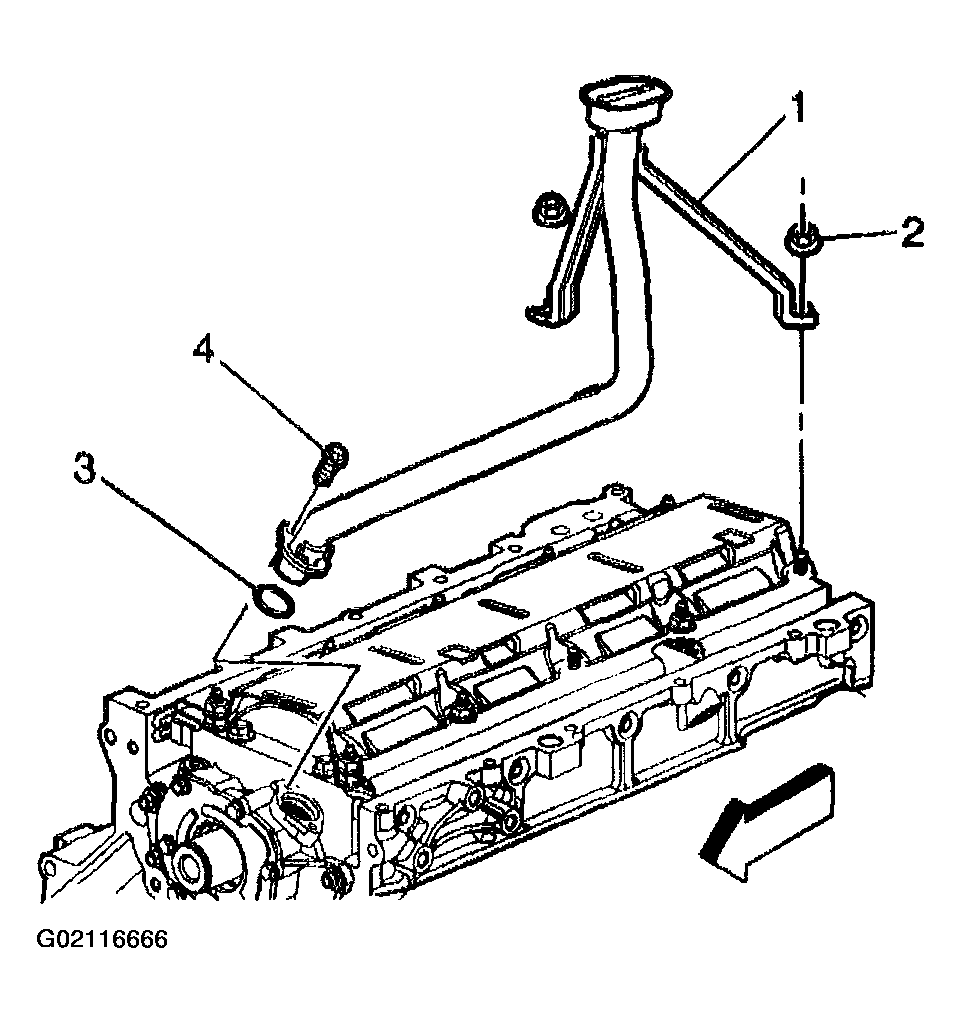

    Fig 1: Removing Oil Pump Screen, Bolt, Nuts & O-Ring Seal
    G02116666Courtesy of GENERAL MOTORS CORP.
  5. Remove the remaining crankshaft oil deflector nuts.
  6. Remove the crankshaft oil deflector.

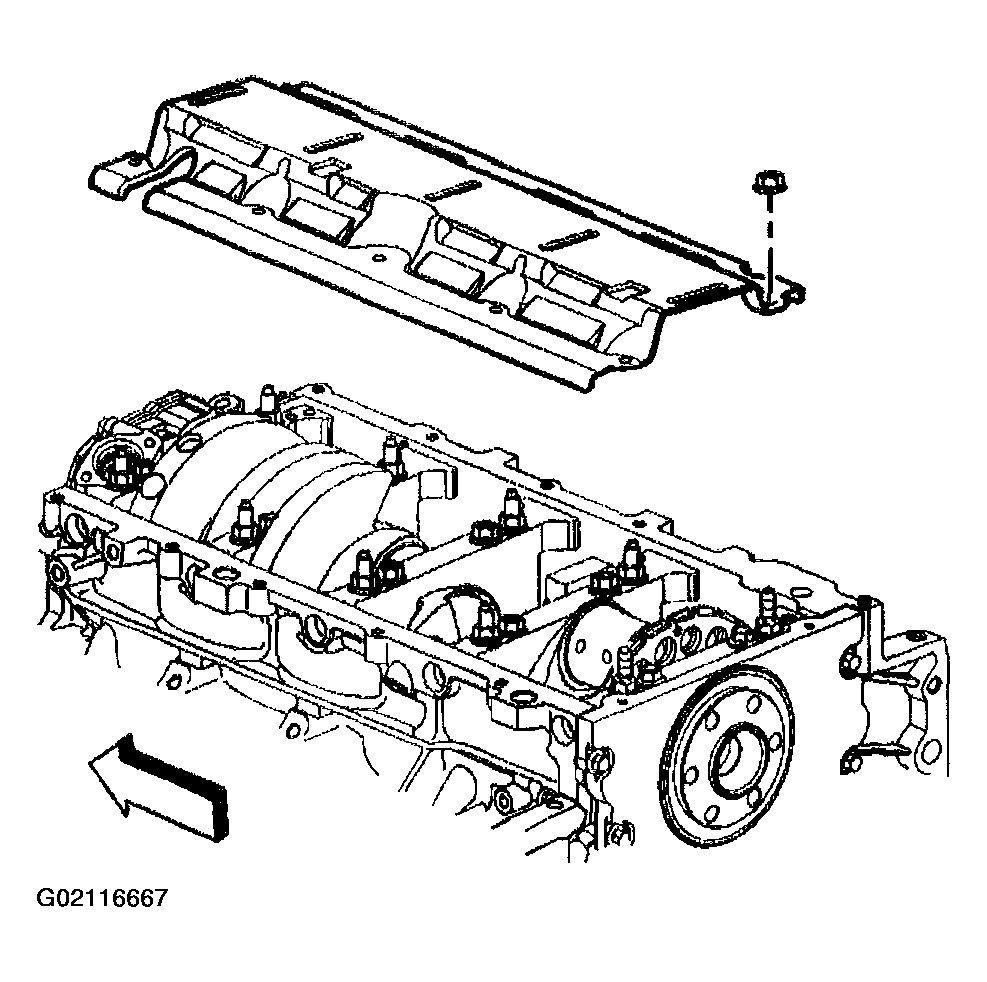

    Fig 2: Removing Crankshaft Oil Deflector & Nuts
    G02116667Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil pump bolts.

    Important:  Do not allow dirt or debris to enter the oil pump assembly, cap ends as necessary.

  8. Remove the oil pump.

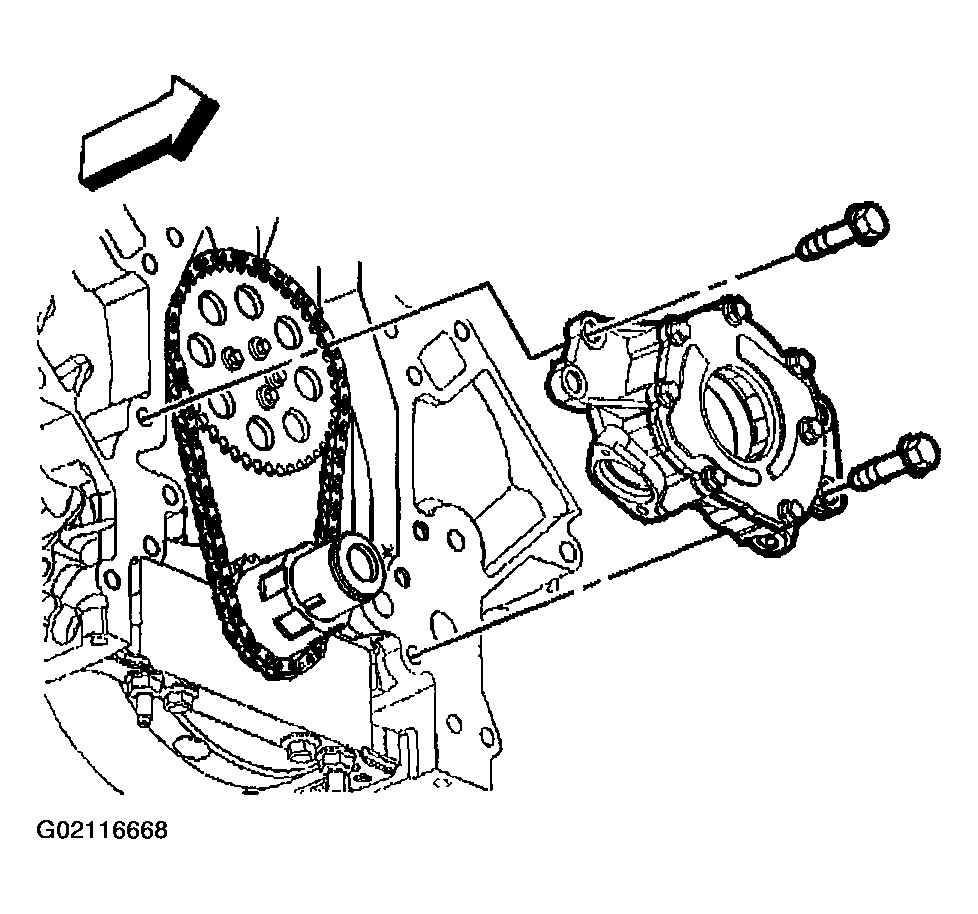

    Fig 3: Removing Oil Pump & Bolts
    G02116668Courtesy of GENERAL MOTORS CORP.
