Measuring the Cylinder for Taper, Out-of-Round, and Oversize
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Adjust the micrometer to a dimension slightly smaller than the bore size.
Adjust the micrometer to 96.0 mm (3.78 in) for 4.8/5.3 liter engines.
Adjust the micrometer to 101.62 mm (4.0 in) for 6.0 liter engines.
- Insert the J 8087 into the micrometer and zero the J 8087 dial.

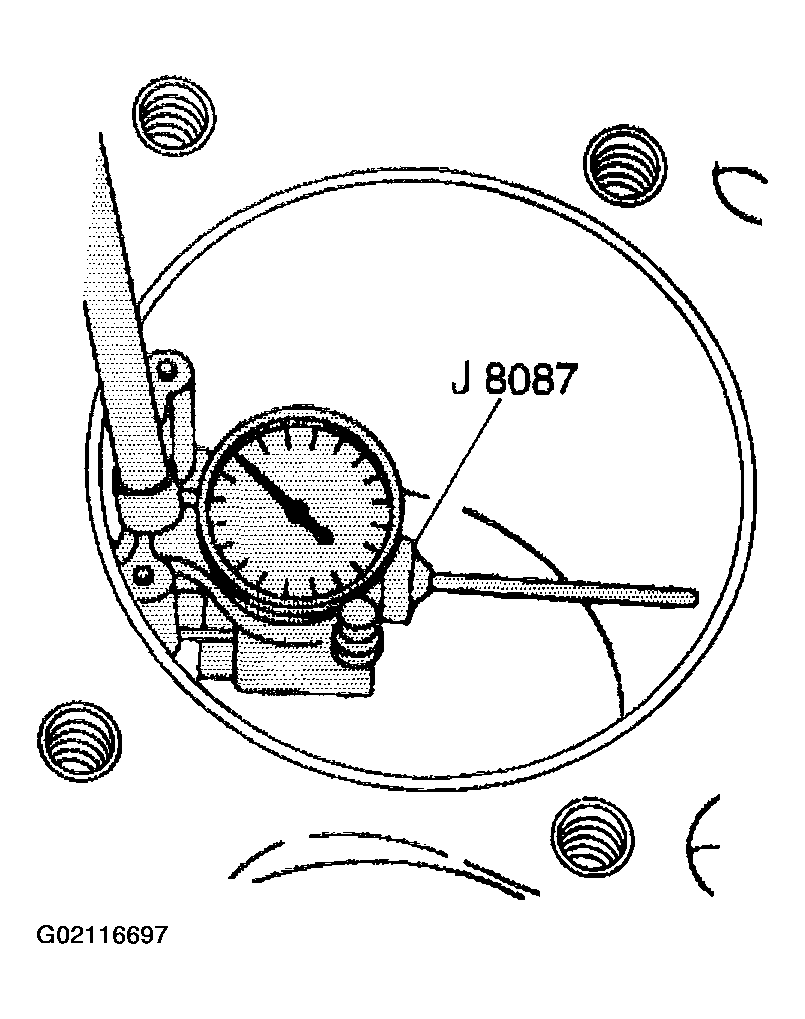

- Using a J 8087
, measure the cylinder bore for taper, out-of-round, and oversize.
Slide the J 8087 up and down throughout the length of the cylinder bore. Check the bore both parallel and perpendicular to the centerline of the crankshaft at the top, center, and bottom of the bore.
A 4.8/5.3 L cylinder bore that measures 96.000-96.018 mm (3.779-3.78 in) may be honed and serviced with a standard size piston.
A 6.0 L cylinder bore that measures 101.618-101.636 mm (4.0007-4.0014 in) may be honed and serviced with a standard size piston.
A cylinder bore that exceeds the maximum diameter must be serviced with an oversized piston.
