Exhaust Manifold Removal - Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the spark plug wires from the spark plugs.
Do not remove the spark plug wires from the ignition coils unless required.
Remove the exhaust manifold, bolts, and gasket.
Discard the gasket.

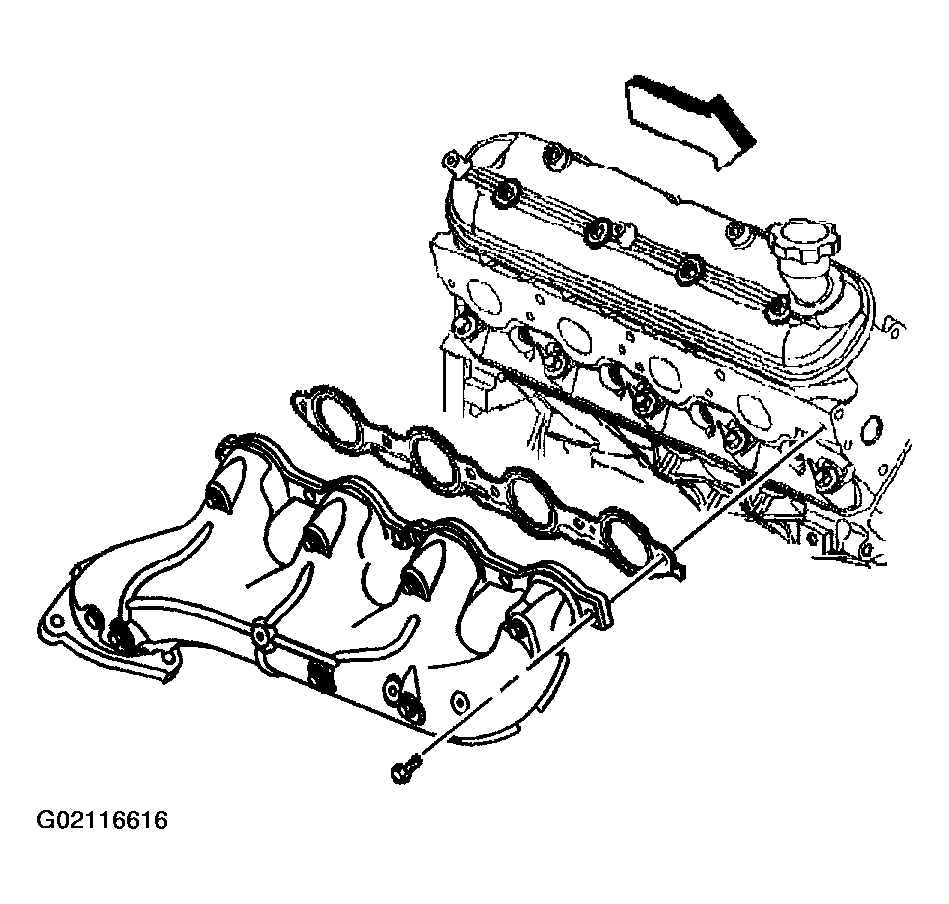

Fig 1: Removing Exhaust Manifold, Bolts & Gasket (Right)
Courtesy of GENERAL MOTORS CORP.

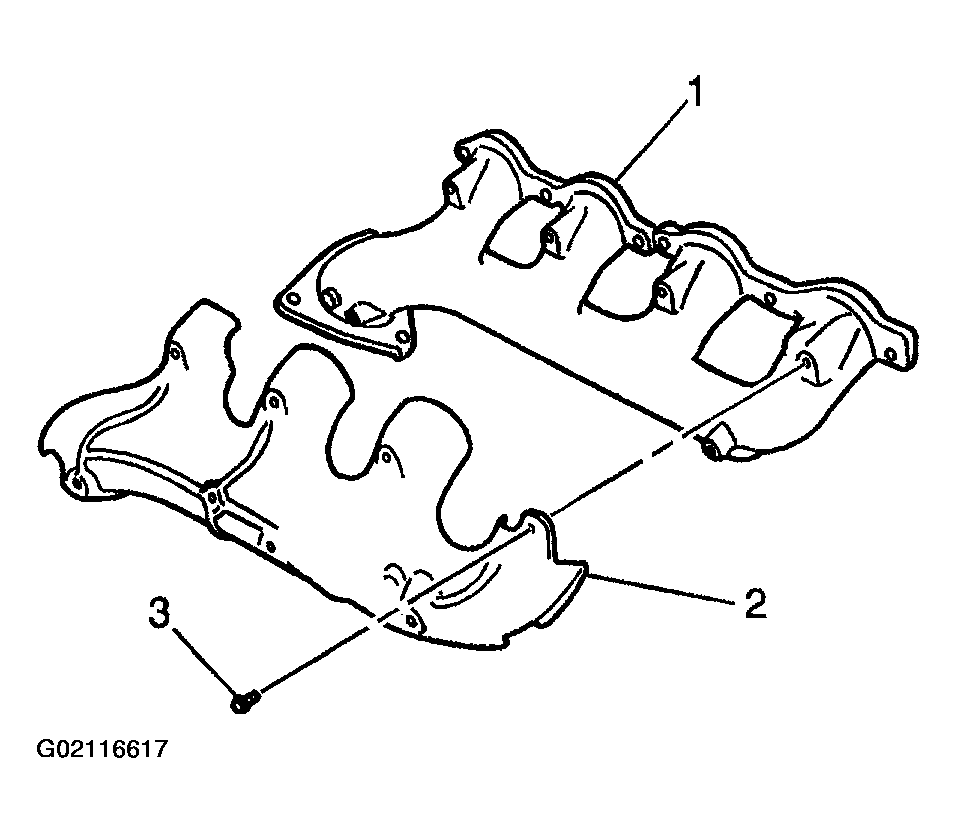

Remove the heat shield (2) and bolts (3) from the manifold (1), if required.

Fig 2: Removing Heat Shield & Bolts From Manifold (Right)
Courtesy of GENERAL MOTORS CORP.
