Engine Rear Cover Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear cover bolts.
  2. Remove the rear cover and gasket.
  3. Discard the rear cover gasket.

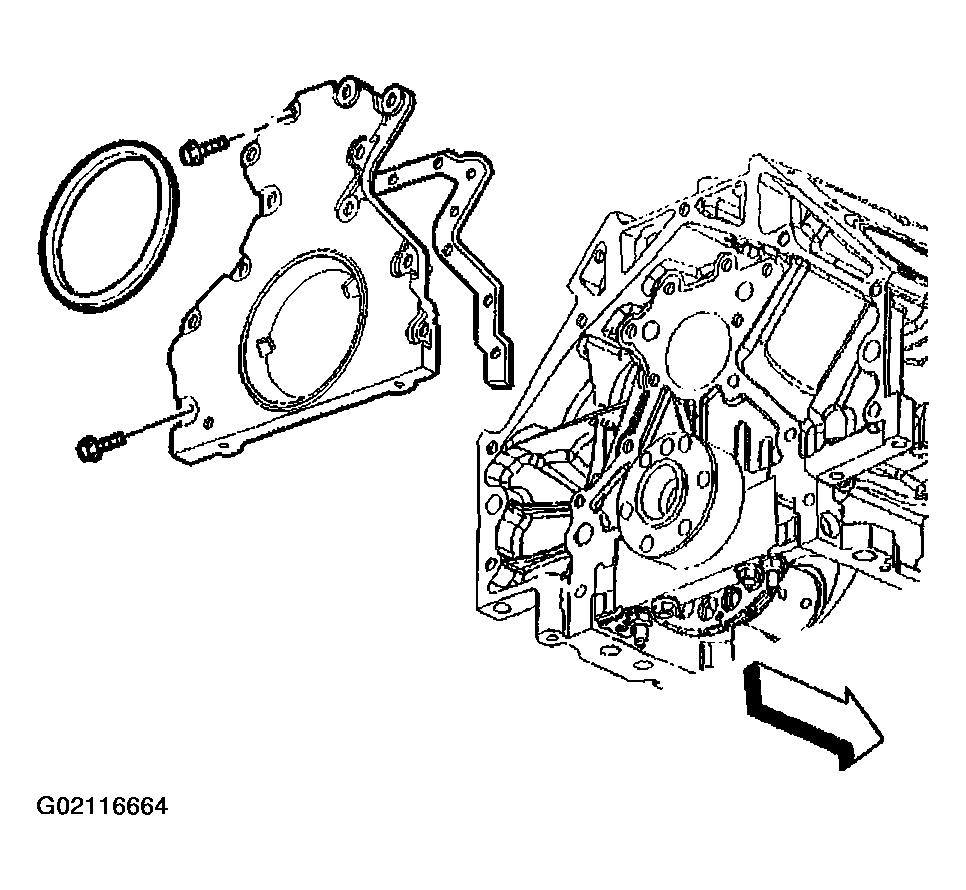

    Fig 1: Removing Rear Cover, Gasket & Bolts
    G02116664Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft rear oil seal (1) from the cover.

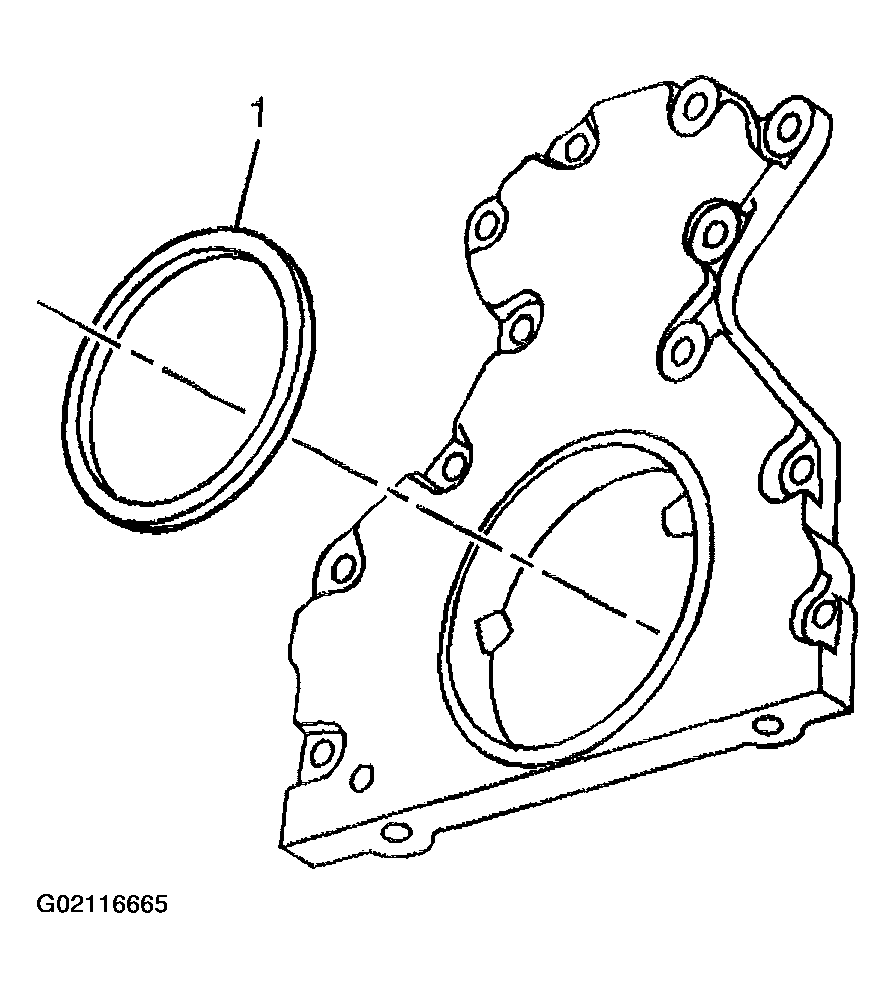

    Fig 2: Removing Crankshaft Rear Oil Seal
    G02116665Courtesy of GENERAL MOTORS CORP.
