Engine Front Cover Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover bolts.
  2. Remove the front cover and gasket.
  3. Discard the front cover gasket.

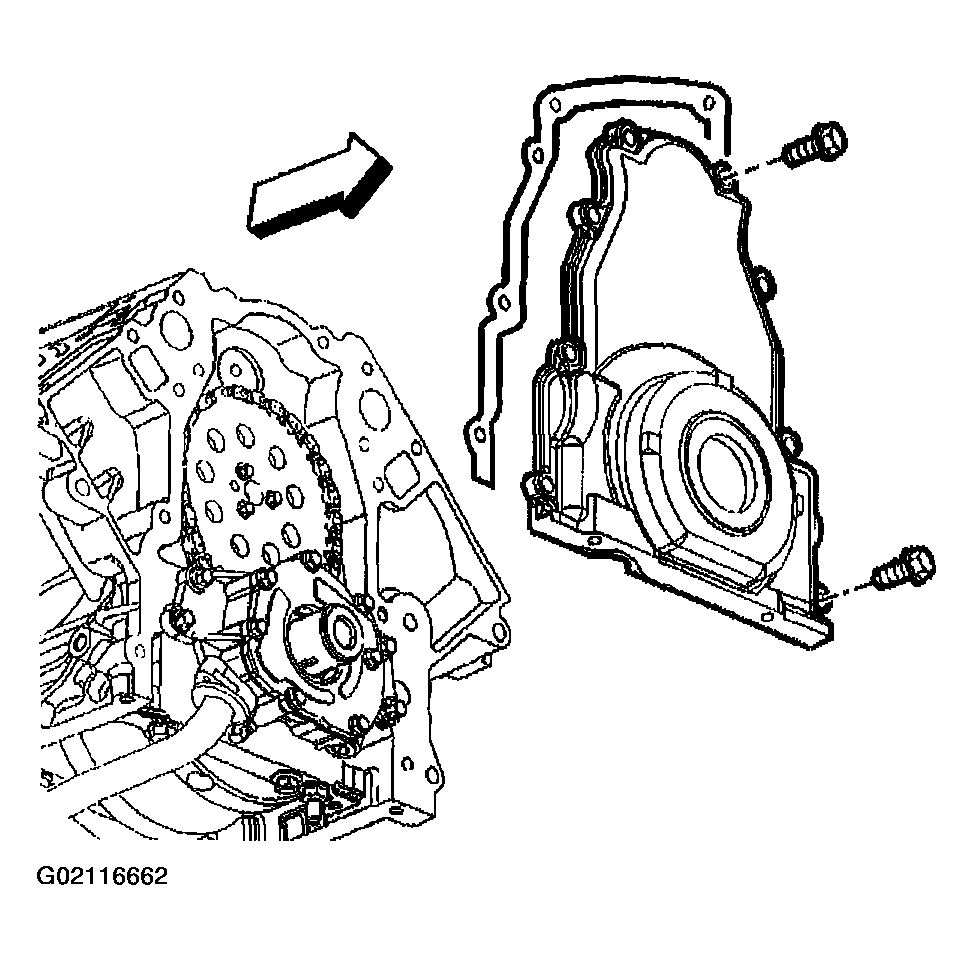

    Fig 1: Removing Front Cover, Gasket & Bolts
    G02116662Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft front oil seal (1) from the cover.

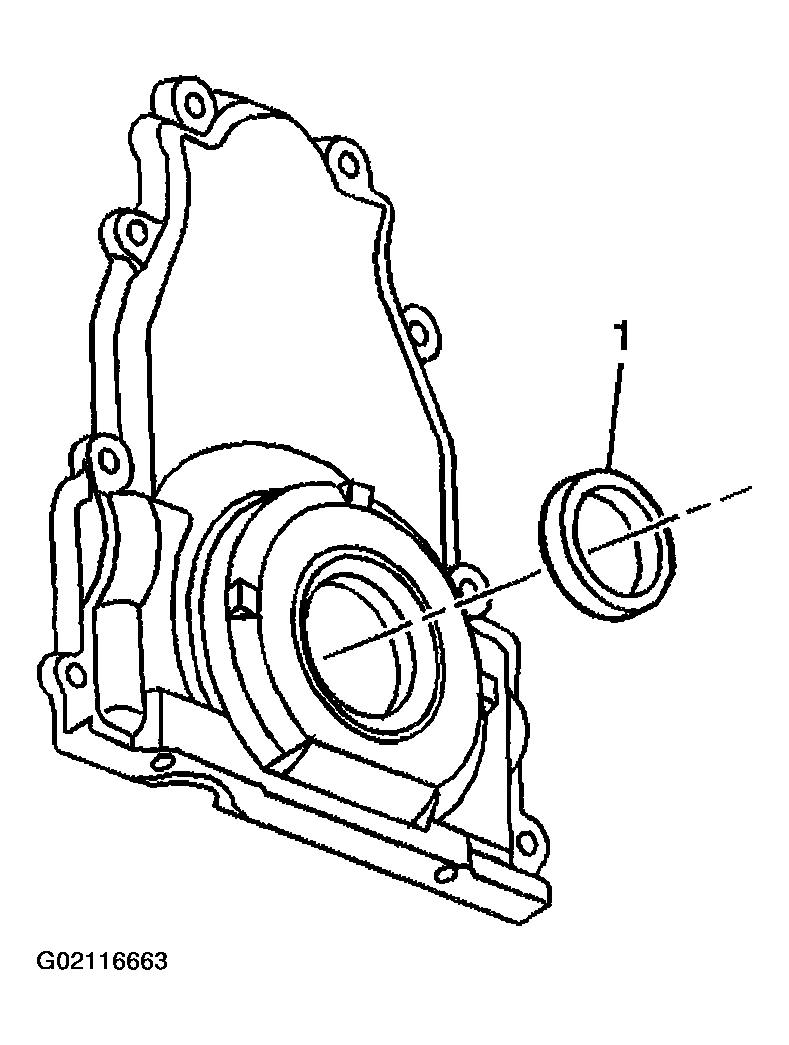

    Fig 2: Removing Crankshaft Front Oil Seal
    G02116663Courtesy of GENERAL MOTORS CORP.
