Engine Flywheel Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a 3 stage tightening process.

Remove the engine flywheel bolts.
Remove the automatic transmission engine flywheel.

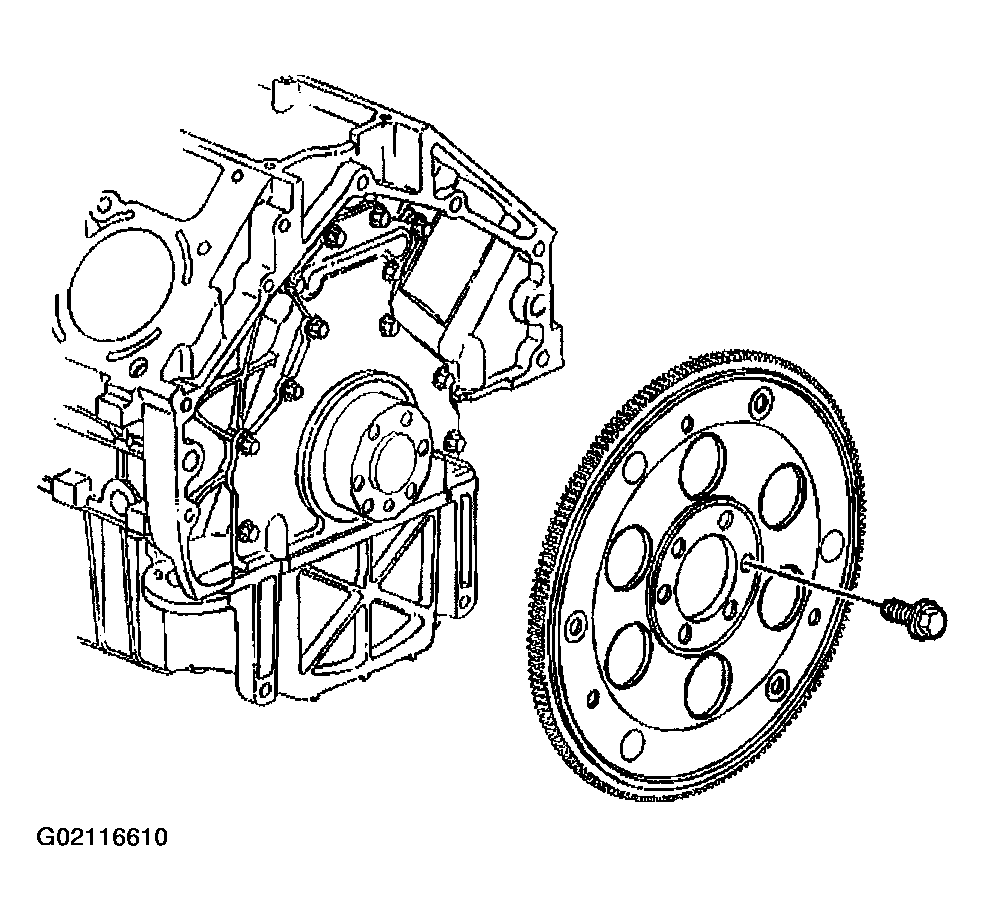

Fig 1: Removing Engine Flywheel Bolts
Courtesy of GENERAL MOTORS CORP.
Install 2 M11x1.5 mm bolts (1) into the threaded holes of the spacer, if applicable.
Rotate the bolts clockwise to remove the spacer.

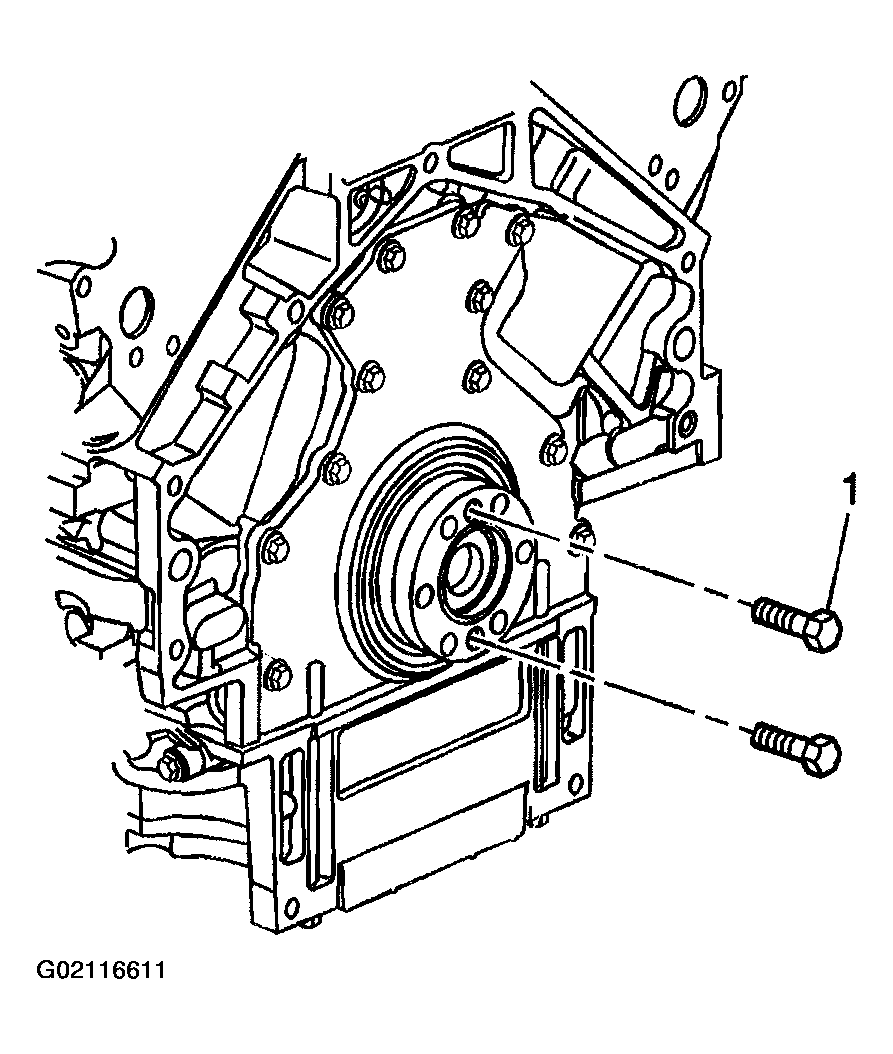

Fig 2: Removing Bolts Into Threaded Holes Of Spacer
Courtesy of GENERAL MOTORS CORP.
Remove the spacer from the rear of the crankshaft, if applicable.

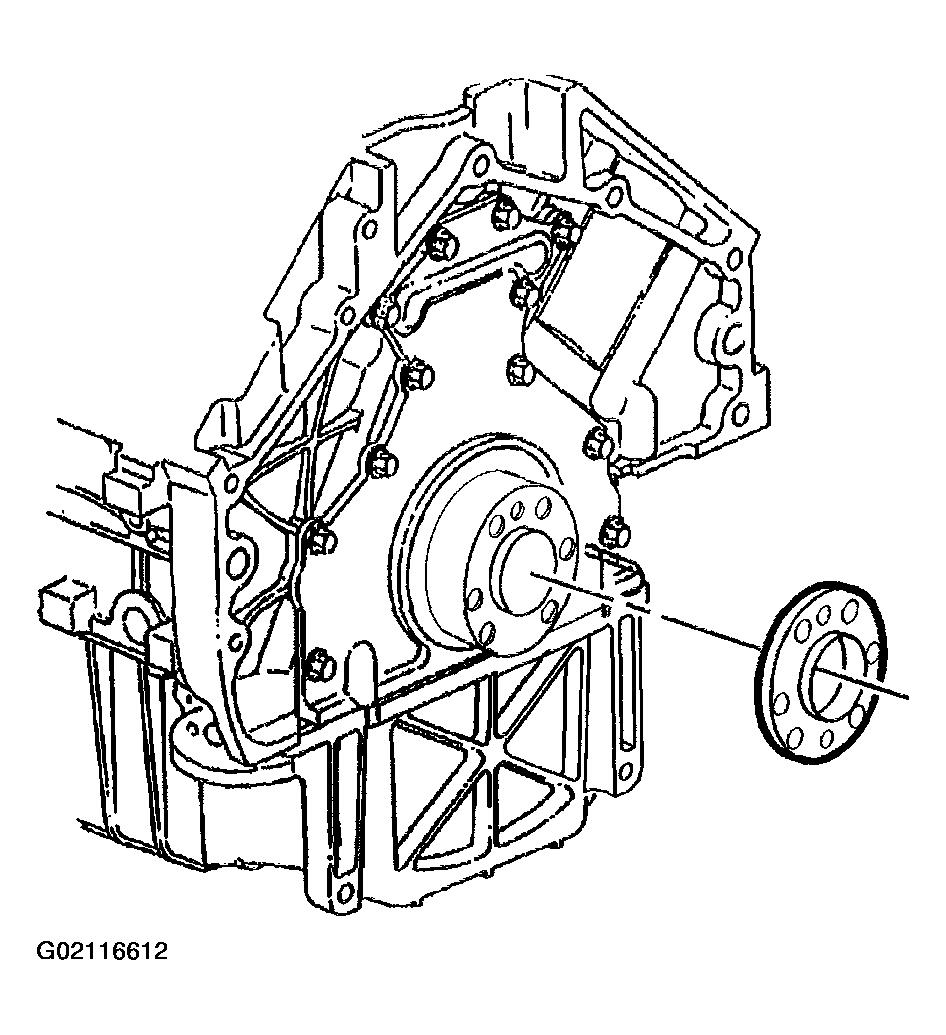

Fig 3: Removing Spacer From Rear Of Crankshaft
Courtesy of GENERAL MOTORS CORP.
