Cylinder Head Removal - Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs from the cylinder head.

    Important:  The cylinder head bolts can NOT be used again. Install NEW cylinder head bolts during assembly.

  2. Remove the cylinder head bolts.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  3. Remove the cylinder head.

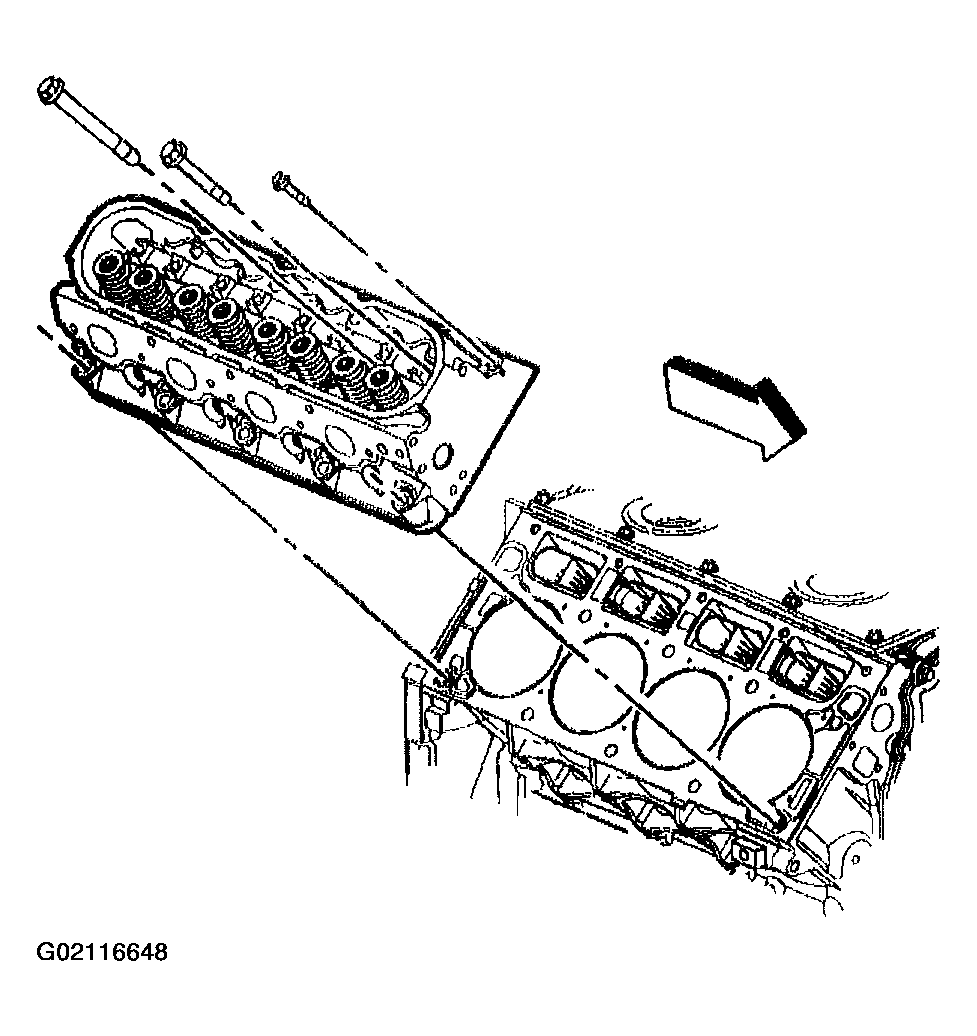

    Fig 1: Removing Cylinder Head & Bolts (Right)
    G02116648Courtesy of GENERAL MOTORS CORP.
  4. Remove the gasket.
  5. Discard the gasket.
  6. Discard the cylinder head bolts.

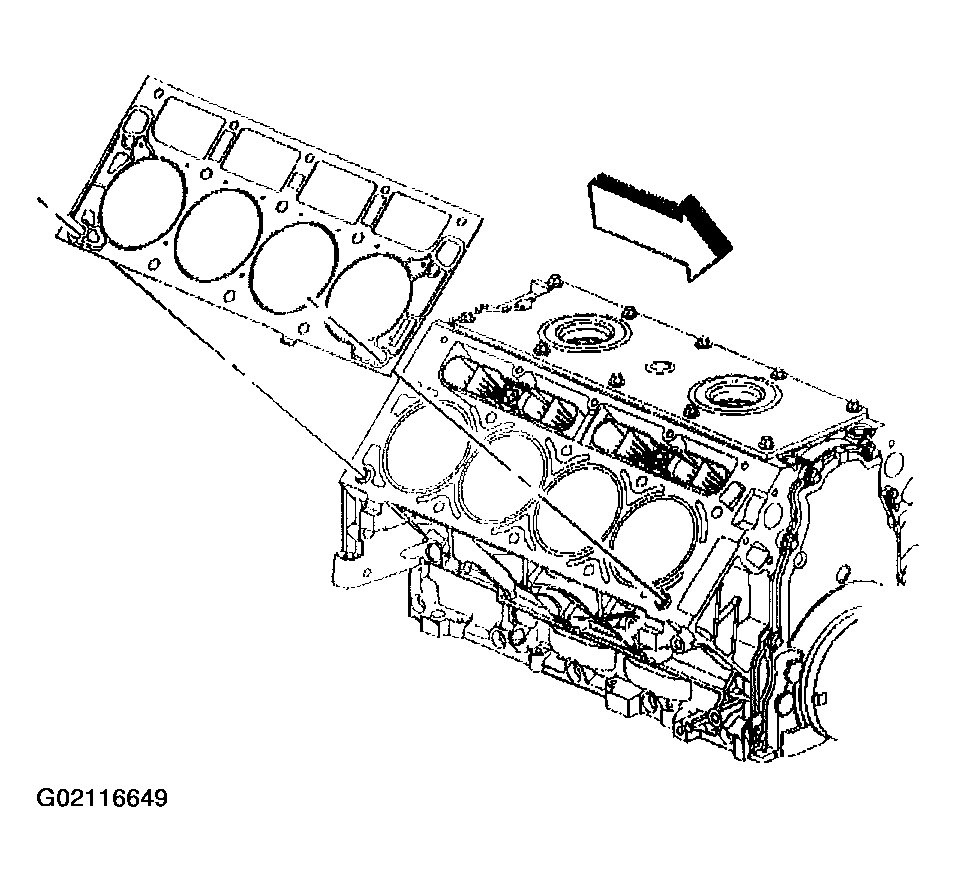

    Fig 2: Removing Gasket (Right)
    G02116649Courtesy of GENERAL MOTORS CORP.
