Cleaning Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

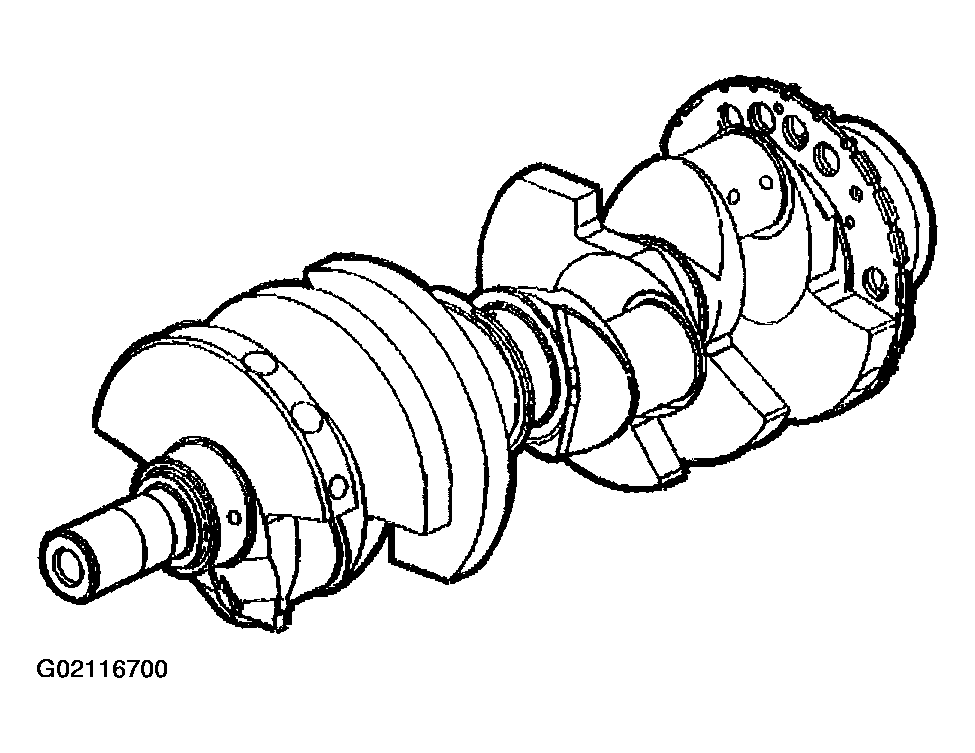

Fig 1: Cleaning Crankshaft With Solvent

Courtesy of GENERAL MOTORS CORP.

Important: Use care when handling the crankshaft. Avoid damage to the bearing surfaces or the lobes of the crankshaft position reluctor ring. Damage to the teeth of the crankshaft position reluctor ring may effect On-Board Diagnostics (OBD) II system performance.

Clean the crankshaft with solvent.
Thoroughly clean all oil passages and inspect for restrictions or burrs.
CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
Dry the crankshaft with compressed air.
