Crankshaft Balancer Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
- J 41816 Crankshaft Balancer Remover
- J 41816-2 Crankshaft End Protector
- J 42386-A Flywheel Holding Tool
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
Important:
- Do not use the crankshaft balancer bolt again. Install a NEW crankshaft balancer bolt during final assembly.
- Ensure the teeth of the flywheel holding tool mesh with the teeth of the engine flywheel.

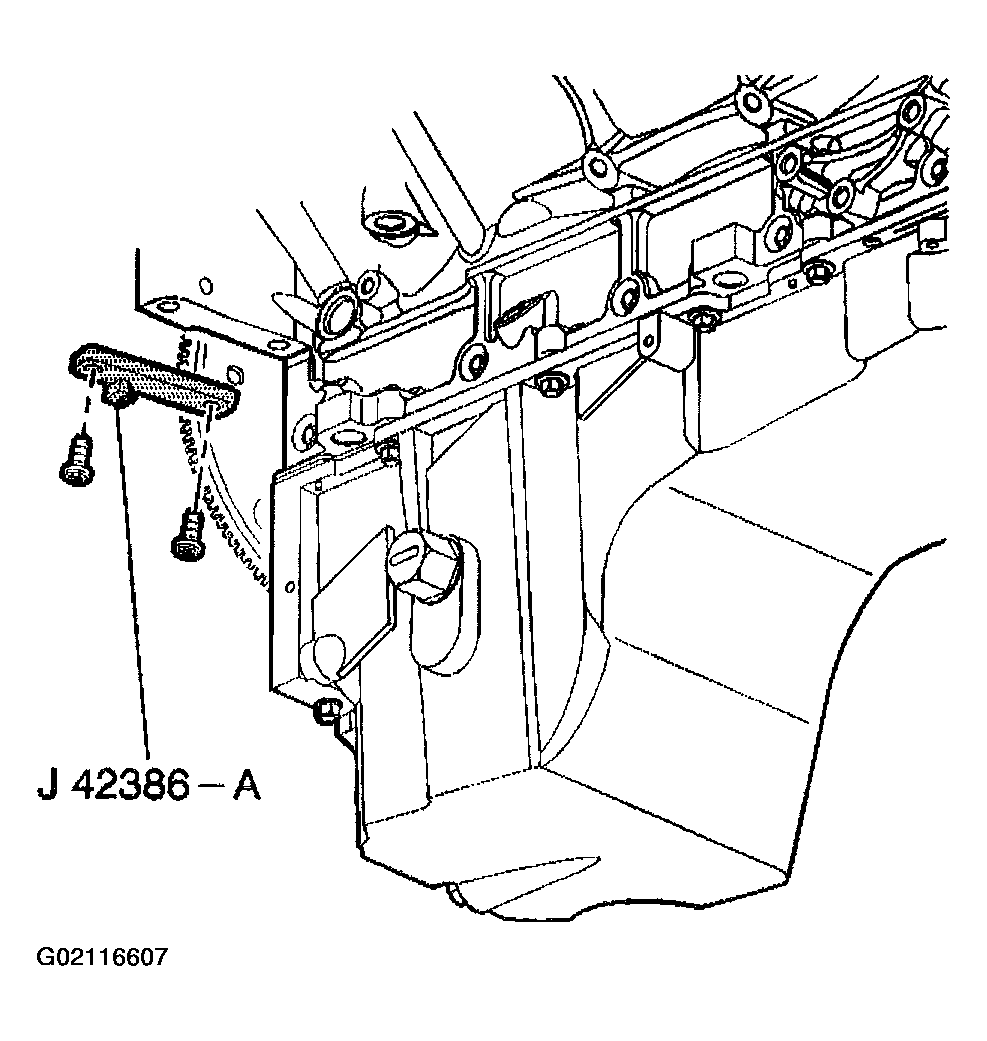

- Install the J 42386-A
and bolts.
Use one M10 - 1.5 x 120 mm and one M10 - 1.5 x 45 mm bolt for proper tool operation.
Tighten
Tighten the J 42386-A bolts to 50 N.m (37 lb ft).
- Remove the crankshaft balancer bolt.
Do not discard the crankshaft balancer bolt. The balancer bolt will be used during the balancer installation procedure.

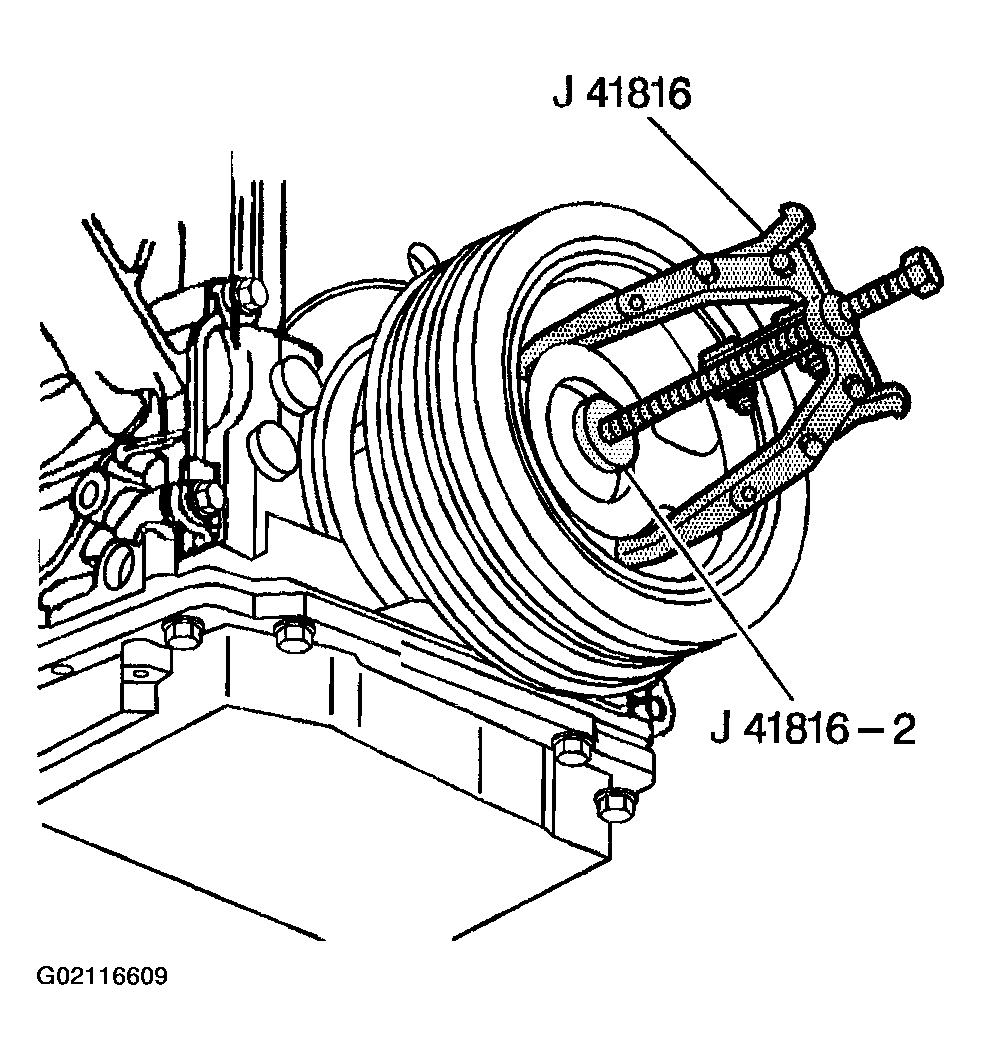

- Use the J 41816 and the J 41816-2 in order to remove the crankshaft balancer.
- Remove the J 42386-A and bolts.
