Crankshaft Balancer Cleaning and Inspection

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Clean the crankshaft balancer in solvent.
Clean the belt grooves of all dirt or debris with a wire brush.
Dry the crankshaft balancer with compressed air.
Inspect the crankshaft balancer for the following:
- Worn, grooved, or damaged hub seal surface
  A crankshaft balancer hub seal surface with excessive scoring, grooves, rust or other damage must be replaced.

  Minor imperfections on the hub seal surface may be removed with polishing compound or fine grade emery cloth.

  Important: In order for the belt to track properly, the belt grooves should be free of all dirt or debris.

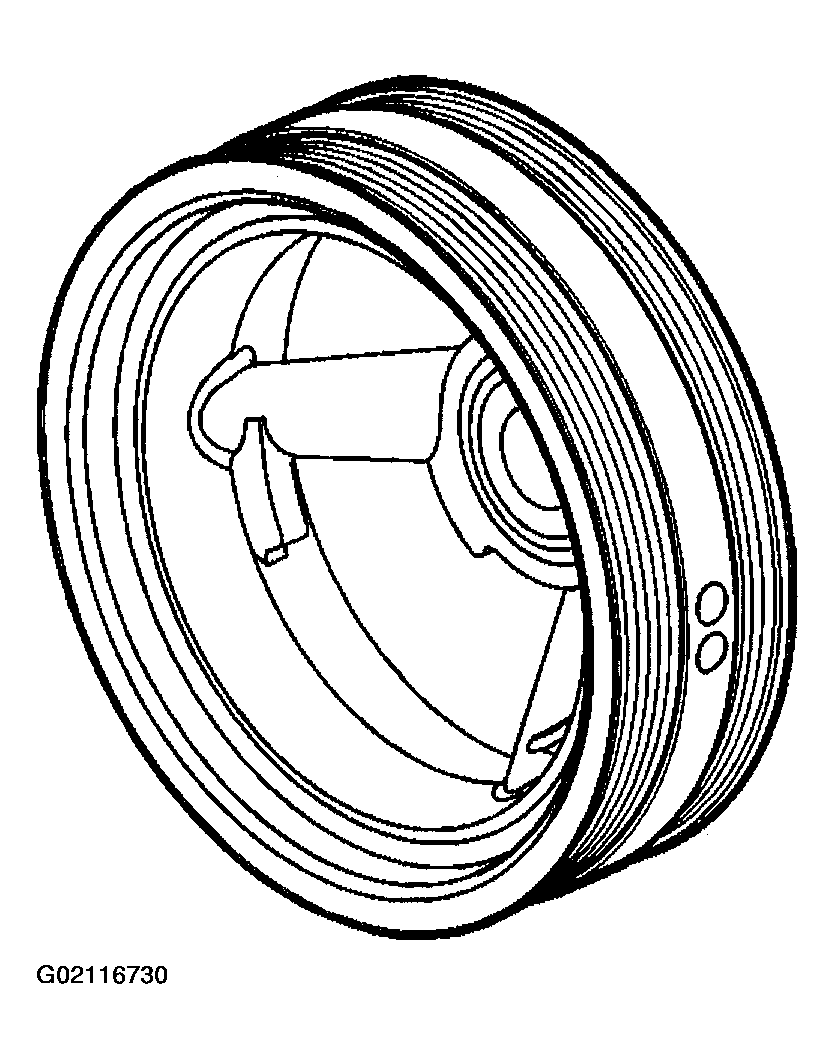

  Fig 1: Inspecting Crankshaft Balancer For Damage
  Courtesy of GENERAL MOTORS CORP.
- Dirty or damaged belt grooves
  The balancer belt grooves should be free of any nicks, gouges, or other damage that may not allow the belt to track properly.

  Minor imperfections may be removed with a fine file.
- Worn, chunking or deteriorated rubber between the hub and pulley
