Disassembled Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

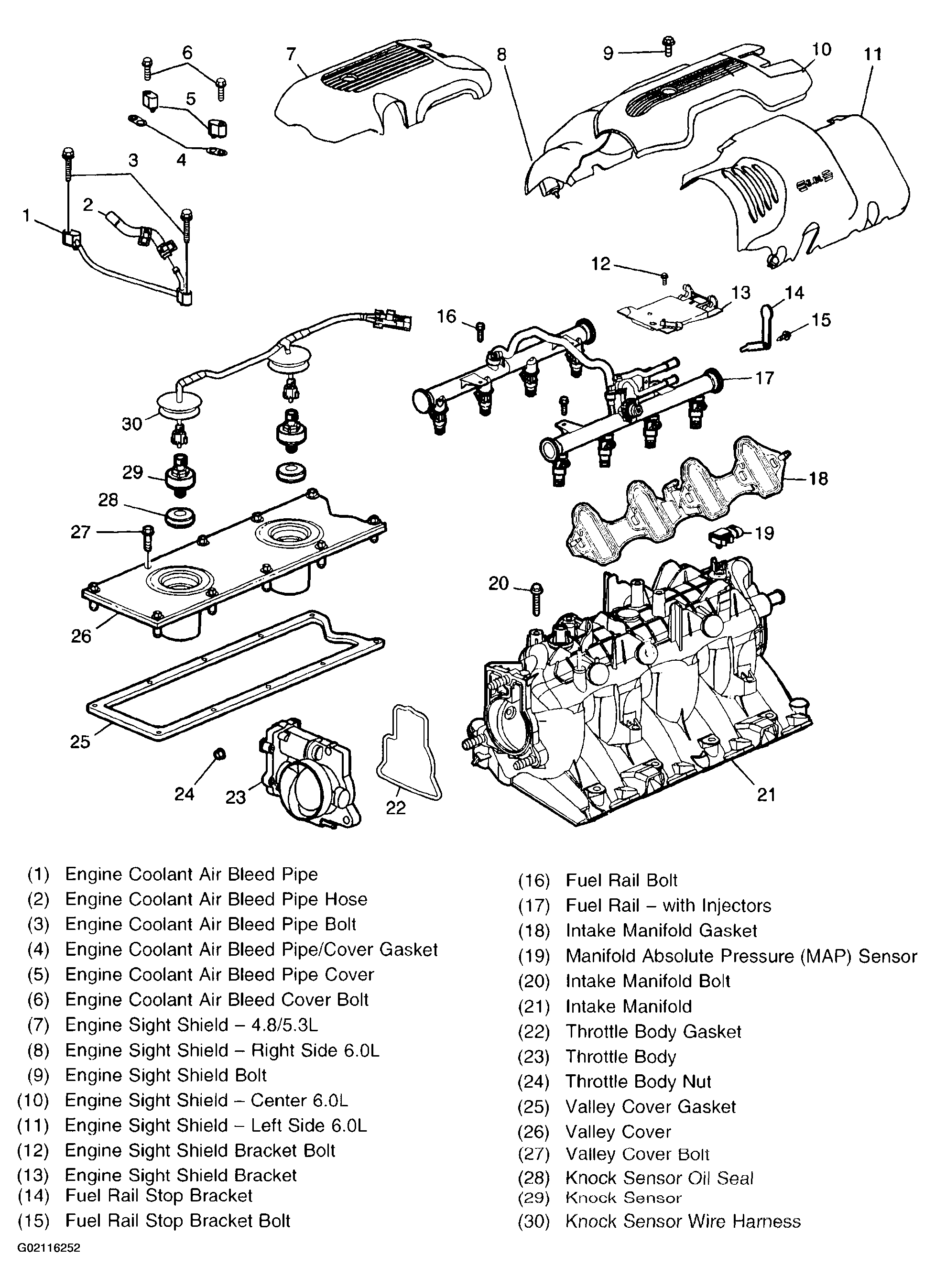

Fig 1: Exploded View Of Intake Manifold/Upper Engine

Courtesy of GENERAL MOTORS CORP.

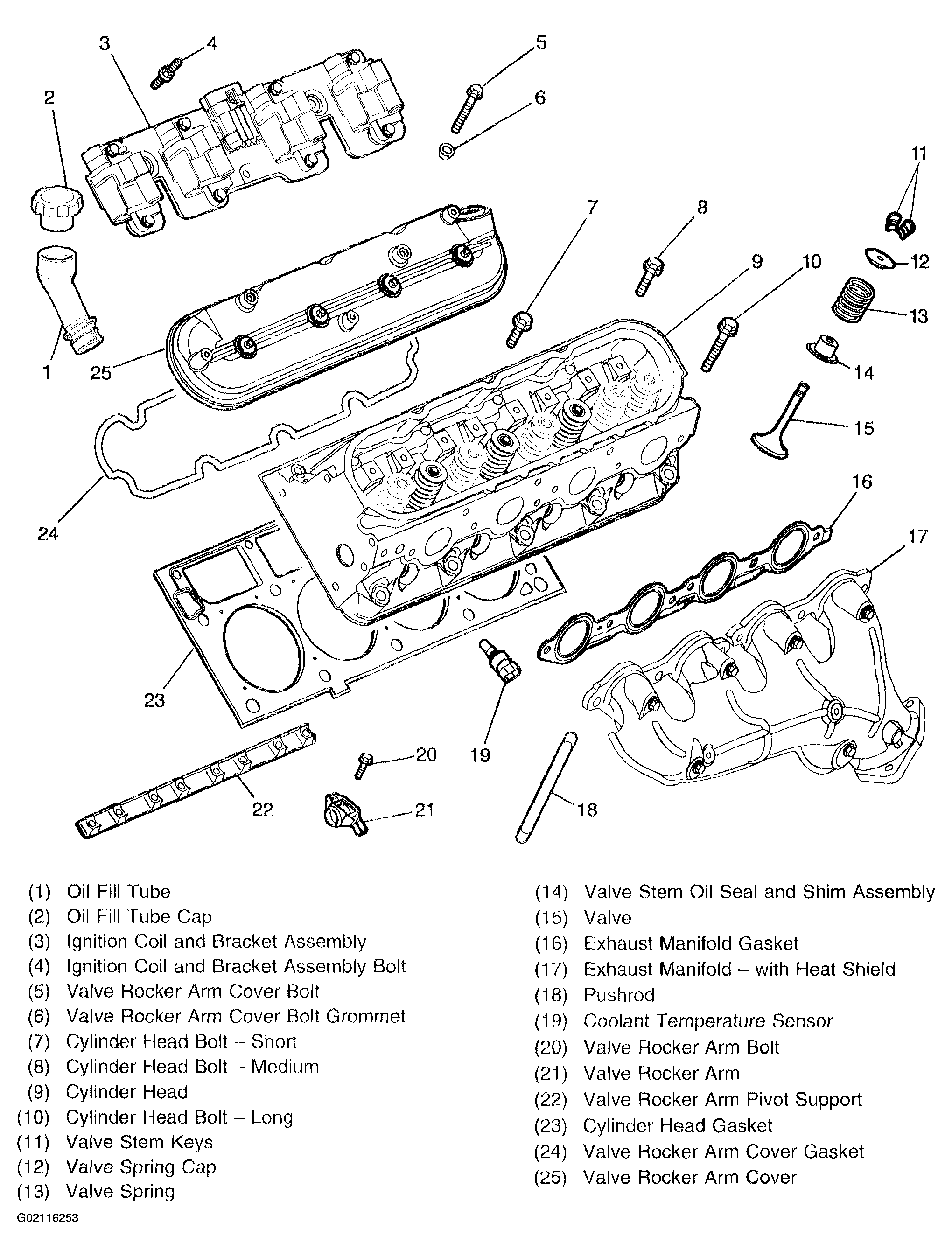

Fig 2: Exploded View Of Cylinder Head/Upper Engine

Courtesy of GENERAL MOTORS CORP.

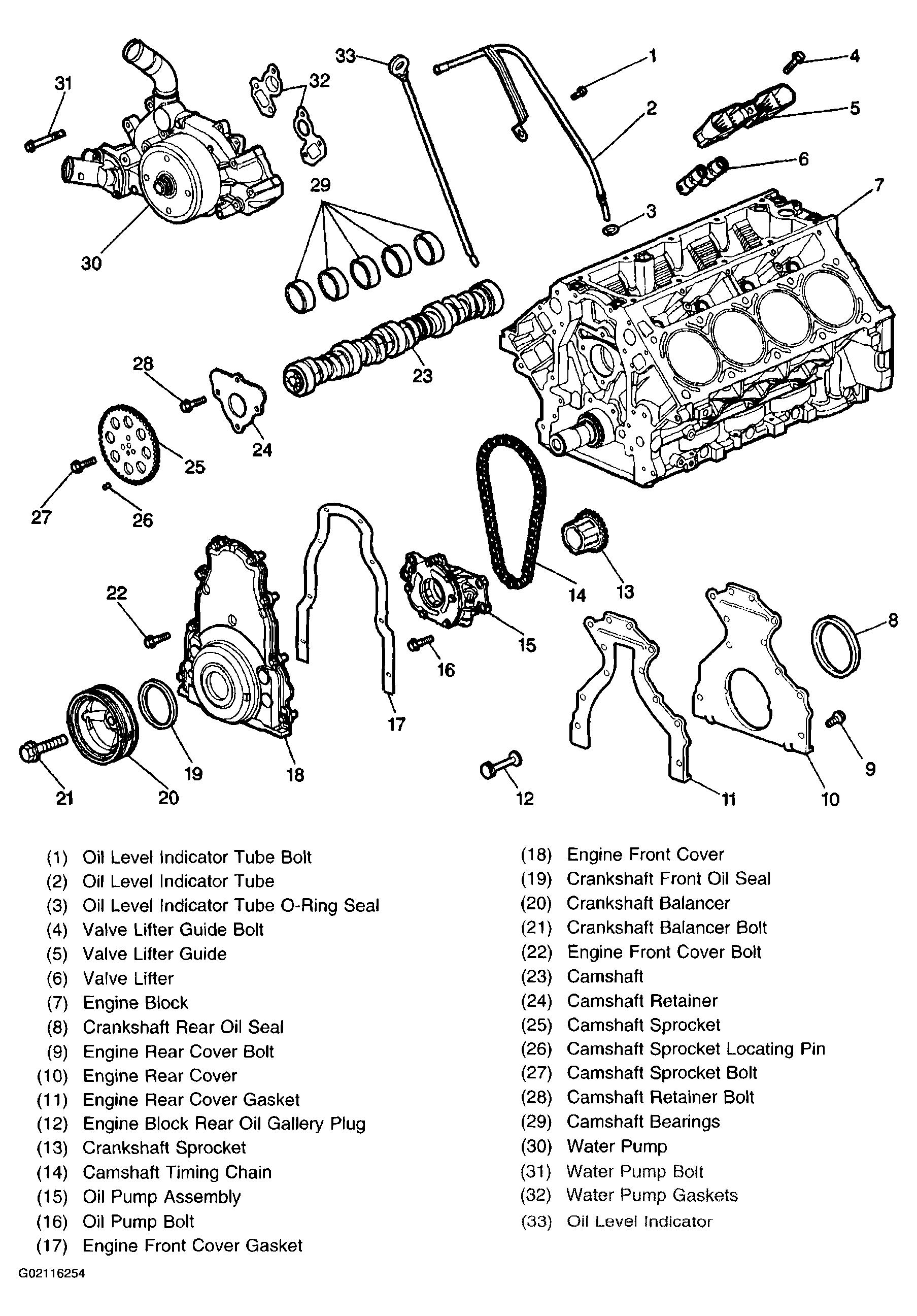

Fig 3: Exploded View Of Lower Front Of Engine

Courtesy of GENERAL MOTORS CORP.

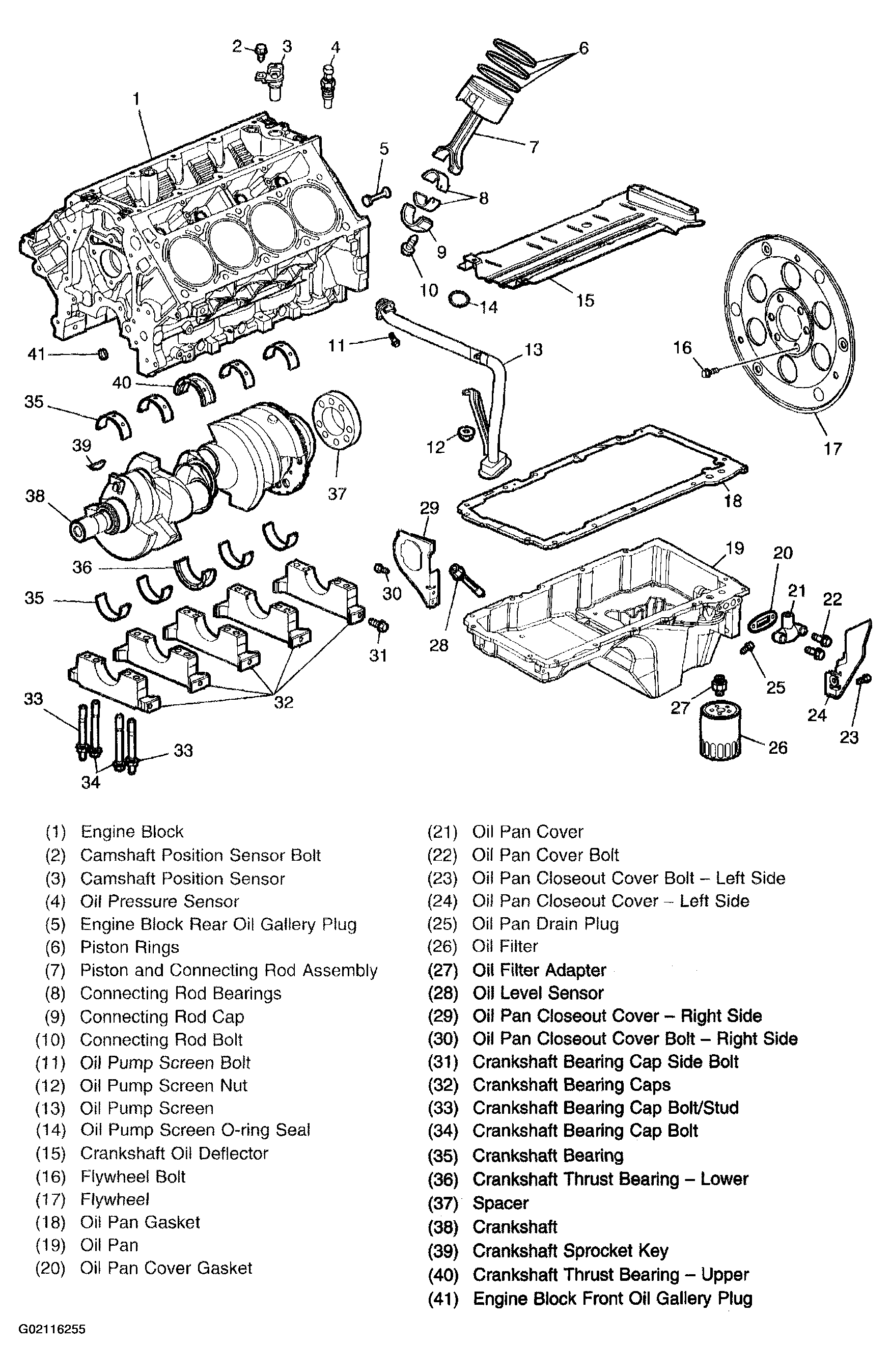

Fig 4: Exploded View Of Lower Engine Assembly

Courtesy of GENERAL MOTORS CORP.

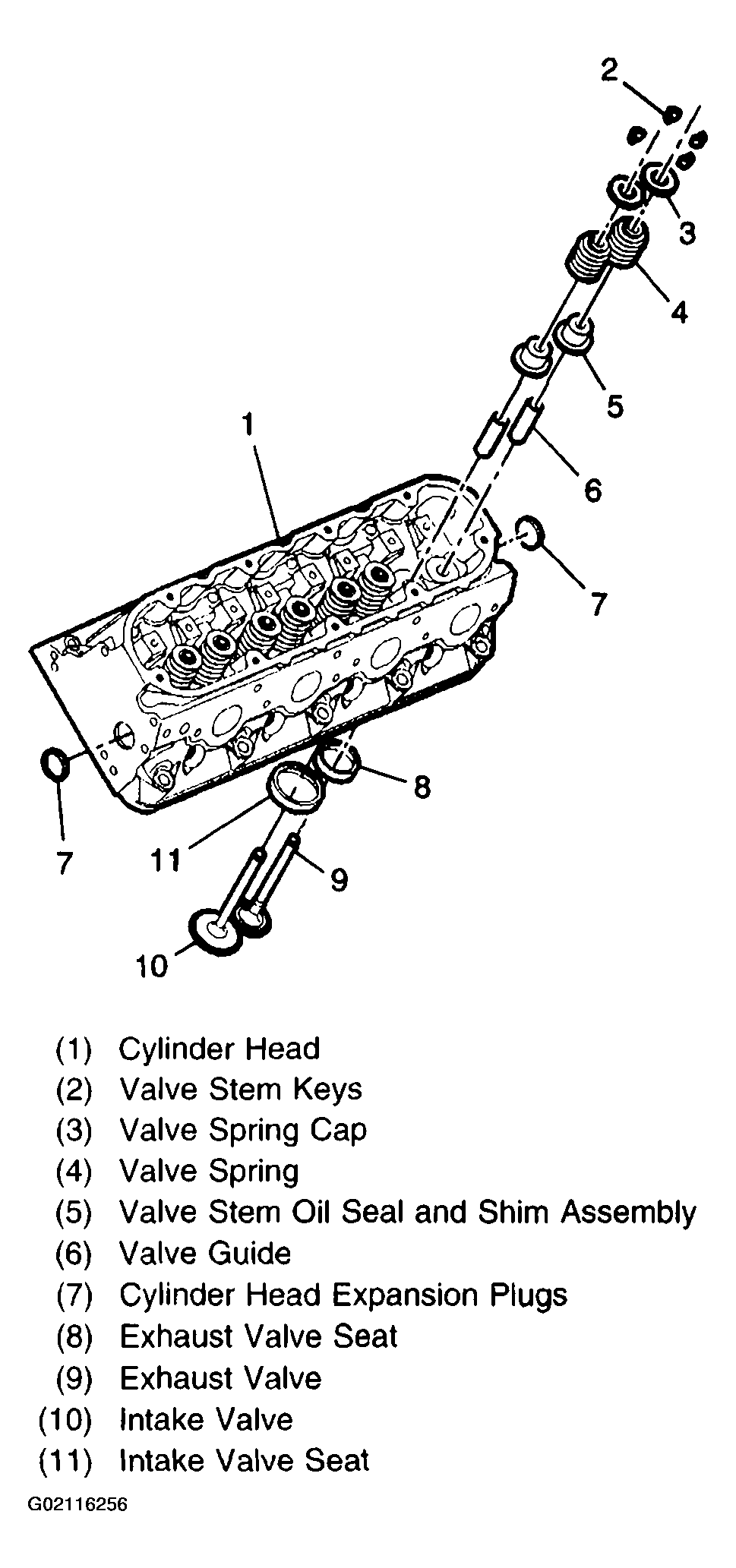

Fig 5: Exploded View Of Cylinder Head Assembly - Aluminum

Courtesy of GENERAL MOTORS CORP.

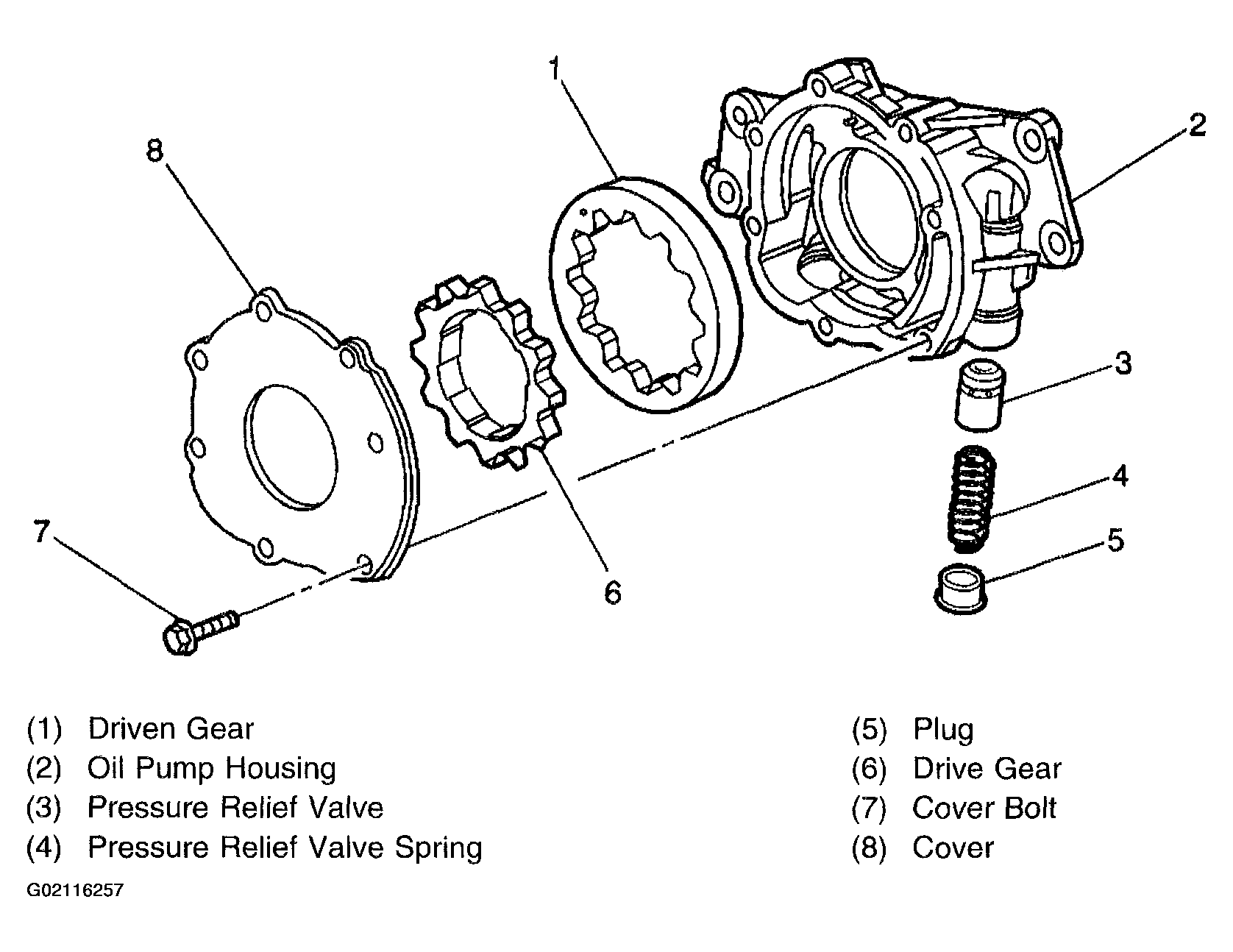

Fig 6: Exploded View Of Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.
