Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the right rear speed sensor.
Tighten

Tighten the speed sensor to 15 N.m (11 lb ft).

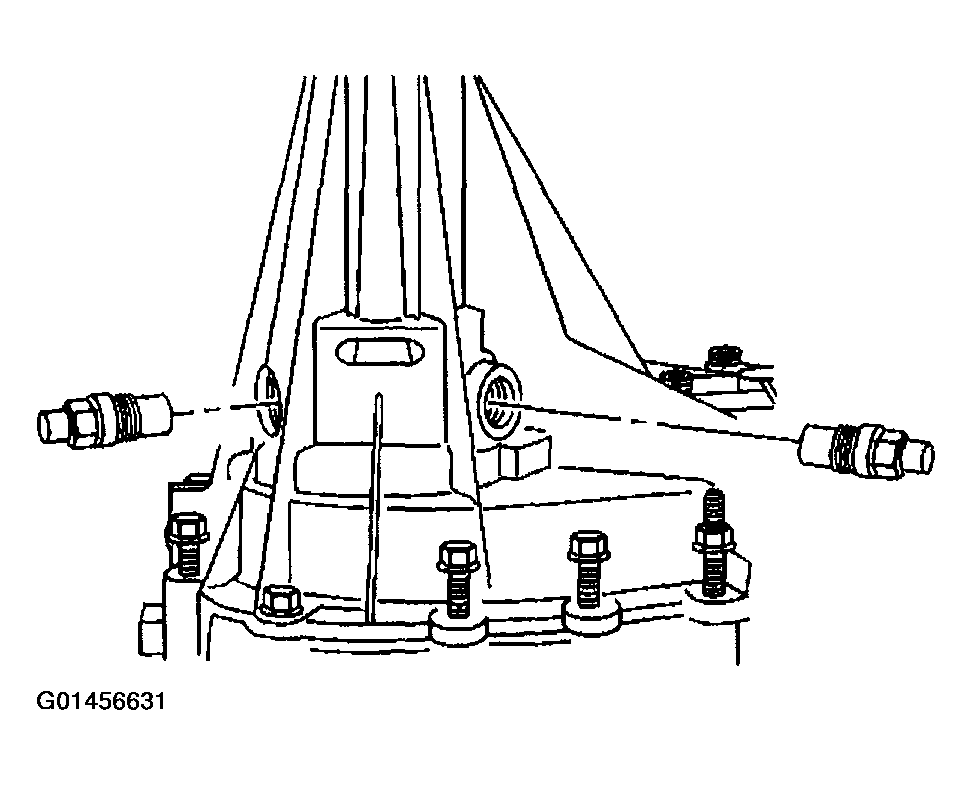

Fig 1: Installing Right Rear Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Connect the right rear speed sensor electrical connector (3).
Lower the vehicle.

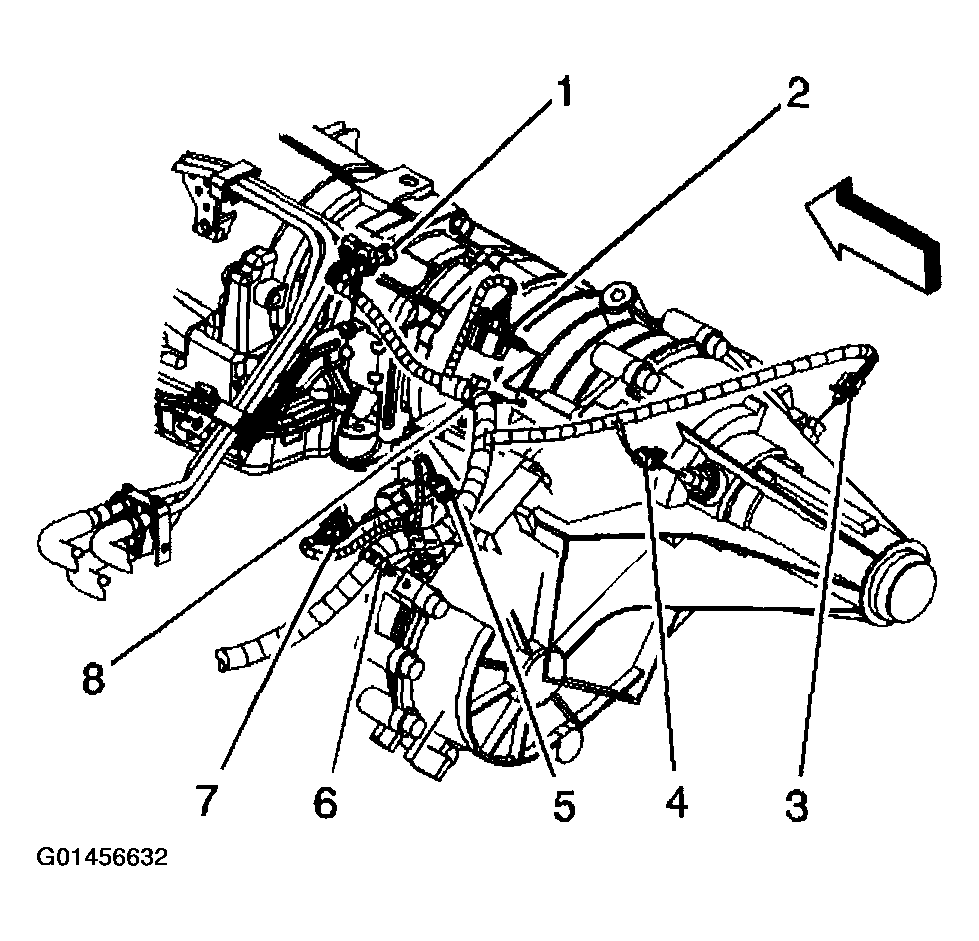

Fig 2: Connecting Right Rear Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
