Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  2. Disconnect the front speed sensor electrical connector (5).

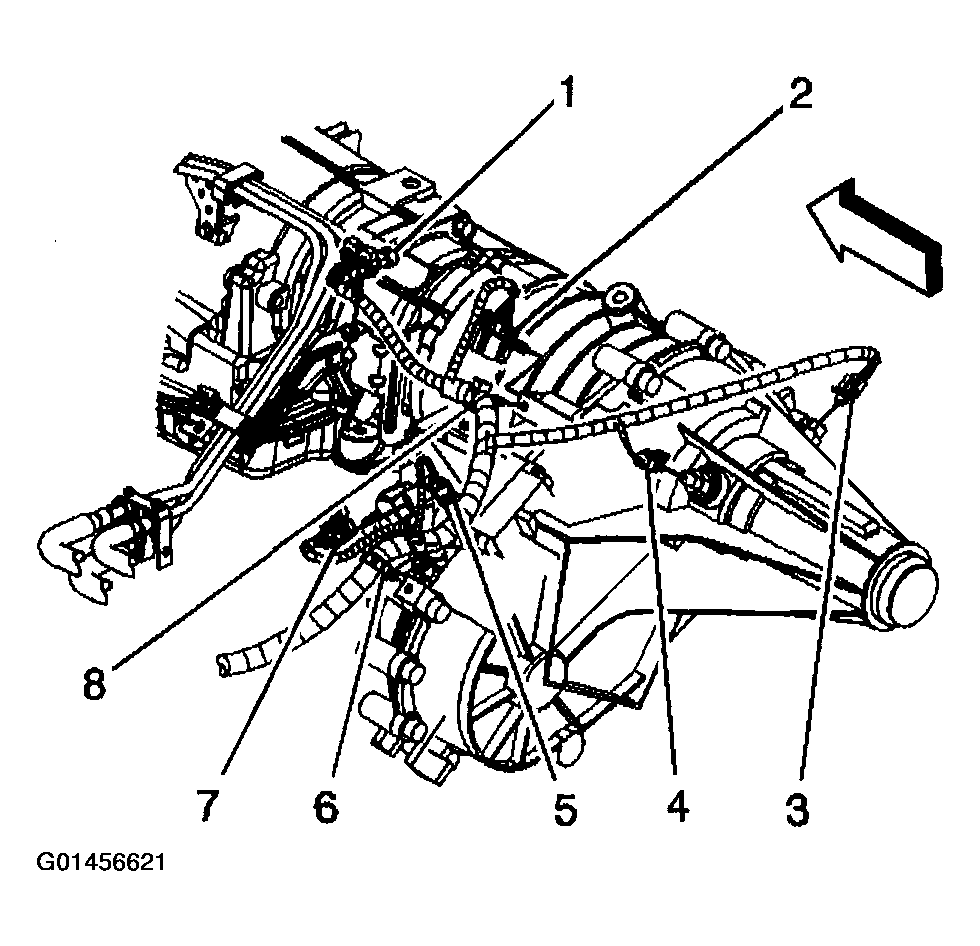

    Fig 1: Disconnecting Front Speed Sensor Electrical Connector
    G01456621Courtesy of GENERAL MOTORS CORP.
  3. Remove the front speed sensor.
    Fig 2: Removing Front Speed Sensor
    G01456622Courtesy of GENERAL MOTORS CORP.
