Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the front speed sensor.

    Tighten

    Tighten the speed sensor to 15 N.m (11 lb ft).

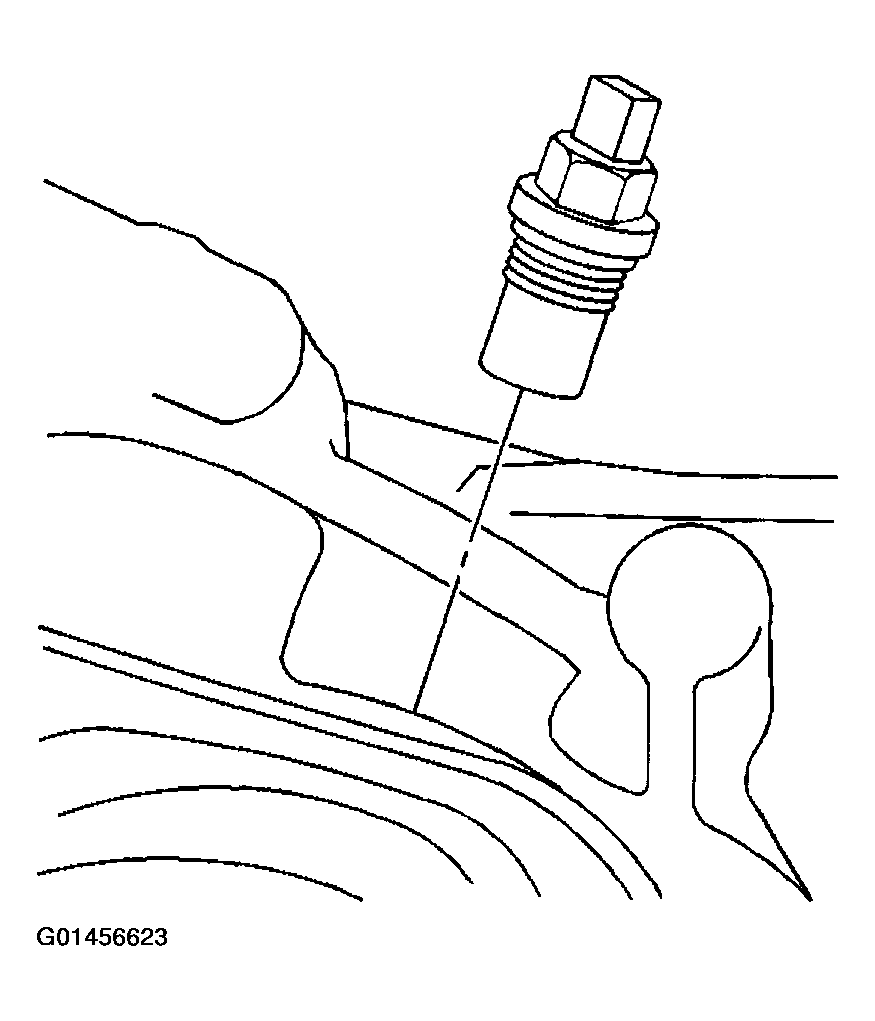

    Fig 1: Installing Front Speed Sensor
    G01456623Courtesy of GENERAL MOTORS CORP.
  2. Connect the front speed sensor electrical connector (5).
  3. Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT  .

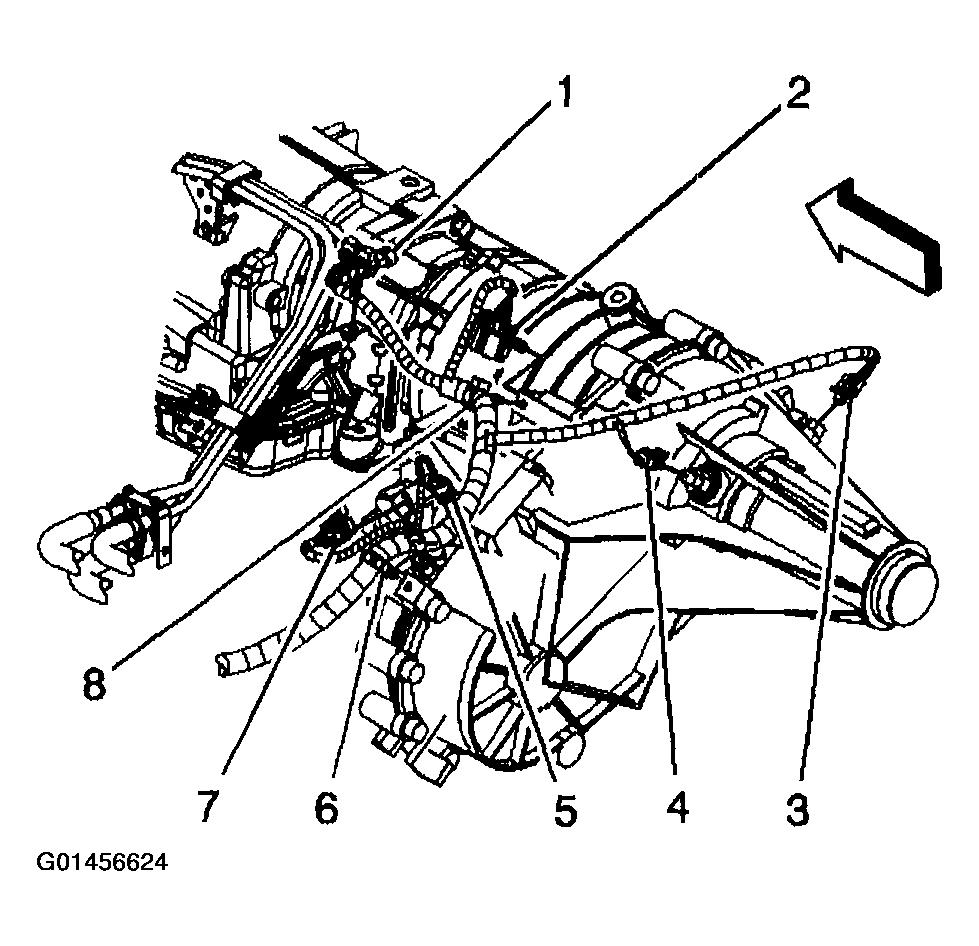

    Fig 2: Connecting Front Speed Sensor Electrical Connector
    G01456624Courtesy of GENERAL MOTORS CORP.
