Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the shift control module electrical connectors.

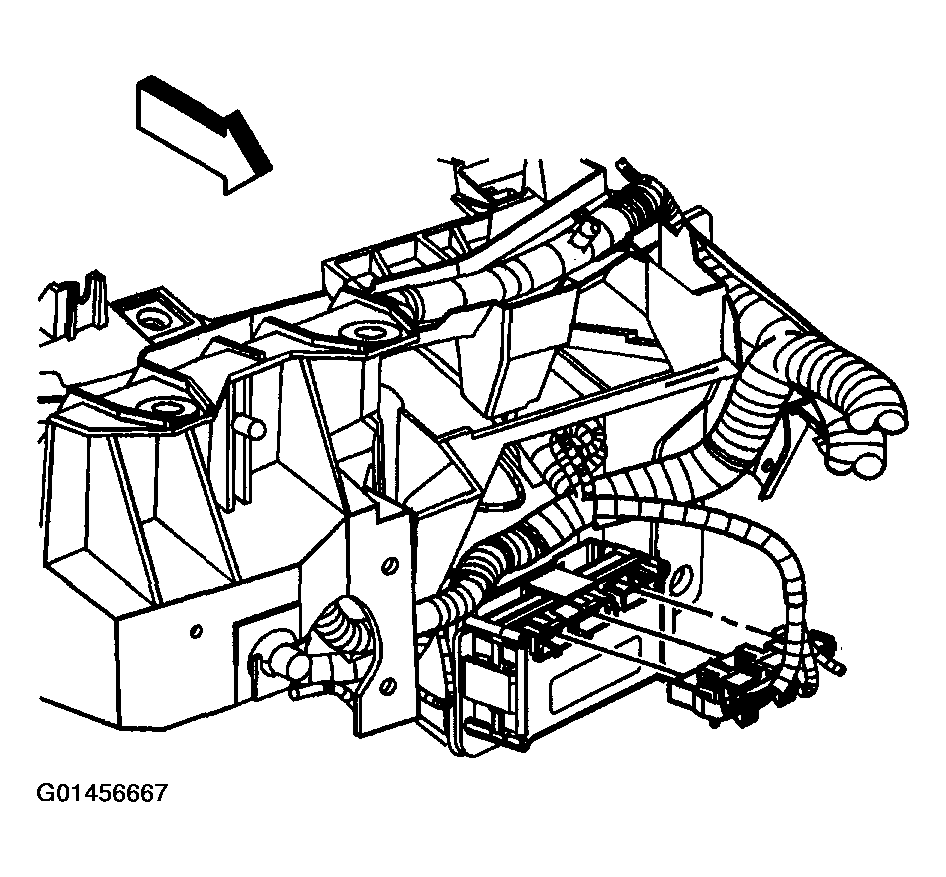

Fig 1: Disconnecting Shift Control Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Unsnap and remove the shift control module from the bracket.

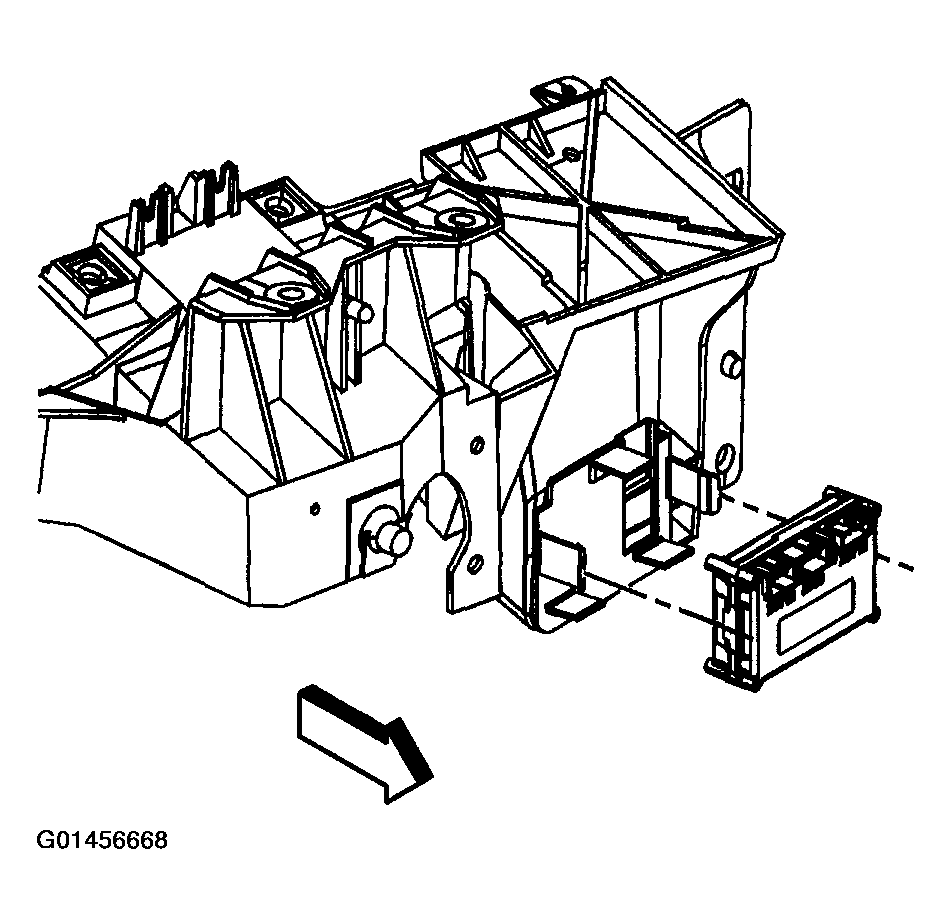

Fig 2: Removing Shift Control Module From Bracket
Courtesy of GENERAL MOTORS CORP.
