Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift control module to the bracket.

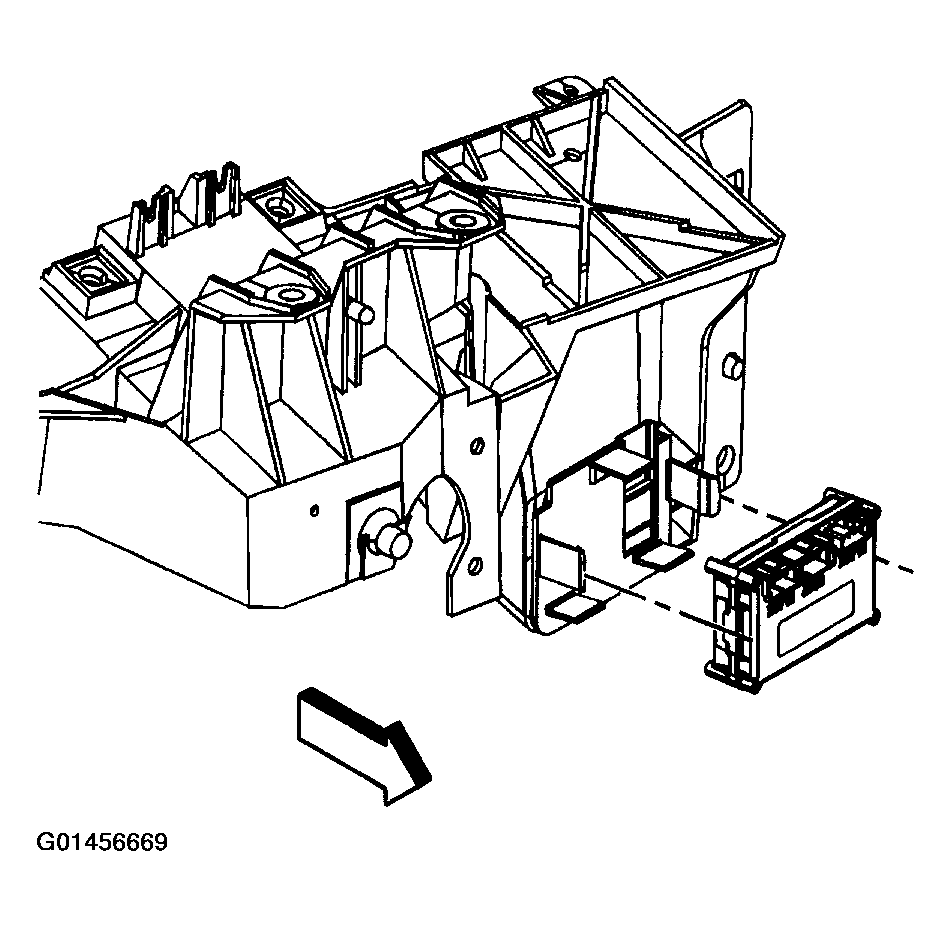

    Fig 1: Installing Shift Control Module To Bracket
    G01456669Courtesy of GENERAL MOTORS CORP.
  2. Connect the shift control module electrical connectors.
  3. Start the engine and test the automatic transfer case system for proper shift operation.

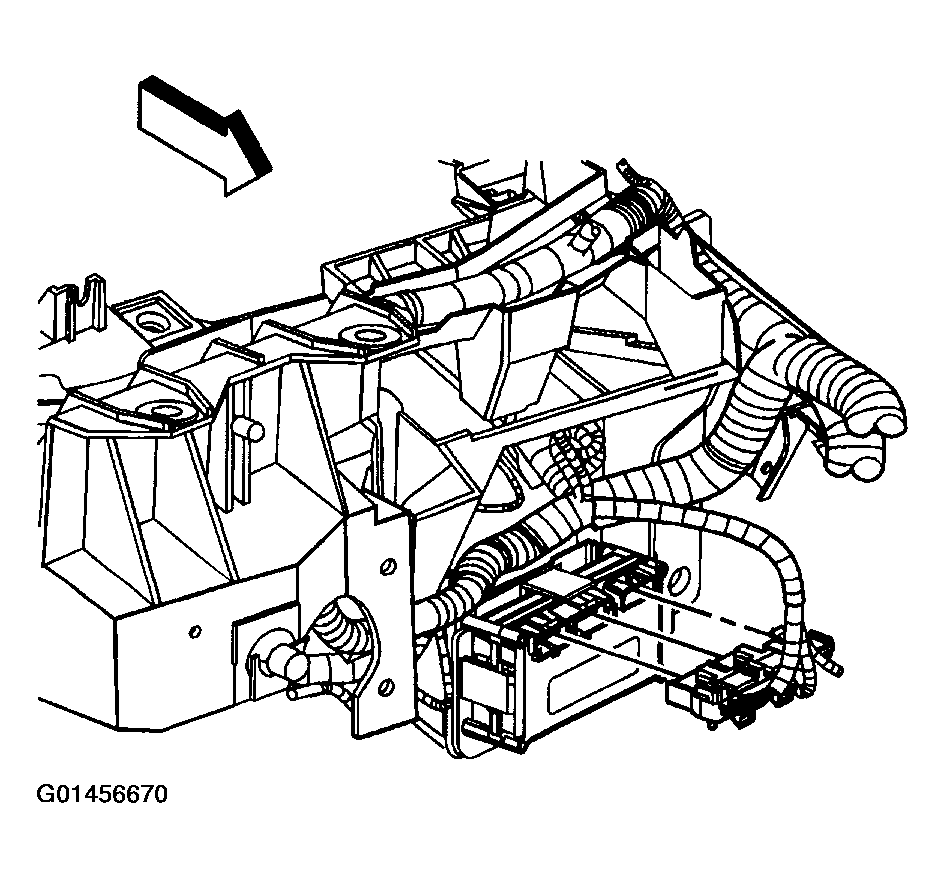

    Fig 2: Connecting Shift Control Module Electrical Connectors
    G01456670Courtesy of GENERAL MOTORS CORP.
