Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT  .
  2. Using a flat-tipped screwdriver, remove the input shaft seal.

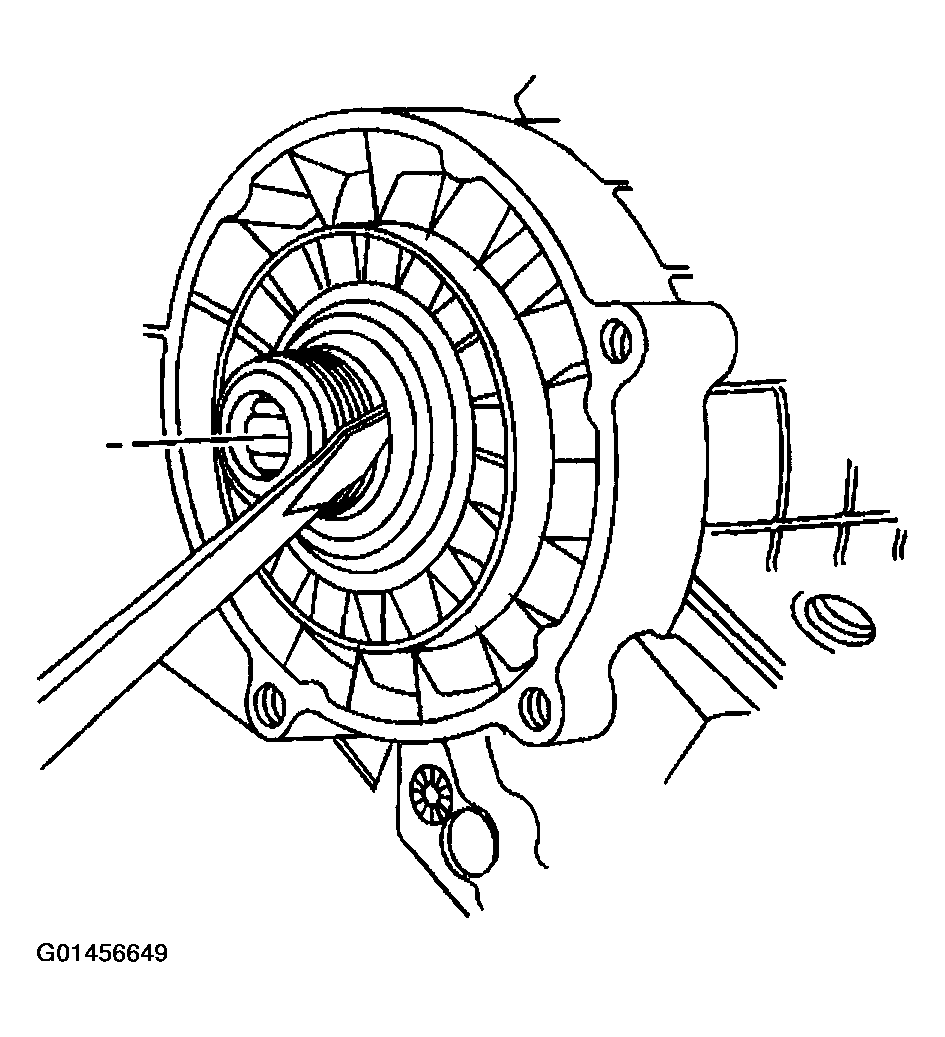

    Fig 1: Removing Input Shaft Seal Using Flat-Tipped Screwdriver
    G01456649Courtesy of GENERAL MOTORS CORP.
