Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Use only drain and fill plugs that are made from aluminum. Steel or brass plugs are not compatible with the magnesium case.

Install the drain plug.
Tighten

Tighten the plug to 20 N.m (15 lb ft).
Fill the transfer case to the bottom of the fill plug hole with Auto-Trak II, transfer case fluid, GM P/N 12378508 (Canadian P/N 10953626).

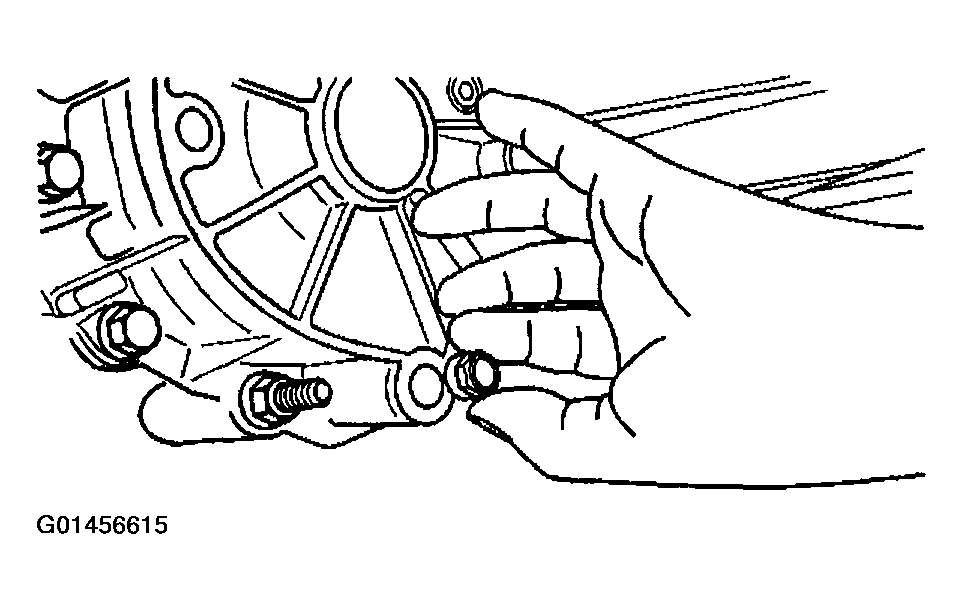

Fig 1: Installing Drain Plug
Courtesy of GENERAL MOTORS CORP.
Install the fill plug.
Tighten

Tighten the plug to 20 N.m (15 lb ft).
Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .
Lower the vehicle.

Fig 2: Installing Fill Plug
Courtesy of GENERAL MOTORS CORP.
